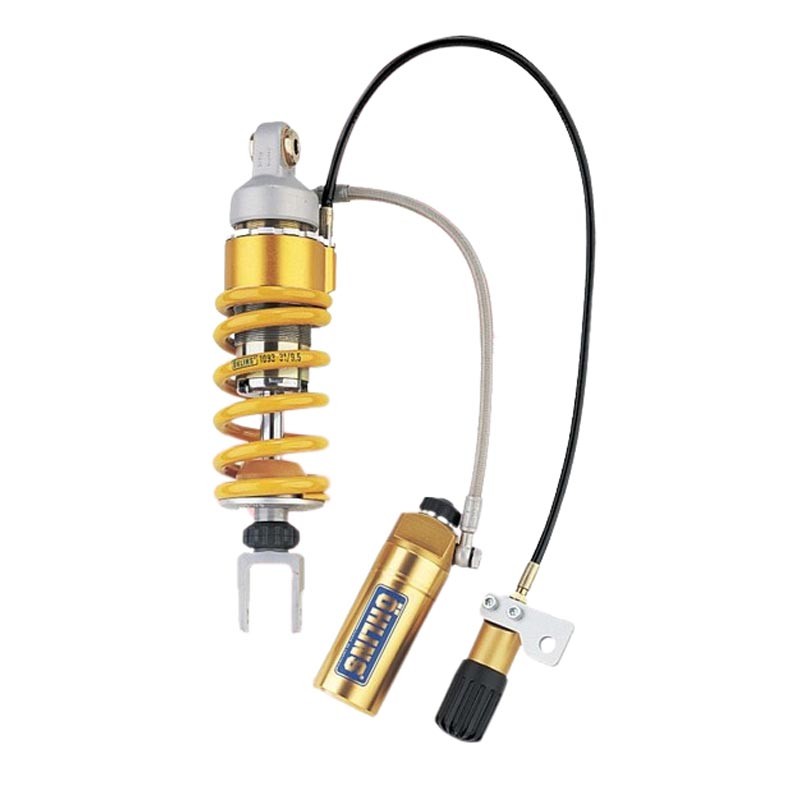

Öhlins STX 46 Street Shock Absorber XRV750 Africa Twin 1993-2002

Öhlins STX 46 Street Shock Absorber XRV750 Africa Twin 1993-2002

Data:
Type Code: S46PR1C1S
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 380 mm
Stroke: 90 mm
Rate N/mm: 85
Mounted spring: 01096-26
