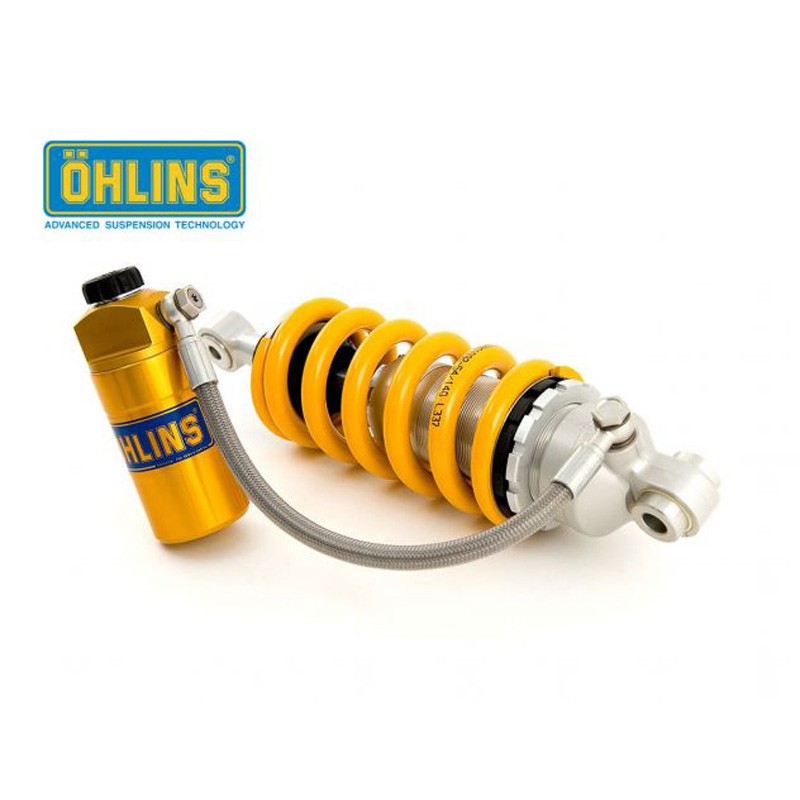

Öhlins STX 46 Adventure shock absorber G650X Challenge 2007-2009

Öhlins STX 46 Adventure shock absorber G650X Challenge 2007-2009

Data:

Type Code: S46HR1C1

S: Monotube shock absorber

46: Piston diameter: 46mm

H: Gas pressure damper with external reservoir and high-pressure hose connection

R1: Adjustable rebound damping on the monotube damper. Adjustment wheel above the end eyelet.

C1: Adjustable compression damping. Adjustment wheel or Allen key on the reservoir.

Technical data:

Length: 360 mm

Stroke: 89 mm

Rate N/mm: 110

Spring: 00698-39

Unlock the next level of performance for your BMW G650 X Challenge (2007-2009) with the Öhlins STX 46 Adventure shock absorber.

This monotube gas shock absorber is equipped with an external, hose-mounted reservoir that ensures optimum pressure equalization and temperature even under extreme conditions. Thanks to the adjustable rebound and compression damping, the shock absorber's behavior can be adapted to your riding habits.

The shock absorber is supplied with a tool for adjusting the preload. The tool supplied allows you to adjust weight changes to ensure correct steering geometry.
