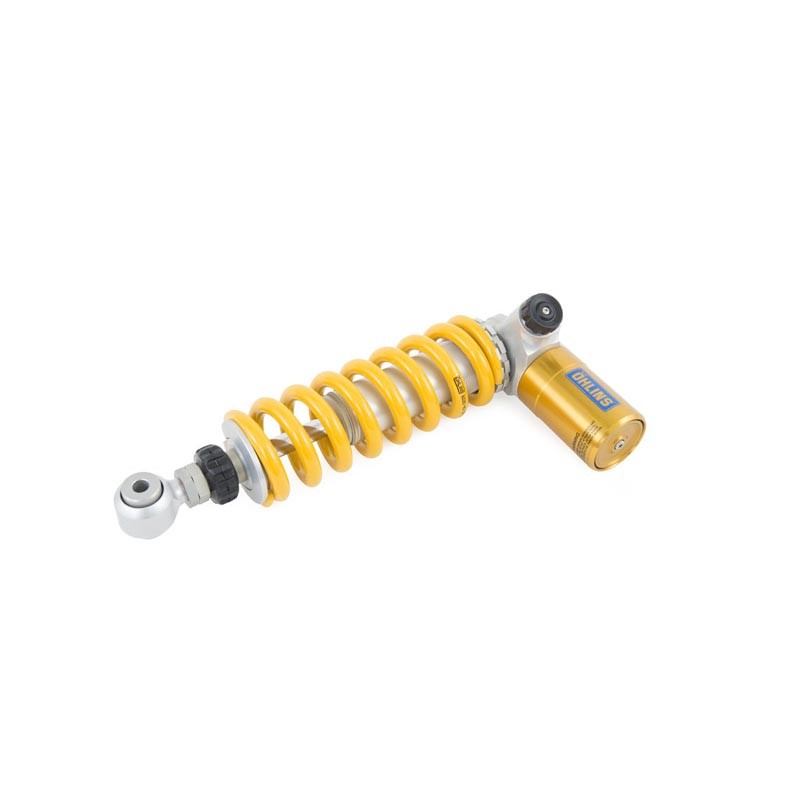

Öhlins STX 46 Supersport Shock Absorber CBR250RR 2017-2023

Öhlins STX 46 Supersport Shock Absorber CBR250RR 2017-2023

Data:
Type Code: S36PR1C1L
S: Single tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length: 319 +6/-0 mm
Stroke: 65 mm
Rate N/mm: 110
Position: rear
Mounted spring: 60295-xx
Packaging unit: pieces

Notes
WSSP300 race setting, optional stiffer springs 60293-41 (115 N/mm) and 60293-44 (120 N/mm) available.
