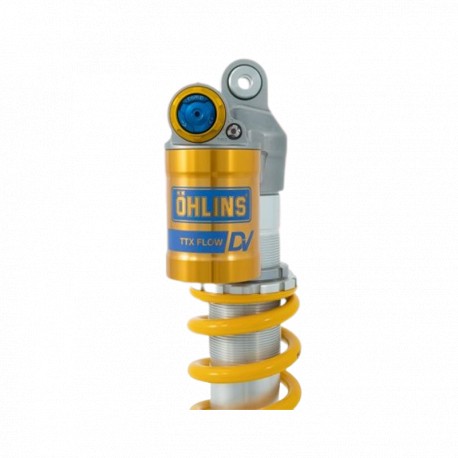

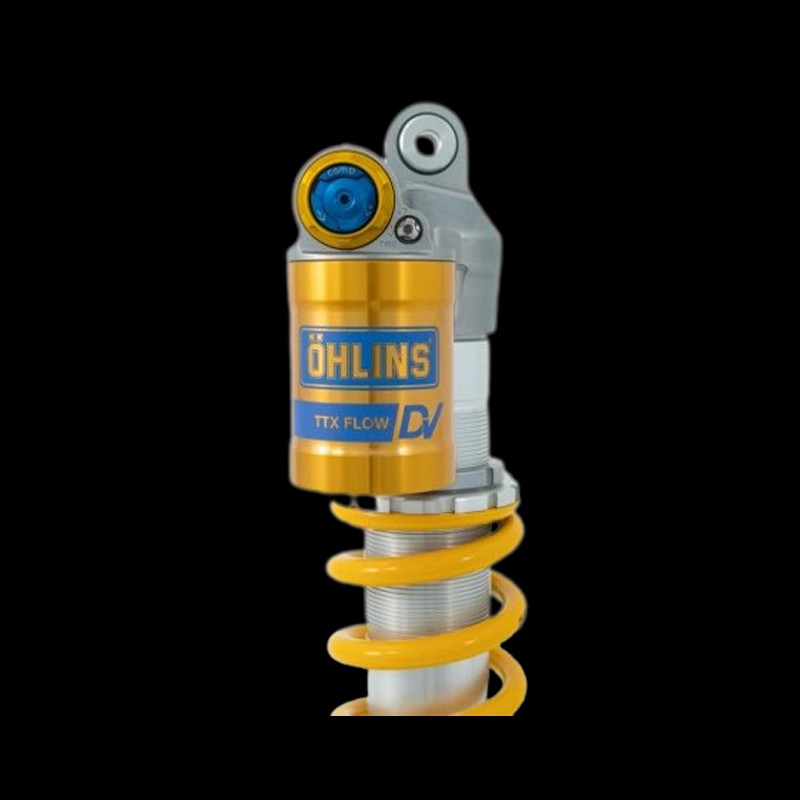

Öhlins TTX Flow DV MX & Enduro Shock Absorber FC450 2023- | 450 SX-F 2023-

Öhlins TTX Flow DV MX & Enduro Shock Absorber FC450 2023- | 450 SX-F 2023-

Data:

Type Code: T46PR1C2W

T: Twin-tube damper

46: Piston diameter: 46 mm

P: Gas-filled damper with fixed, external reservoir

W: Shock absorber without spring

(The spring is not included and must be ordered separately. Order number 06310)

R1 Flow: TTX Flow rebound adjuster

Technical specifications:

Length: 477 mm

Travel: 142 mm

Spring series: 06310-XX / 06451-XX

Oil recommendation: 01304-XX

Packaging unit: Single

Öhlins MX & Enduro shock absorbers are delivered without springs. The appropriate spring for the respective rider weight must be ordered separately. Information on the spring series and assistance in selecting the correct spring rate can be found in the shock absorber's technical specifications and in the installation instructions.
