I2M TPS/APS Interface GSXR1000 2017-2021

I2M TPS/APS Interface GSXR1000 2017-2021

On the GSXR 1000 2017-2020, there is no high-speed CAN-Bus communication bus.

Although TPS information is transmitted on the k-line, it is low-frequency diagnostic information.

To read the TPS, a cable must be connected between an analog input and the TPS sensor output (potentiometer).

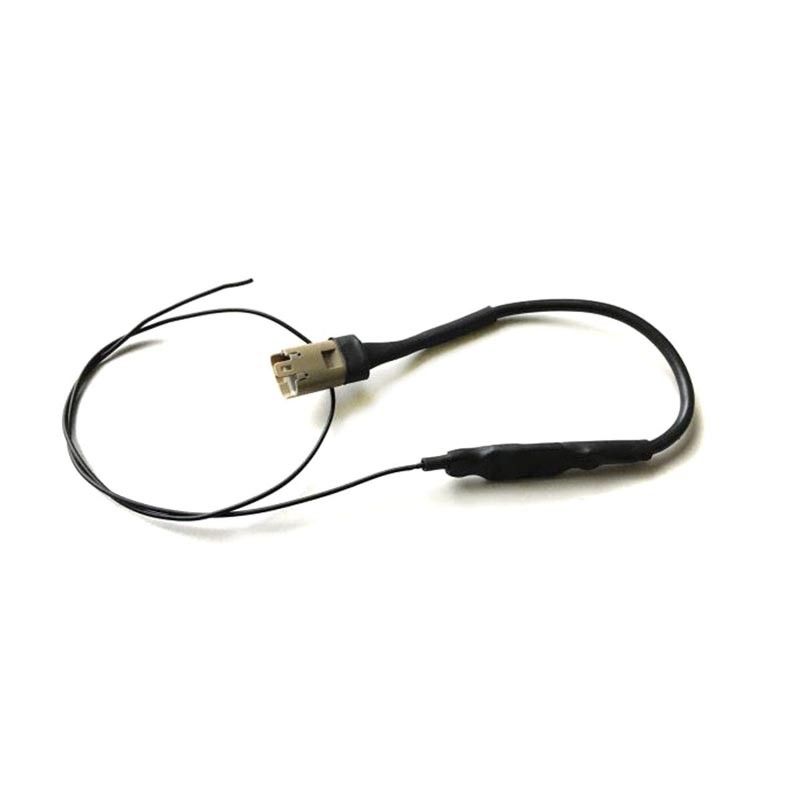

The analog reading can be affected by motion disturbances. After acquiring it at a high frequency (100Hz), it is possible to filter it through Danas for a cleaner display, or to use this interface, which contains 100kOhm-100nF analog RC filtering.
