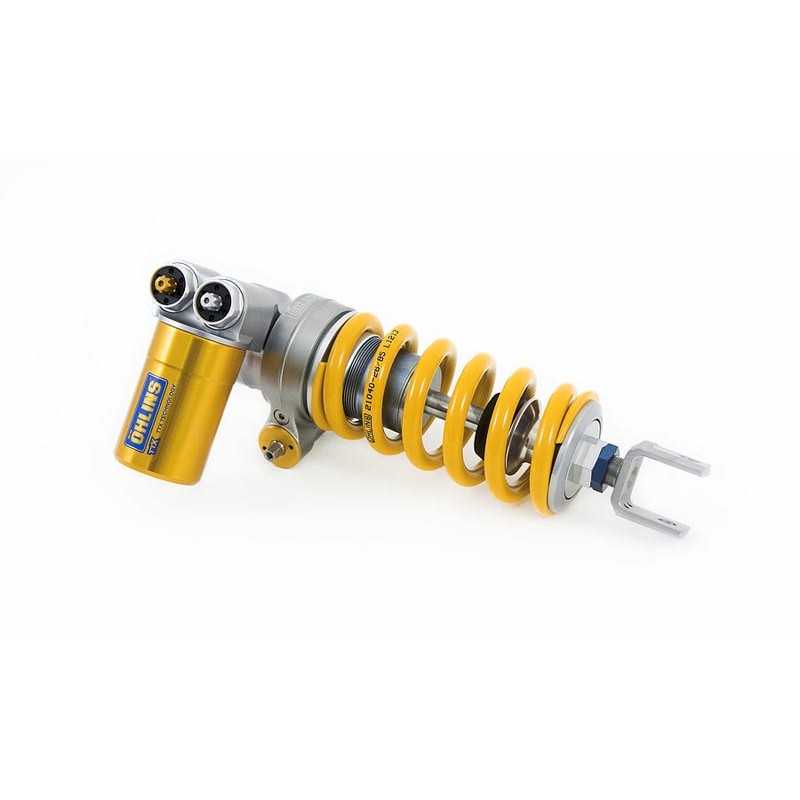

Öhlins TTX GP Shock Absorber XSR900GP 2024-2025

Öhlins TTX GP Shock Absorber XSR900GP 2024-2025

Daten:

Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 326 +4/-2 mm
Stroke: 62 mm
Rate N/mm: 110
Position: rear
Mounting position: Rear mono
Mounted spring: 21040-39
Spring series: 21040-xx
Mounting length min/max: 324 / 330
Packaging unit: pieces
