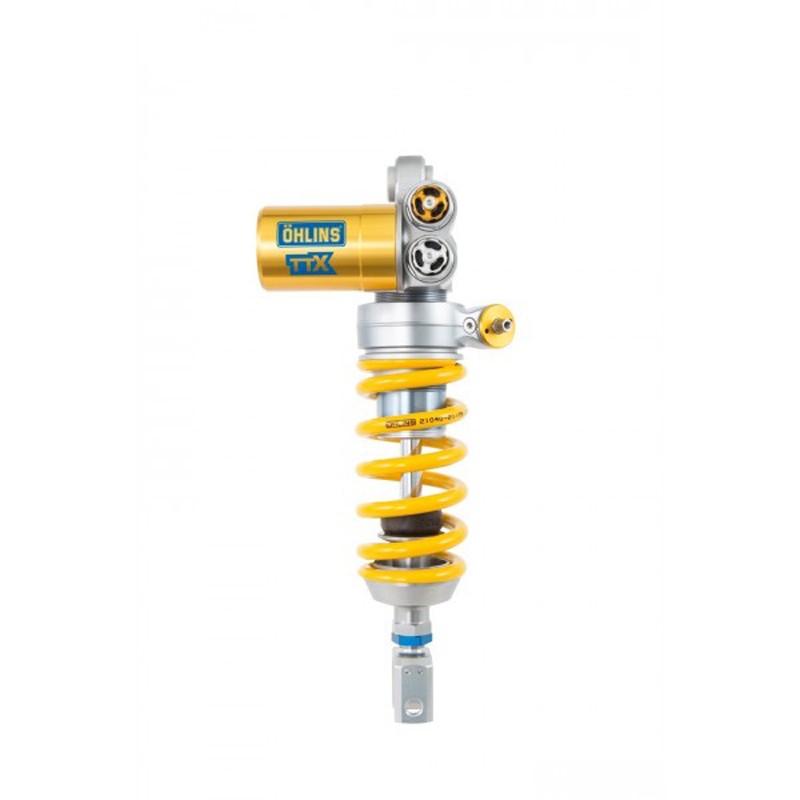

Öhlins rear shock absorber TTX GP S1000RR 2015-2018 | HP4 2013-2015

Öhlins rear shock absorber TTX GP S1000RR 2015-2018 | HP4 2013-2015

Data:

Type Code: T36PR1C1LB

S : Twin-tube damper

36 : Piston diameter: 36 mm

P : Gas pressure damper with fixed, external reservoir.

R1 : Adjustable rebound damping, black adjuster on TTX36 shock absorber / silver adjuster on TTX GP shock absorber.

L : Adjustable length

B: Integrated hydraulic spring preload adjuster.

Technical data:

Length: 353 +6/-0 mm

Stroke: 62 mmn

Rate N/mm: 85 N/mm

Position: Rear

Spring: 21040-26

Packaging unit: Single

Based on the prevailing technology of a motorcycle, its market price and the available space for our products, we develop shock absorbers that fit the respective machine. This applies to the price and the performance of the product. Each motorcycle is assigned a suitable shock absorber type. The basic set-up, the design of the shim package, and the adjustment range of the adjusters are developed, tested and finally determined through extensive testing on race tracks and in road traffic. Öhlins shock absorbers are the result of rigorous testing. Öhlins produces more than 300 shock absorber models. Each model has been customized for a specific vehicle. The concept behind every Öhlins product is by no means a secret: it is precision. Precision gives our products the perfect performance and is the key to success.
