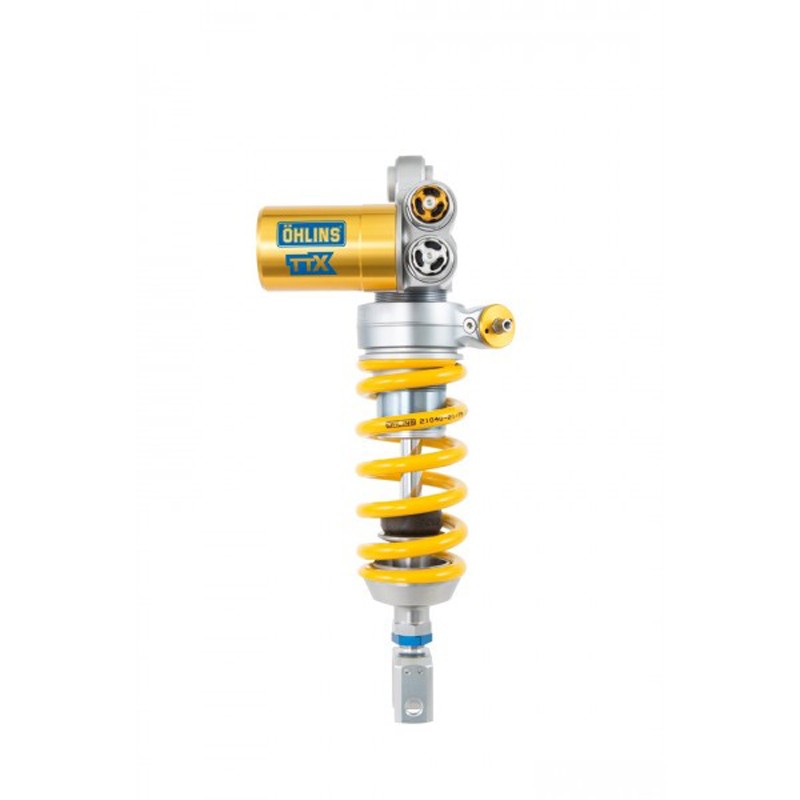

Öhlins TTX GP Shock Absorber CBR600RR 2007-2024

Öhlins TTX GP Shock Absorber CBR600RR 2007-2024

Data:
Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length:    295 +6/-0 mm
Rate N/mm: 95
Stroke:    60 mm
Mounted spring:    21040-31
Packaging unit:    pieces
