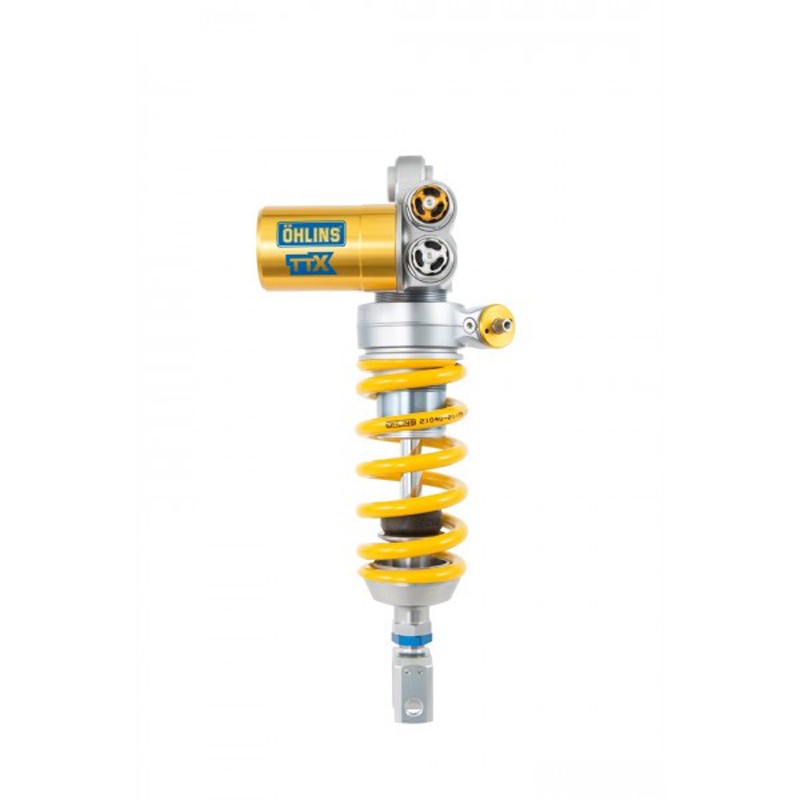

Öhlins TTX GP Shock Absorber CBR1000RR / SP 2017-2019

Öhlins TTX GP Shock Absorber CBR1000RR / SP 2017-2019

Data:
Type Code: T36PR1C1LB
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length
B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data:
Length:    302 +4/-2 mm
Rate N/mm: 105
Stroke:    60 mm
Mounted spring:    21040-36
Spring series:    21040-xx
Packaging unit:    pieces
