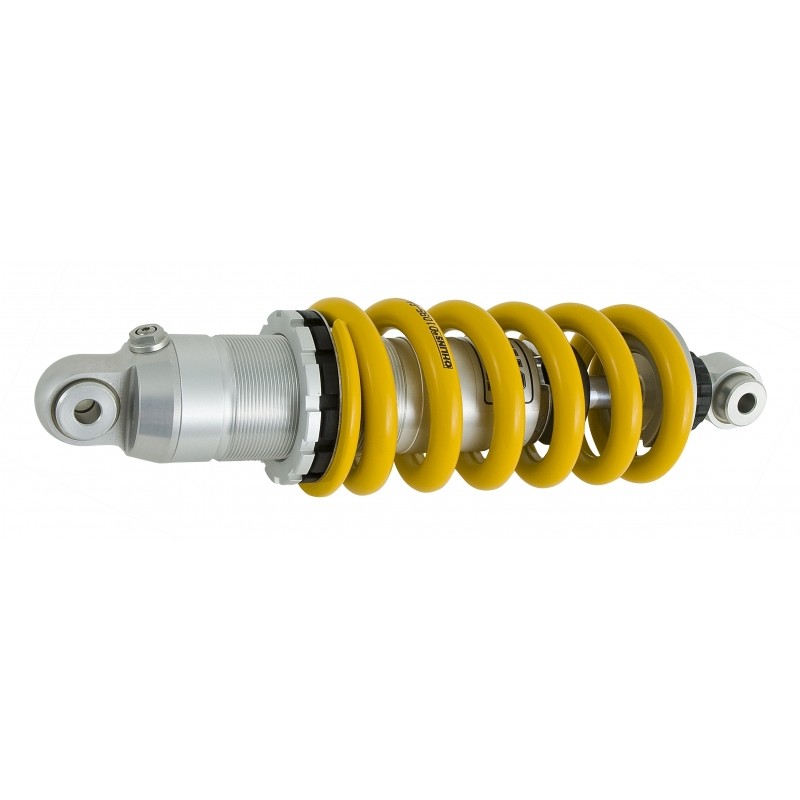

Öhlins Shock Absorber YA 797 for Yamaha Tmax 560 2019-2023

Öhlins Shock Absorber YA 797 for Yamaha Tmax 560 2019-2023

Photo not binding

Since winter 2010, ÖHLINS has been offering an affordable monotube shock based on the "S46DR1" model for many entry-level and naked bikes, such as the BMW F 800 series, Kawasaki ER-6 n/f, Honda CBF, Suzuki Bandit, or Yamaha FZ6. We call it the "Street Performance Line."
The continuously variable, wide-ranging spring preload and 30-way adjustable rebound damping allow for individual adjustment to almost all road and load conditions.

ÖHLINS also offers fork springs to match the shock absorber for the corresponding models. ÖHLINS offers a 6-year warranty.

Features:

Monotube gas-filled shock absorber with integrated reservoir
Continuously variable spring preload
Adjustable rebound damping on the monotube shock absorber. Adjustment wheel above the end eye.
Completely disassembled and easy to maintain.
Various spring rates available.
Hydraulic spring preload can be retrofitted.

Technical specifications:
Length: 326 mm
Stroke: 66 mm
Rate N/mm: 95 N/mm
Spring: 01096-31
