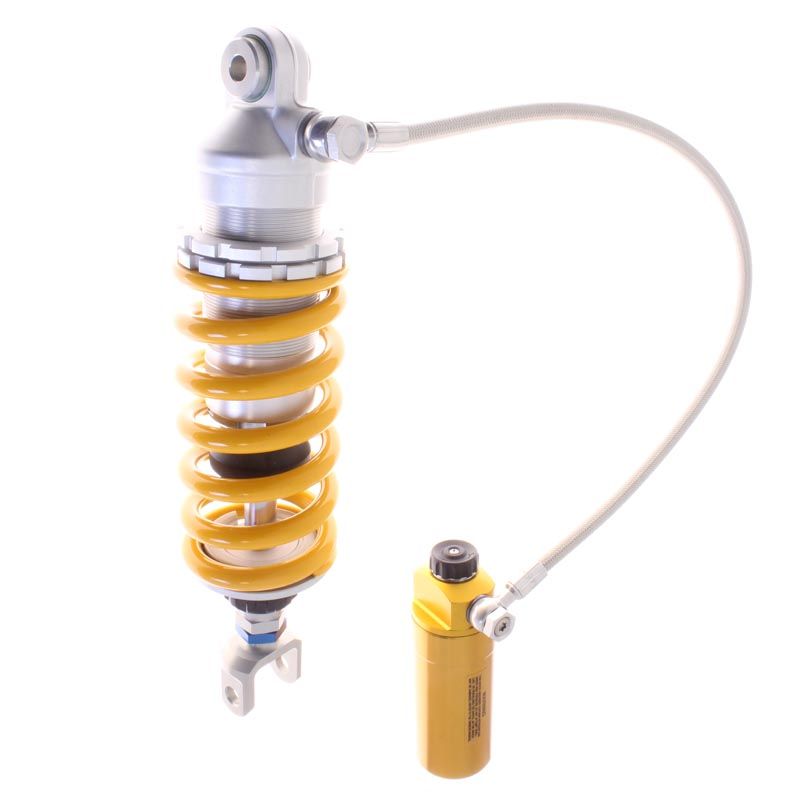

Öhlins Rear shock absorber STX46 RS 660 2020-2022 | TUONO 660 2021-2022

Öhlins Rear shock absorber STX46 RS 660 2020-2022 | TUONO 660 2021-2022

Technical data:
Length:    309 +0,5/-5,5 mm
Stroke:    51 mm
Rate N/mm:    160 N/mm
Position:    rear
Mounted spring:    01093-64
Packaging unit:    pieces

Type: S46HR1C1L

S: Single tube
46: Piston diameter (in mm)
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length.
