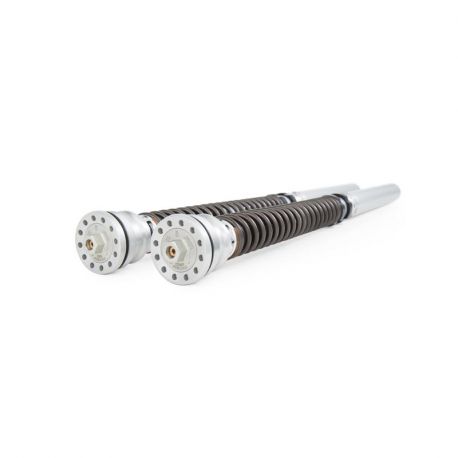

TTX 25 OHLINS cartridge kit R1 2020-2023 (with Ohlins fork FL 940,942,943)

TTX 25 OHLINS cartridge kit R1 2020-2023 (with Ohlins fork FL 940,942,943)

TTX 25 RACING - LIMITED EDITION

Straight from the öhlins factory racing department, the TTX 25 cartridge kit is the first to use twin-tube shock absorber technology. This pressurised, totally self-contained kit has a 25mm main piston. Like the NIX 30, compression and rebound are completely separate, with one compression strut and one rebound strut.

- TTX 25 pressurised system

- compression (left leg) rebound (right leg) and spring preload adjustment

Technical data

The racing inspired FKR cartridge kit has technology derived straight from the Moto3, Moto 2 and World Superbike championships developed by our engineers in Sweden and is designed for high end racing.

The FKR Cartridge kit features a spring pressurized system, compared to the old gas pressurized system, the spring pressure offers a more simplistic and user friendly design that also accounts for easier maintenance. But there are more advantages of a spring pressurized system.

There is no risk of gas leakage, it also gives a more consistent performance curve and allows for a more compact design. With the Öhlins TTX technology, a new designed piston and an 8mm piston shaft we reduce the pressure build-up and create a faster damping response.

That gives a “linear” style of damping characteristics which create more tuning options and also increases grip and bump absorption properties while improving chassis stability.
