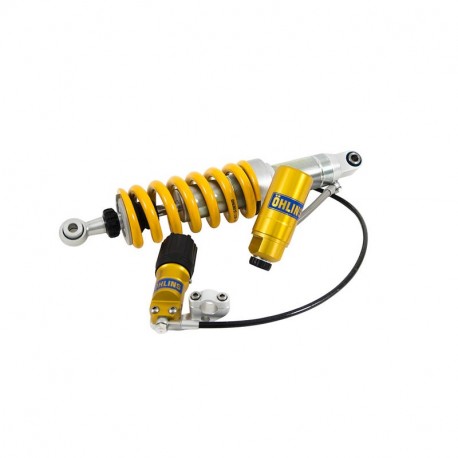

Öhlins STX 46 Street Shock Absorber FJR1300 2006-2012

Öhlins STX 46 Street Shock Absorber FJR1300 2006-2012

Data

Type Code: S46HR1C1S
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 326,5 mm
Stroke: 62,5 mm
Rate N/mm: 130
Mounted spring: 01092-49
Packaging unit: pieces
