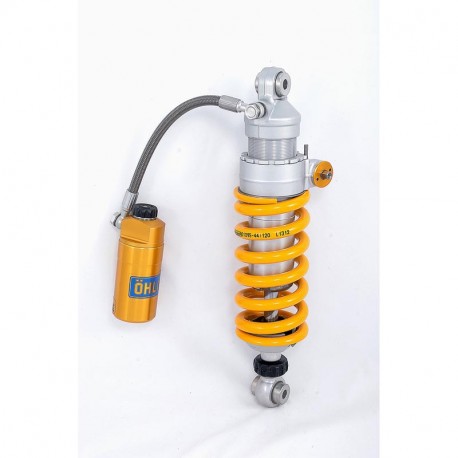

Öhlins STX 46 Supersport Shock Absorber RC 390 2015-2021

Öhlins STX 46 Supersport Shock Absorber RC 390 2015-2021

Data:
Type Code: S46HR1C1L
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length:    300 +9/-3 mm
Rate N/mm: 105
Stroke:    63 mm
Mounted spring:    61091-36
Packaging unit:    pieces
Position:    rear
