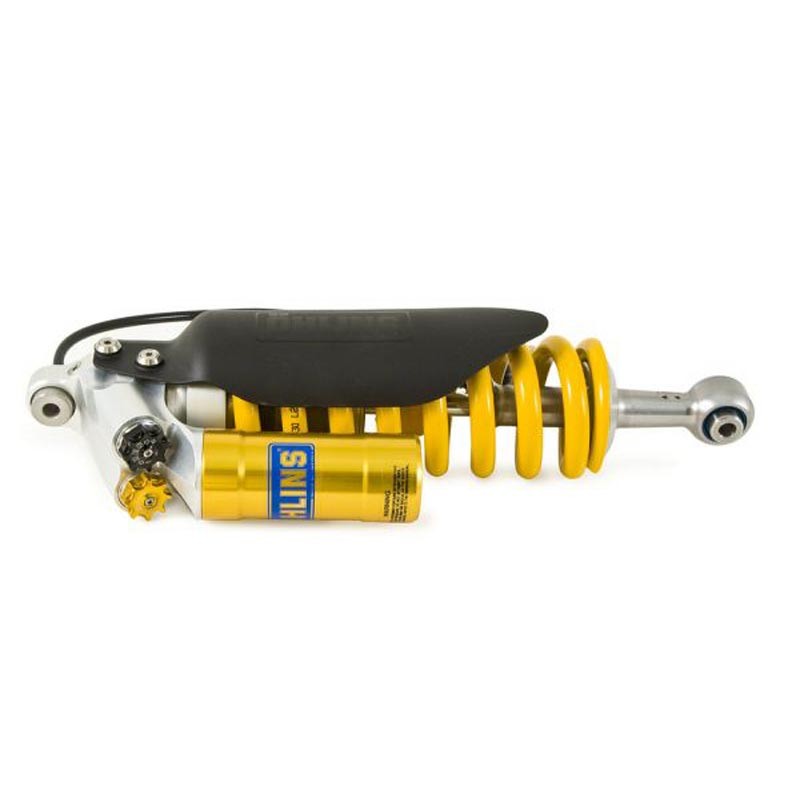

Öhlins TTX RT Shock Absorber Super Duke 1290R 2014-2019

Öhlins TTX RT Shock Absorber Super Duke 1290R 2014-2019

Data:

Type Code: T36PR1C1B
T: Twin tube
39: Piston diameter: 39 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data
Length:    384 mm
Stroke:    58 mm
Rate N/mm:    170 N/mm
Position:    rear
Mounted spring:    21040-44
Packaging unit:    pieces
