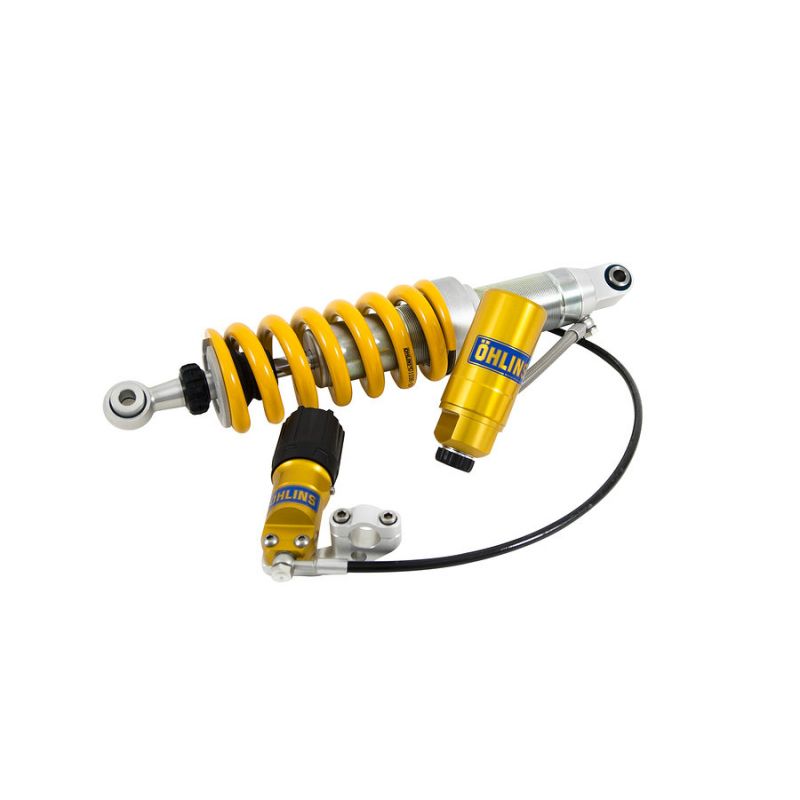

Öhlins STX 46 Street Shock Absorber CB1000R 2008-2014

Öhlins STX 46 Street Shock Absorber CB1000R 2008-2014

Data:
Type Code: S46HR1C1S
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 309,5 mm
Stroke: 47,5 mm
Rate N/mm: 160
Position: rear
Mounted spring: 01093-64
