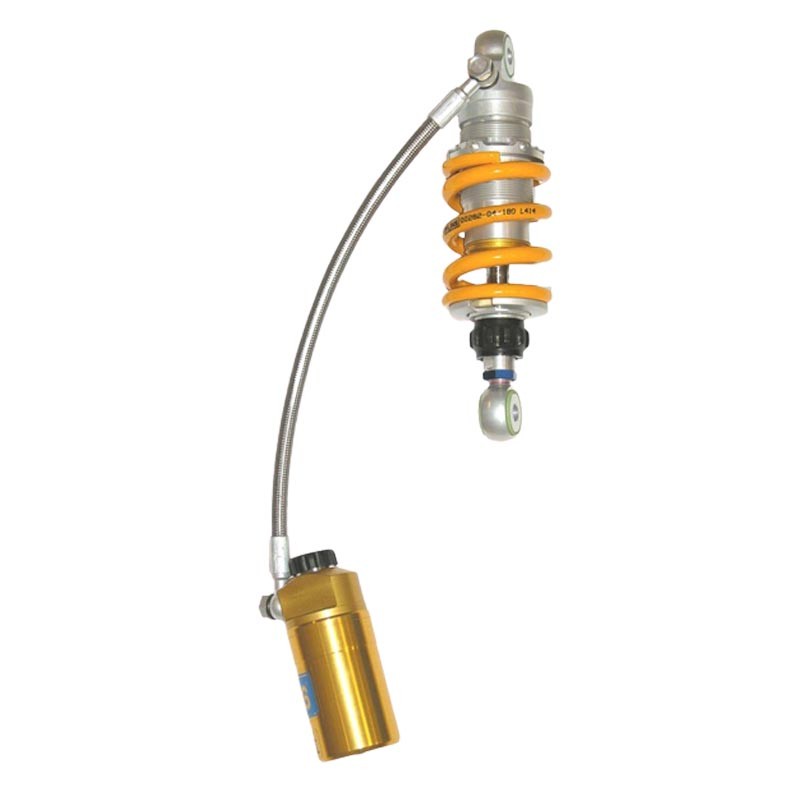

Öhlins STX 36 Supersport Shock Absorber Ninja 250R 2013-2018 | 300 2013-2017

Öhlins STX 36 Supersport Shock Absorber Ninja 250R 2013-2018 | 300 2013-2017

Data:
Type Code: S36PR1C1L
S: Single tube
36: Piston diameter: 36 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length:    320mm +6-/2 mm
Stroke:    63 mm
Rate N/mm:  80 N/mm
Position:    rear
Mounted spring:    00281-57
