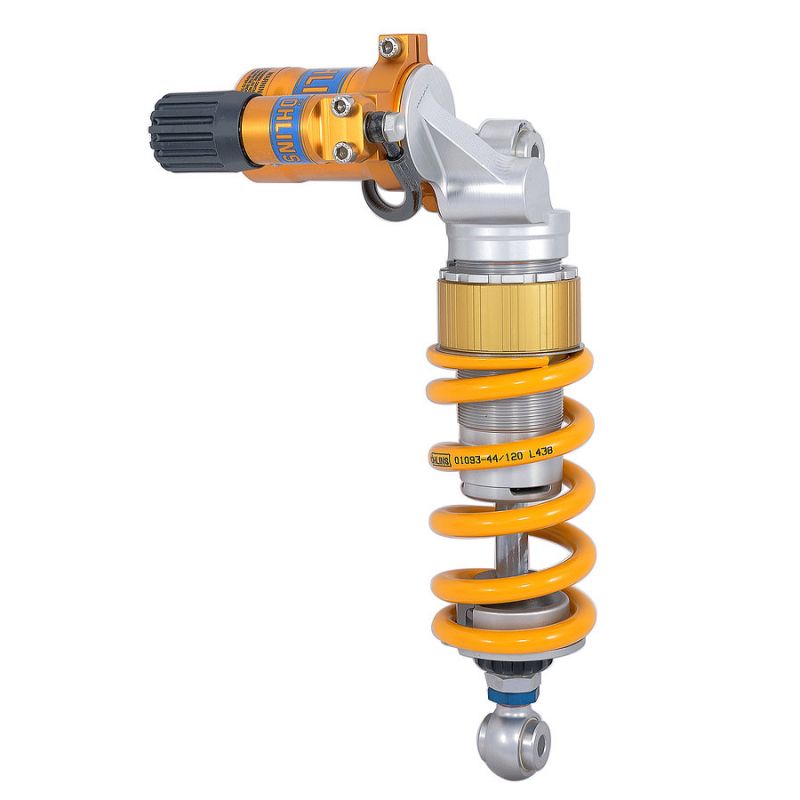

Öhlins STX 46 Supersport Shock Absorber VTR 1000 SP2 2002-2006 | VTR 1000 SP1 2001 | RVT1000R 2002-2006

Öhlins STX 46 Supersport Shock Absorber RC 390 2015-2021

Data:
Type Code: S46PR1C2LS
S: Single tube
46: Piston diameter: 46 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length:    326 +10/-2 mm
Rate N/mm: 90
Stroke:    63 mm
Mounted spring:    01092-29
