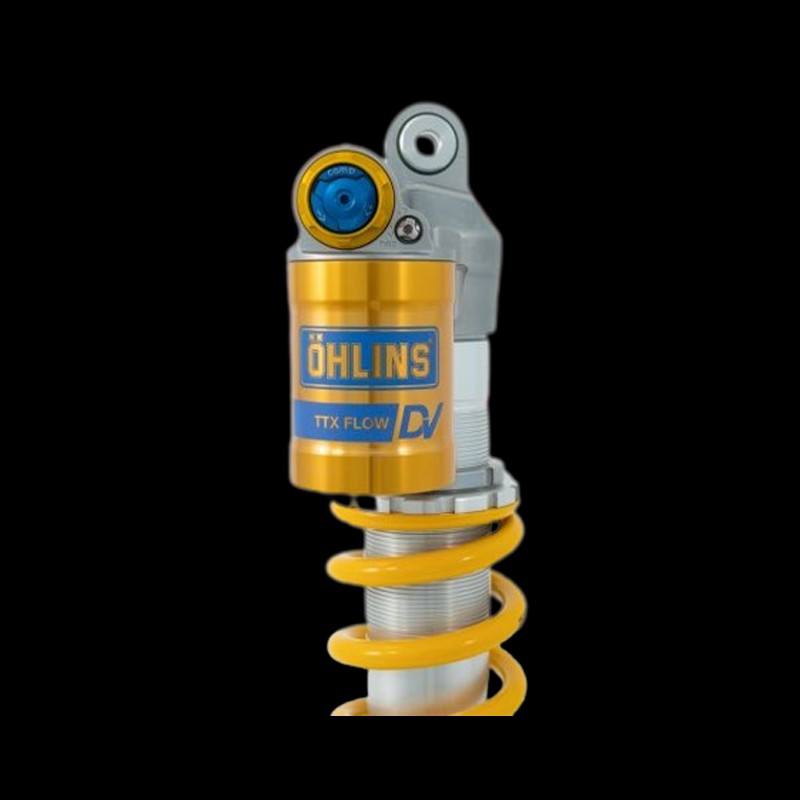

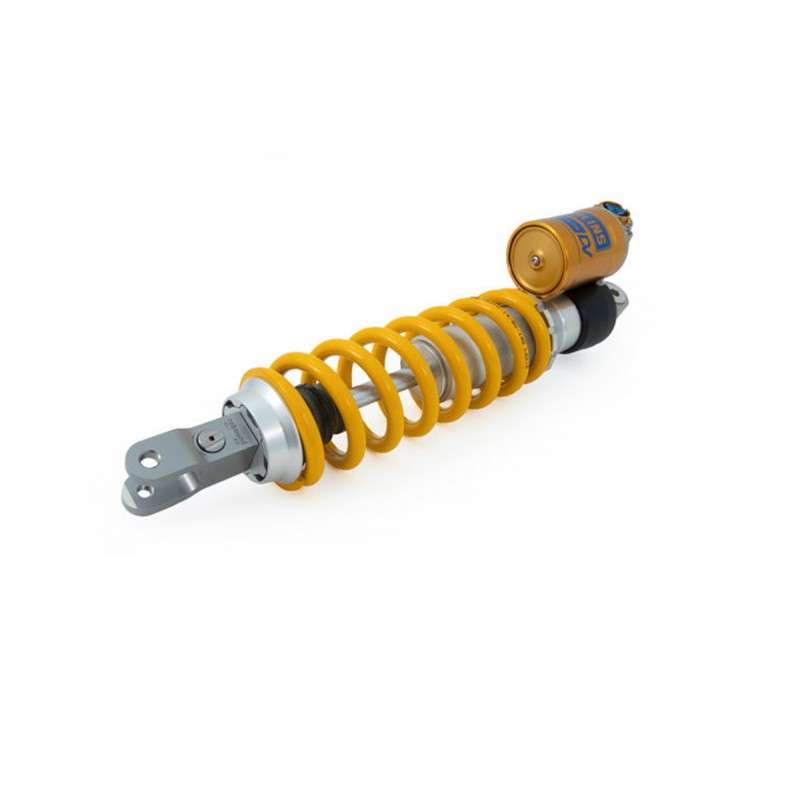

Öhlins TTX Flow DV MX & Enduro Shock Absorber

Öhlins TTX Flow DV MX & Enduro Shock Absorber

Data:

Type Code: T46PR1C2W

T: Twin-tube damper

46: Piston diameter: 46 mm

P: Gas-filled damper with fixed, external reservoir

W: Shock absorber without spring

(The spring is not included and must be ordered separately. Order number 06310)

R1 Flow: TTX Flow rebound adjuster

Technical Specifications:

Length: 477 mm

Travel: 142 mm

Position: Rear

Spring Series: 06310-xx

Oil Recommendation: 01304-XX

Packaging Unit: Single

Öhlins MX & Enduro shock absorbers are delivered without springs. The appropriate spring for the respective rider weight must be ordered separately. Information on the spring series and assistance in selecting the correct spring rate can be found in the technical details of the shock absorber and in the installation instructions.
