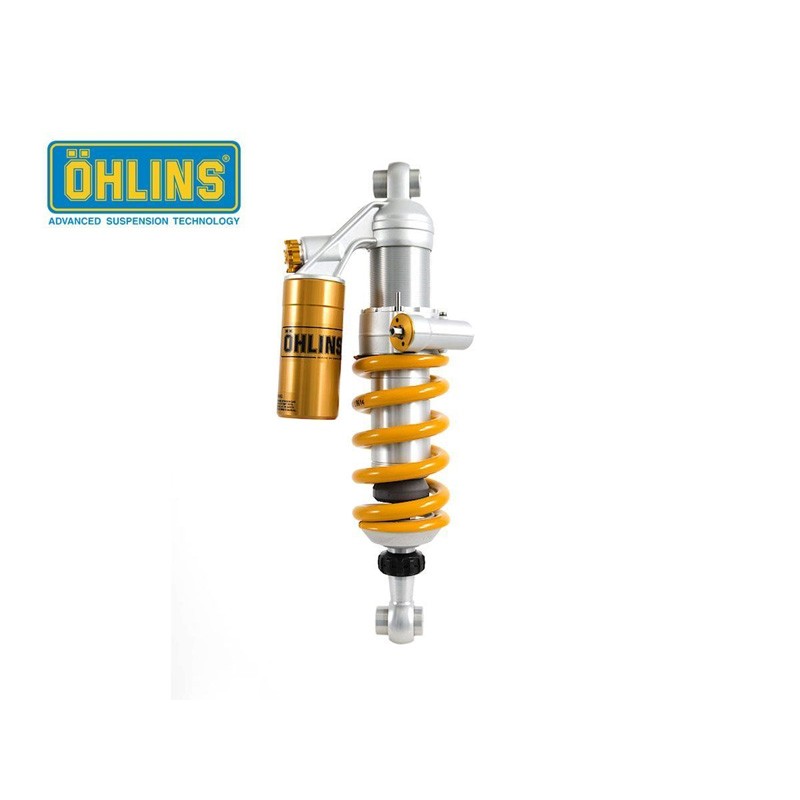

Öhlins STX 46 Street shock absorber R1200 Nine T Scrambler/Urban G/S 2021-2023

Öhlins STX 46 Street shock absorber R1200 Nine T Scrambler/Urban G/S 2021-2023

Data:

Type Code: S46PR1C1LB

S: Monotube shock absorber

46: Piston diameter: 46 mm

D: Gas pressure monotube damper with reservoir integrated in the housing

C1: Adjustable compression damping. Adjustment wheel or Allen key on the reservoir

R1: Adjustable rebound damping on monotube damper, adjustment wheel above the end eyelet.

L: Adjustable length.

B: Integrated hydraulic spring preload adjuster

Technical data:

Length: 374 +7/-5 mm

Stroke: 52.5 mm

Rate N/mm: 160

Position: Rear

Spring: 01092-64

Installation length min/max: 369mm / 381mm

Mounting position: Rear mono

The proven STX 46 Street from Öhlins is the perfect upgrade for sporty street bikes. This gas pressure shock absorber with separating piston and an internal gas reservoir has a main piston with a diameter of 46 mm. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment and adjustable rebound damping.

The STX46 Street shock absorber for the BMW R nineT Scrambler and R nineT Urban G/S 2021-2023 has a large 46 mm main piston and is available with an internal gas reservoir in the main shock absorber body or an external reservoir mounted by hose or piggyback.

Thanks to the adjustable damping, you can customize the shock to your needs and even mount a hydraulic spring preload to adjust the position of your bike.
