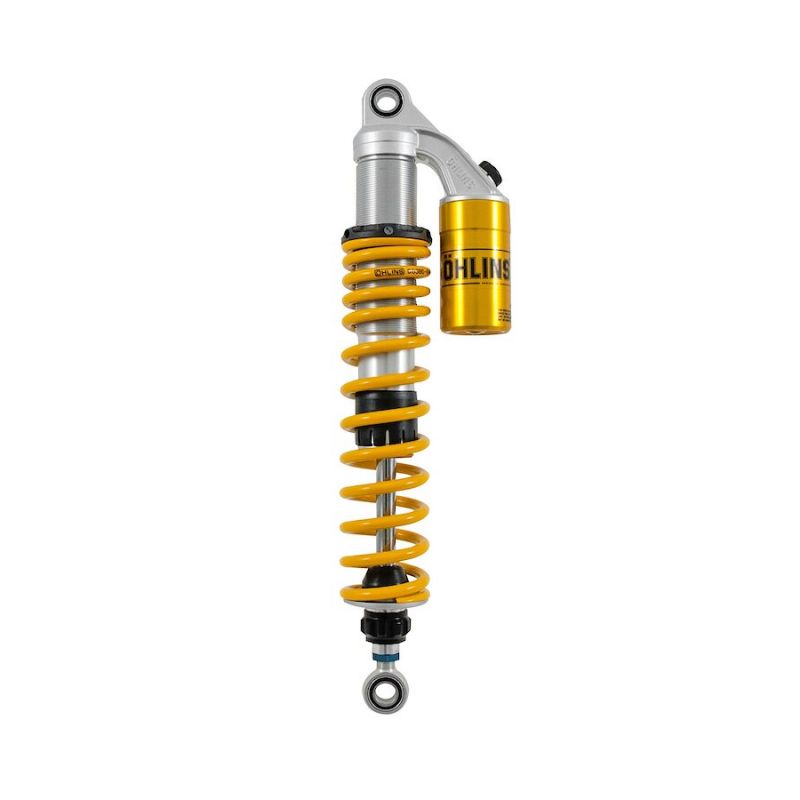

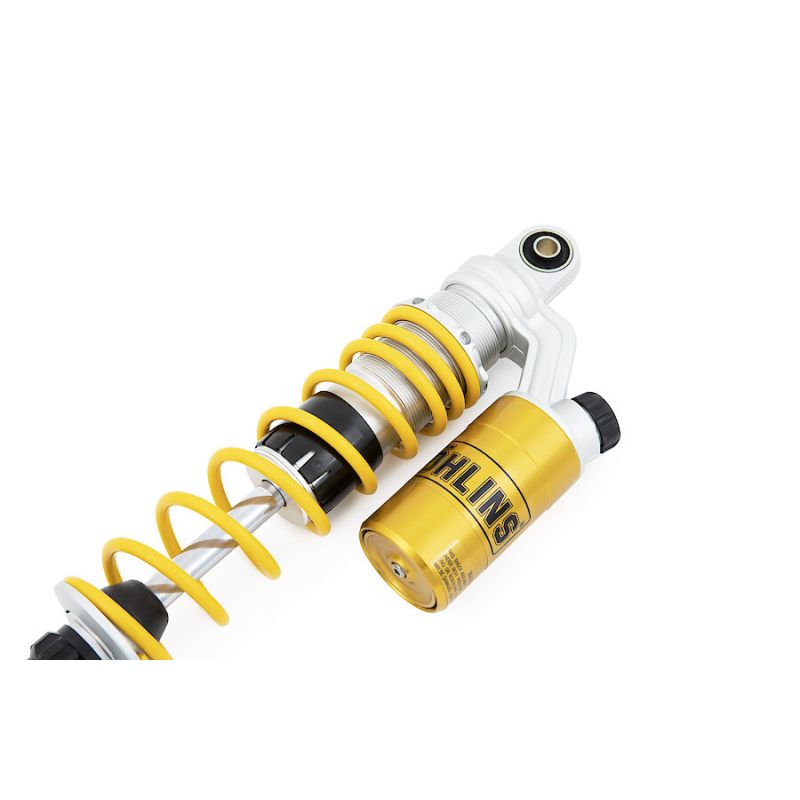

Öhlins STX 36 Scooter Shock Absorber Monkey MSZ 125 2018-2023

Öhlins STX 36 Scooter Shock Absorber Monkey MSZ 125 2018-2023

Data:
Type Code: S36PR1C1L
S: Single tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length: 334 +9/-1 mm
Stroke: 93 mm
Rate N/mm: prog. 11-15
Position: rear
Mounted spring: 60360-01
Spring series: 60360-xx
Packaging unit: pair

Notes

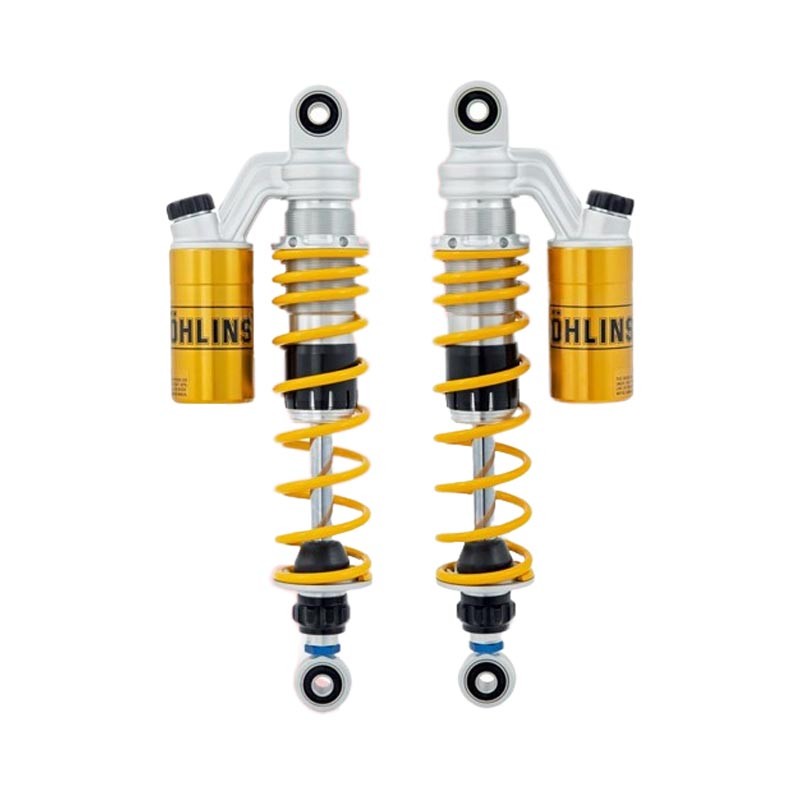

1 set of shock absorbers (left and right) with yellow springs. Additional you will find a set of stiffer springs 60360-02 (12-19N/mm) as an option for rider's over 80kg (including riding gear) in the box.
