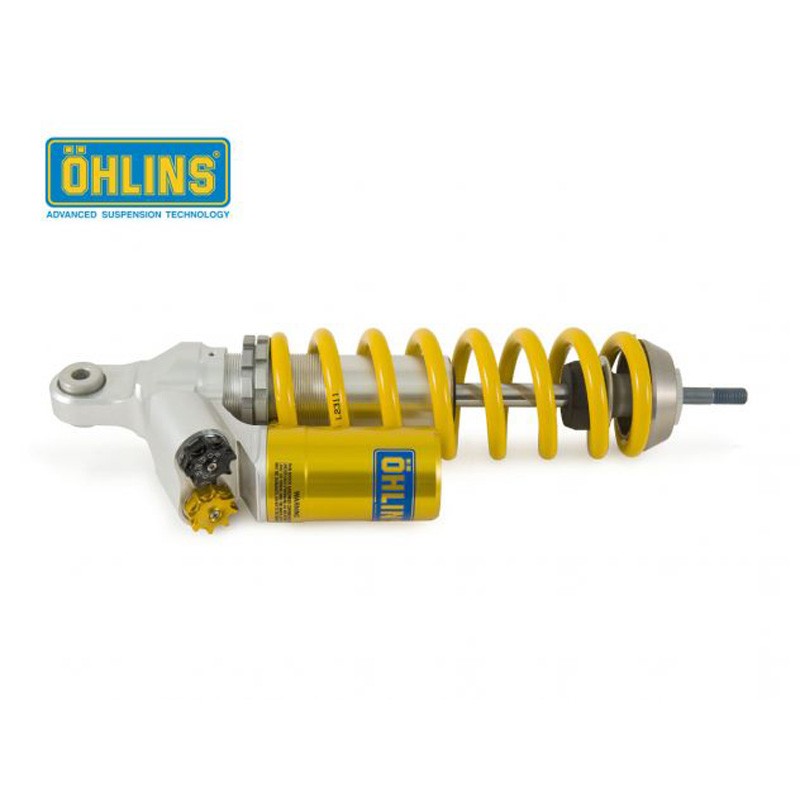

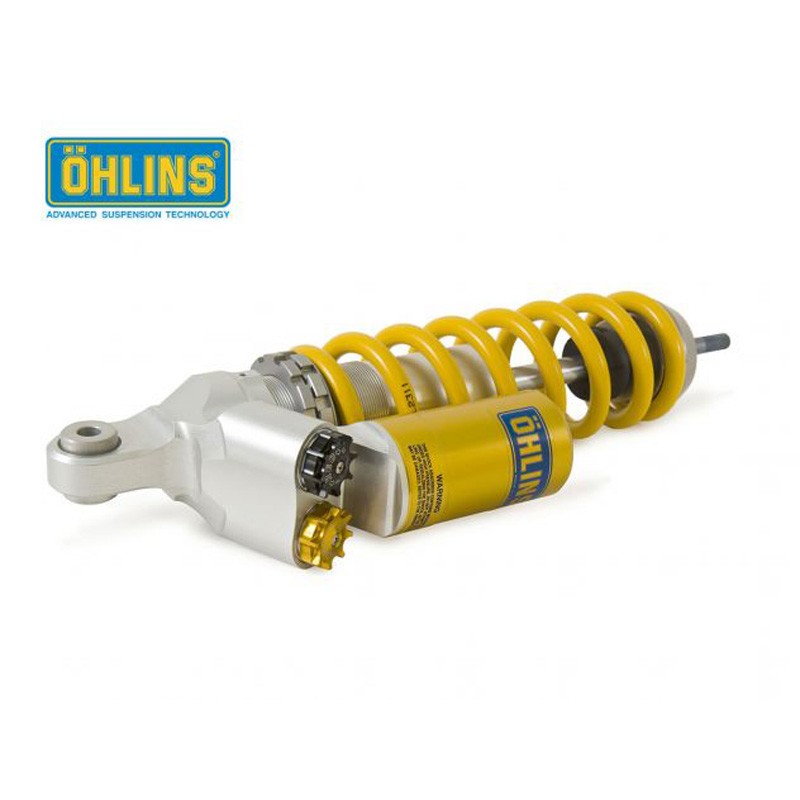

Öhlins TTX RT Shock Absorber R1200 Adventure / ESA / Rallye 2014-2018 | R1250 GS Adventure 2019-2024

Öhlins TTX RT Shock Absorber R1200 Adventure / ESA / Rallye 2014-2018 | R1250 GS Adventure 2019-2024

Data

Type Code: T36PR1C1

T: Twin-tube damper

36: Piston diameter: 36 mm

P: Gas pressure damper with fixed, external reservoir

R1: Adjustable rebound damping. Black adjuster on TTX36 shock absorber / silver adjuster on TTX GP shock absorber

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shock absorber

Technical data

Length: 399 mm

Stroke: 97.5 mm

Rate N/mm: 62

Position: Front

Spring: 21067-15

Spring series: 21067-xx

Packaging unit: Single

Note: On ESA models, a warning light is triggered in the display. This does not affect performance.

Cavitation is devastating for a shock absorber because it means a loss of damping and therefore something you definitely do not want to experience in your shock absorber. The small bubbles created in the oil during cavitation can never support the desired damping characteristics of your shock absorber.

Traditionally designed shocks can easily fall victim to cavitation under extreme conditions due to the low pressure behind the piston.

The TTX system was designed by Öhlins development engineers to eliminate the risk of cavitation in the shock absorber. The plan worked. Thanks to the sophisticated pressure balance of the TTX technology, the risk of cavitation was eliminated from the shock absorber.

The “TT” stands for “Twin Tube”, i.e. the two-tube design, while the “X” in the designation indicates the direction of flow or the arrangement of the valves in the cylinder.
