I2M Dashboard with GPS timer/gear indicator and data analysis

I2M Dashboard with GPS timer/gear indicator and data analysis

Commonly used in STK, SBK, etc.

- This dashboard includes all the functions of your original dashboard.

It also offers an on-board GPS timer.

Box contents:

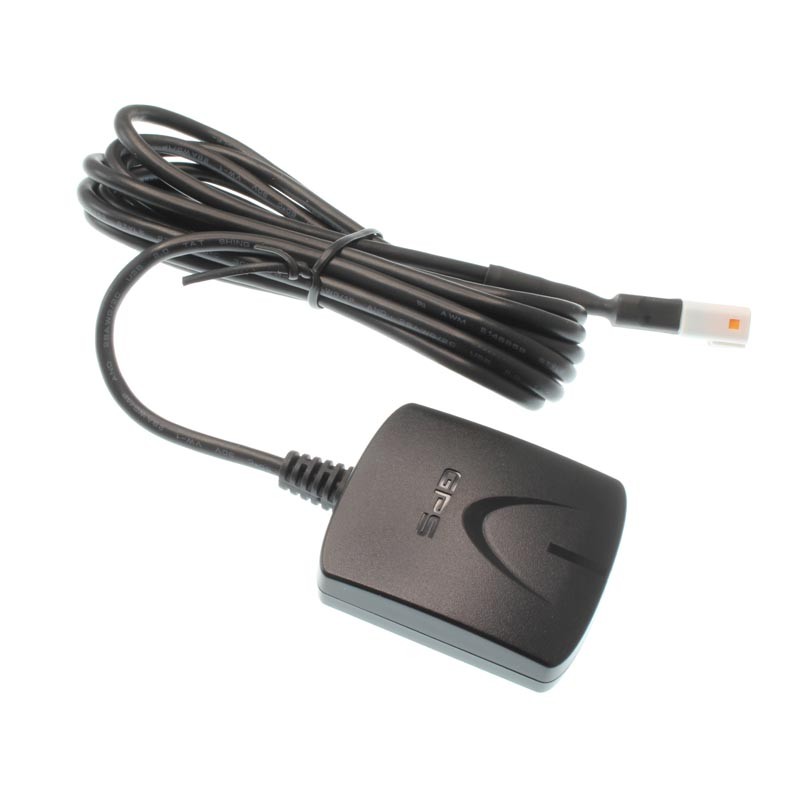

• Chrome dashboard + GPS antenna

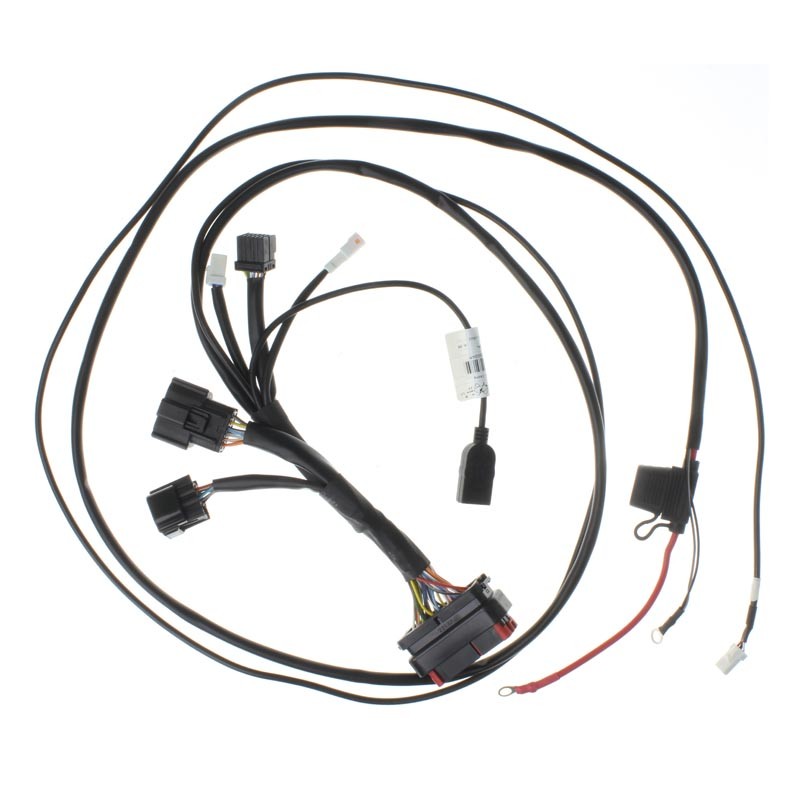

• Standard wiring harness with GPS input and USB output

Features:

- 800x480 colour graphic display

- Very high visibility even in direct sunlight

- 1 GHz processor with 1 GB of RAM and 16 GB of internal memory

- Billet aluminium case

- 10 Hz GPS trajectory and speed detection with 66 parallel channels

- Stopwatch with 20 preset circuits, 500 laps per circuit

- Automatic circuit recognition, with 4 sectors

- Calculation of best lap, ideal lap, historical maximum values and current day

- 11 fully configurable high-brightness alarms

- 8 10-bit analogue inputs (on motorcycles equipped with CAN bus)

- 1 input per minute

- Separate inputs for water, petrol and oil with fully dedicated alarms

- Data download via USB key or WiFi connection

- 128 CAN BUS channels

- Internal memory storage, 16 GB of data

- Integrated lambda probe controller

- Waterproof

20 circuits can be recorded on your dashboard. You can retrieve all the data on your PC (time, speed, number of laps, engine speed, throttle opening, gear engaged, trajectories, etc.).

The dashboard has one configuration for road use and another for track use.

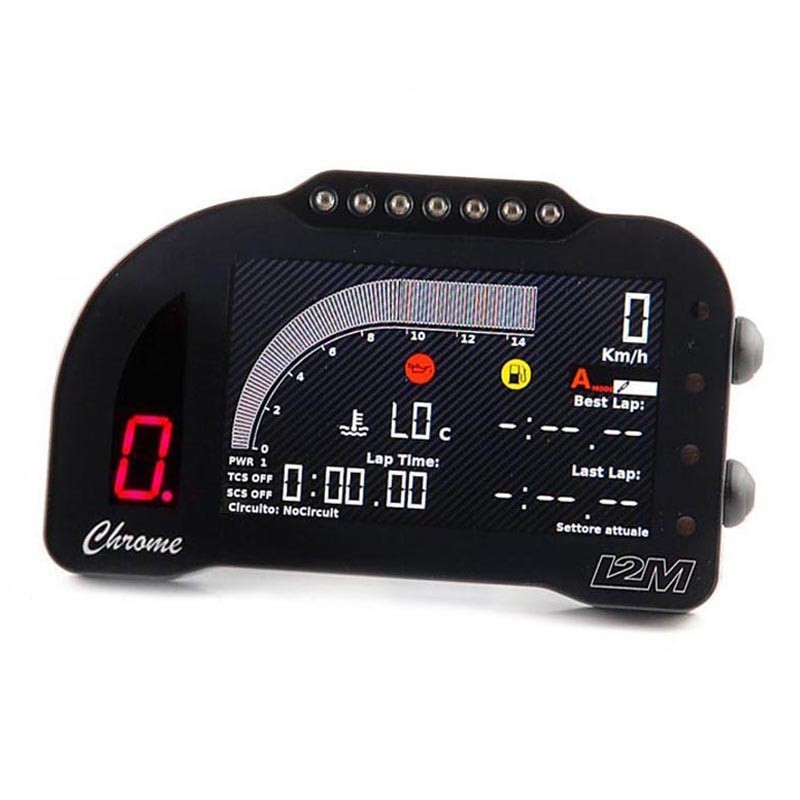

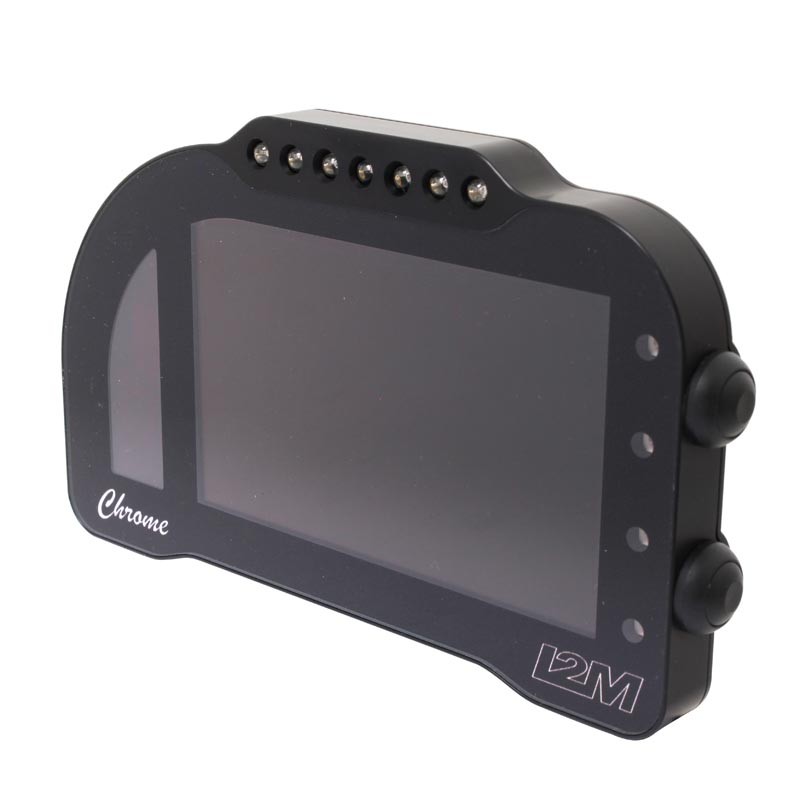

The Chrome dashboard represents a real innovation in the field of motorcycle dashboards.

Thanks to the combination of an 800 x 480 colour display and a 400 MHz processor, Chrome is able to provide total flexibility for the designer and therefore the end user.

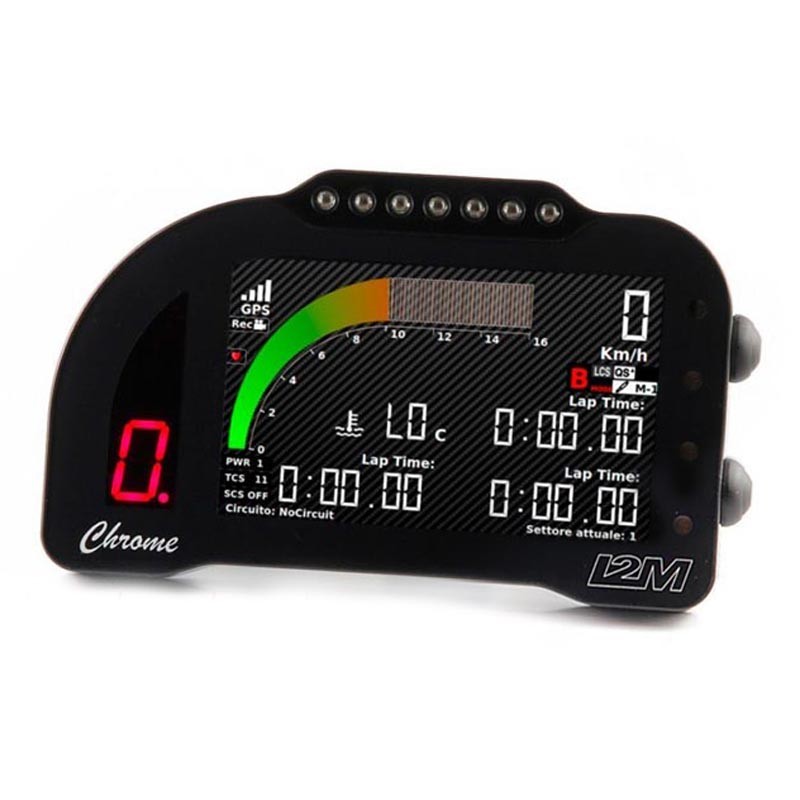

This new technology allows you to design a main screen suitable for road or racing use, leaving the right amount of space for each indicator.

Chrome combines dashboard, stopwatch, and data acquisition functions.

Using the menu: it is possible to choose between 20 pre-recorded circuits (which can be modified with simple import/export functions via a USB flash drive).

Chrome ermöglicht die Erfassung von Positions- und Geschwindigkeitsdaten mithilfe eines 10-Hz-GPS, aber auch das Auslesen der Drehzahl, der 8 externen analogen Kanäle vorne und hinten sowie der Geschwindigkeit. Die Datenerfassung ermöglicht es dem Benutzer, bis zu 20 GB Daten zu speichern, und die Abtastrate von bis zu 100 Hz pro Kanal kann allen Anforderungen gerecht werden.

Über ein praktisches Menü können die gewünschten Sitzungen nach Rennstrecke und Datum ausgewählt und gelöscht oder zur Analyse mit der PC-Software Danas auf einen USB-Stick übertragen werden, wodurch sich die Downloadzeit erheblich verkürzt.
