I2M Chrome Plus2 Dashboard and Lap Timer with Plug & Play Adapter R6 2017-2021

I2M Chrome Plus2 Dashboard and Lap Timer with Plug & Play Adapter R6 2017-2021

Chrome PRO 2: without compromise
The Chrome Pro 2 represents the maximum evolution of the Chrome system. Designed for those who want the most from their electronics, joins the features of the Chrome Plus with a new can bus system with acquisition of over 150 channels, integrated WiFi and Bluetooth connections, complete configurability and much more. Developed from the experience gained from the collaboration with Yamaha in the WSBK, it is now available for everyone.

Chrome Pro 2
- Antenna with 90-degree SMA joint for TPMS receiver

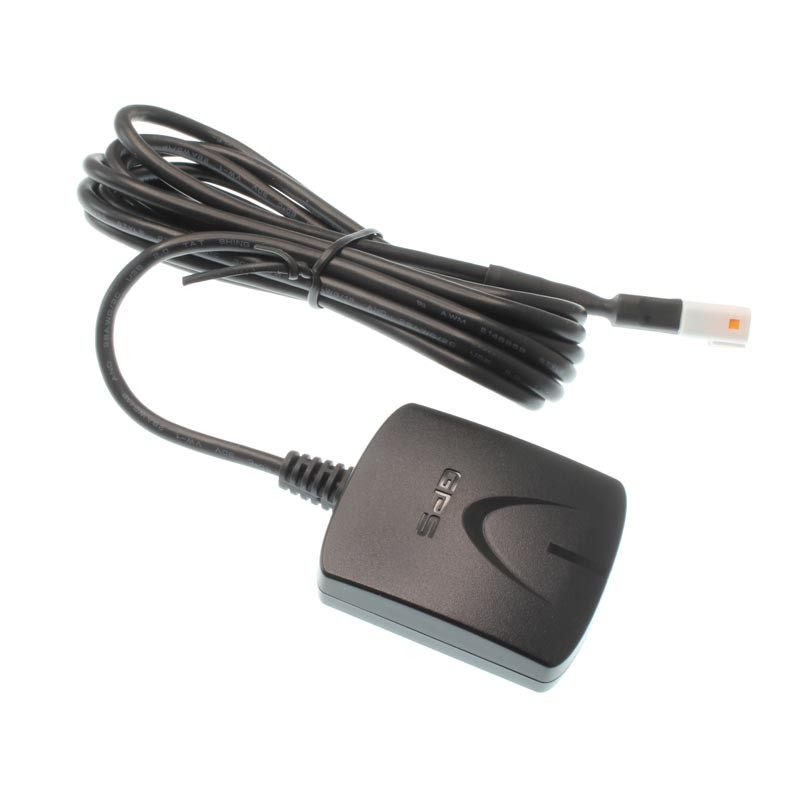

- GPS receiver

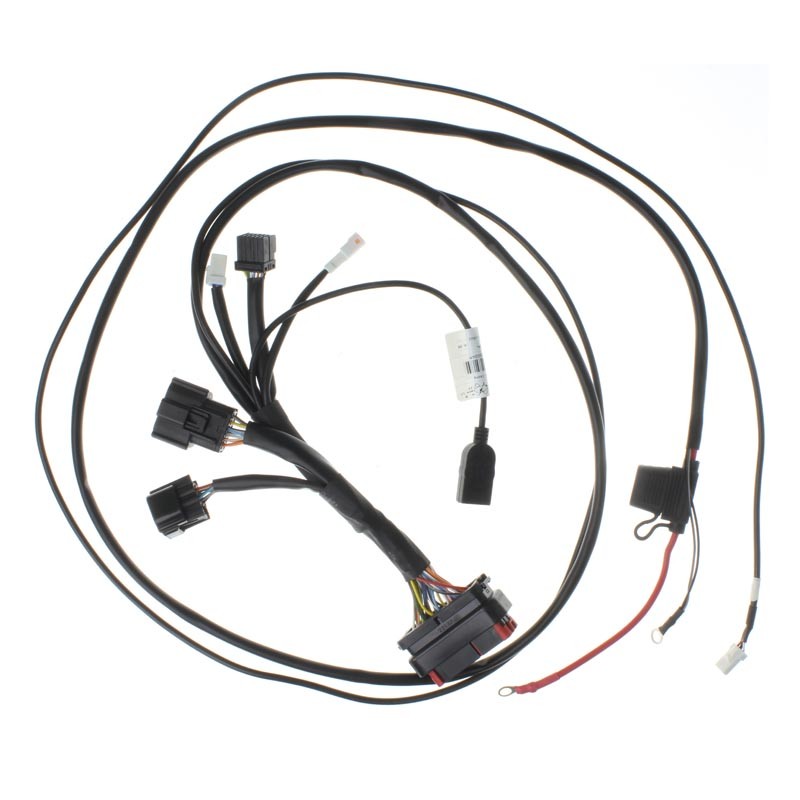

- Main wiring
- 2 TPMS receivers with adapters (available for 8.5mm or 11.5mm valves)
- Bosch LSU 4.9 lambda sensor
- Cleaning cloth
- For installation, simply select the plug & play adapter for your motorcycle.

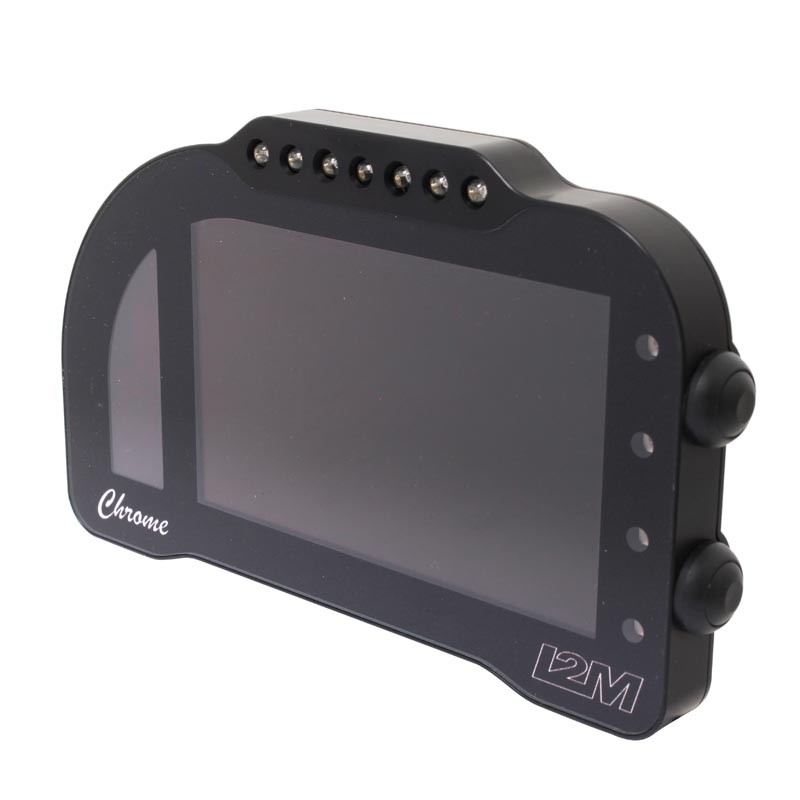

Compared to the previous generation, the new Chrome Pro 2 features a single front panel, providing even better protection for the TFT display. The CNC-machined aluminum housing is now even thinner and houses a new, unique rear connector with IP67 protection. The appearance only hints at some of the differences from previous models, such as:

- Full configurability of all bike parameters, even with a fully customized CAN bus
- 128 additional CAN bus acquisition channels, each with sampling rates up to 500 Hz
- Total sampling rate of over 65 ks/s
- 11 fully configurable RGB LEDs
- Configurable mechanical sides
- Integrated Wi-Fi antenna
- Wi-Fi hotspot setup
- Integrated Bluetooth BLE antenna
- Cable configuration option (with the appropriate optional cable)
- New simplified customization maps
- Integrated recovery system
