I2M Chrome Pro 2 Dashboard S1000RR 2019-2024

I2M Chrome Pro 2 Dashboard S1000RR 2019-2024

I2M Chrome Pro 2 Dashboard
Chrome PRO 2: without compromise
The Chrome Pro 2 represents the maximum evolution of the Chrome system. Designed for those who want the most from their electronics, joins the features of the Chrome Plus with a new can bus system with acquisition of over 150 channels, integrated WiFi and Bluetooth connections, complete configurability and much more. Developed from the experience gained from the collaboration with Yamaha in the WSBK, it is now available for everyone.

The Chrome Pro 2 comes in a package containing:

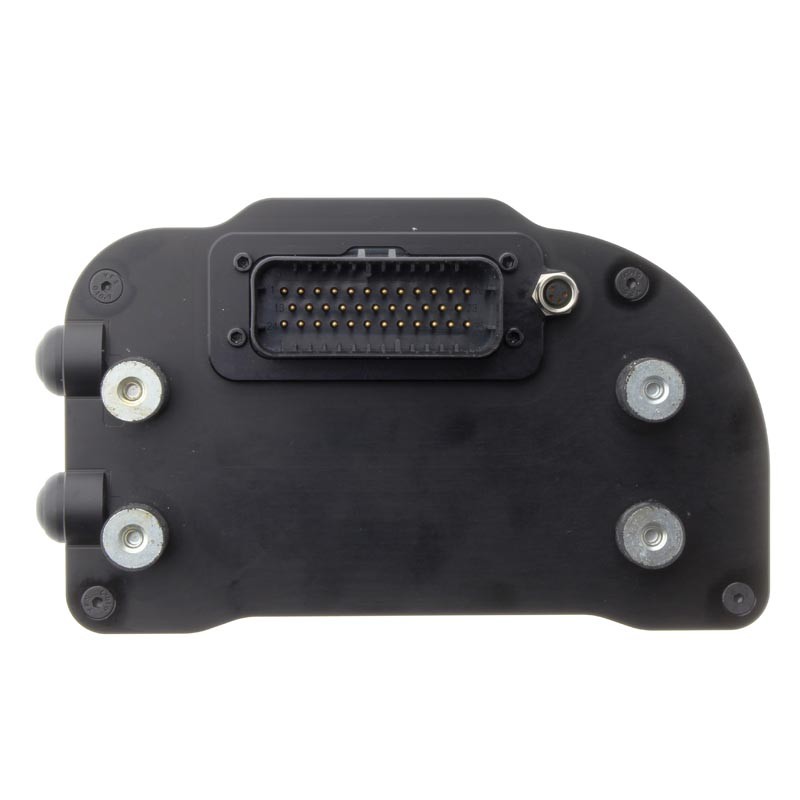

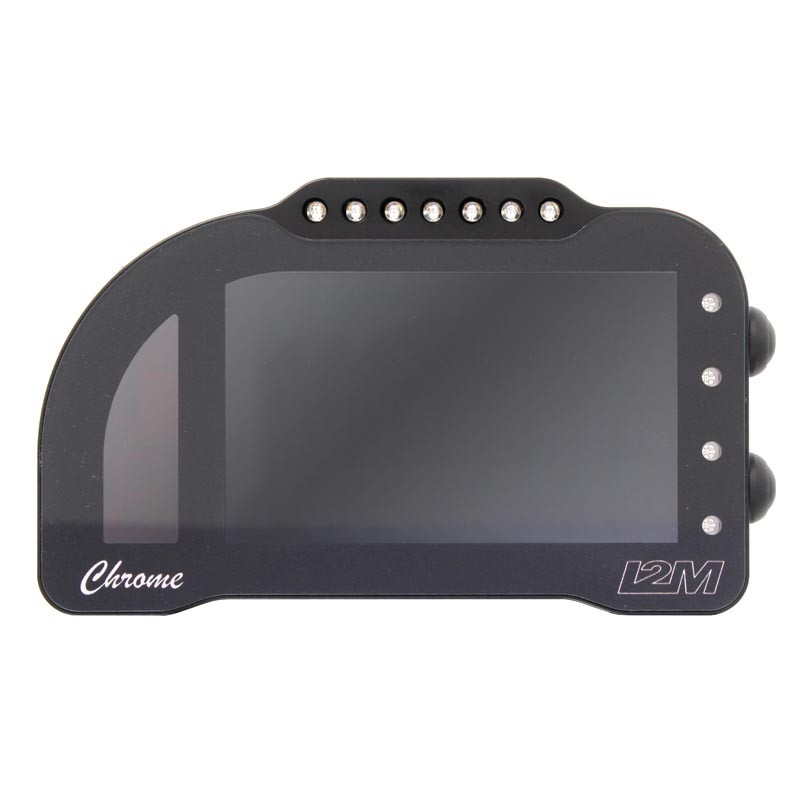

Chrome Pro 2
Antenna with 90 degree SMA joint for TPMS receiver

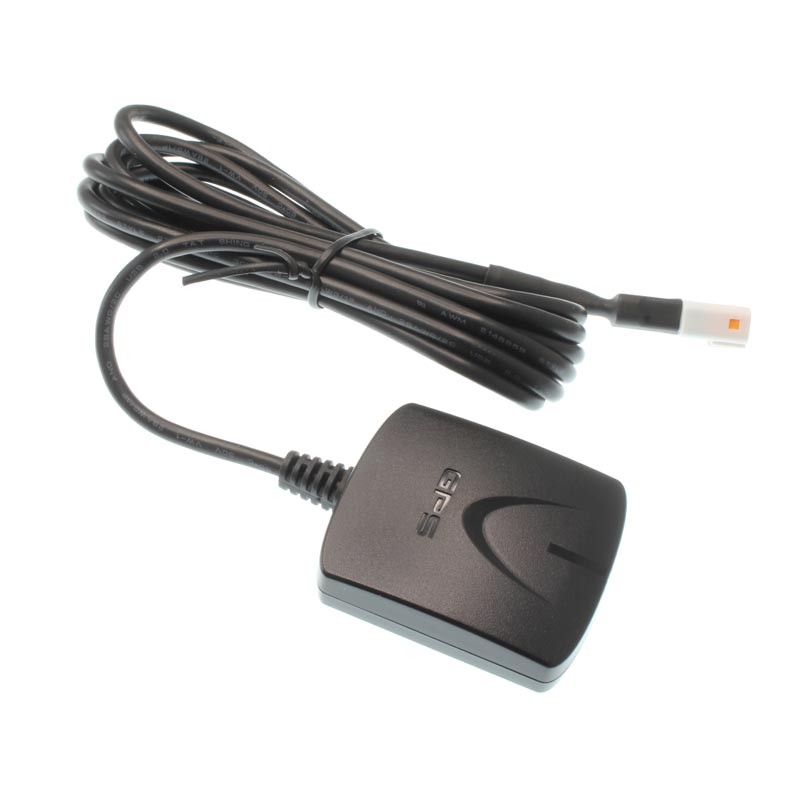

GPS receiver

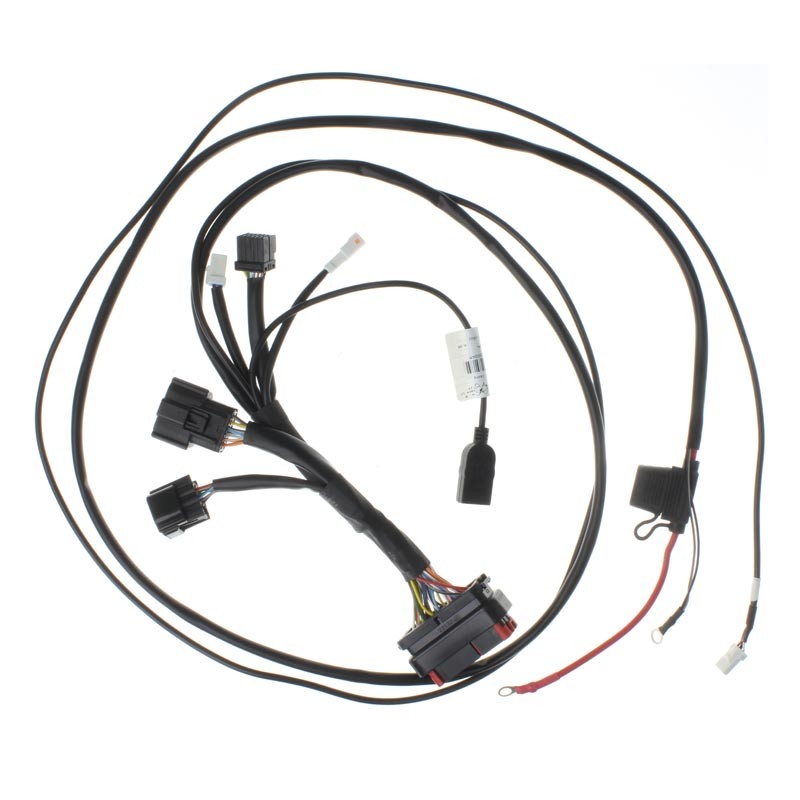

Main wiring
2 TPMS receivers with adapters (optionally for 8.5mm or 11.5mm valves)
Lambda sensor BOSH LSU 4.9
Cleaning cloth
To install it you only need to choose the plug & play adapter for your motorcycle.

Characteristics

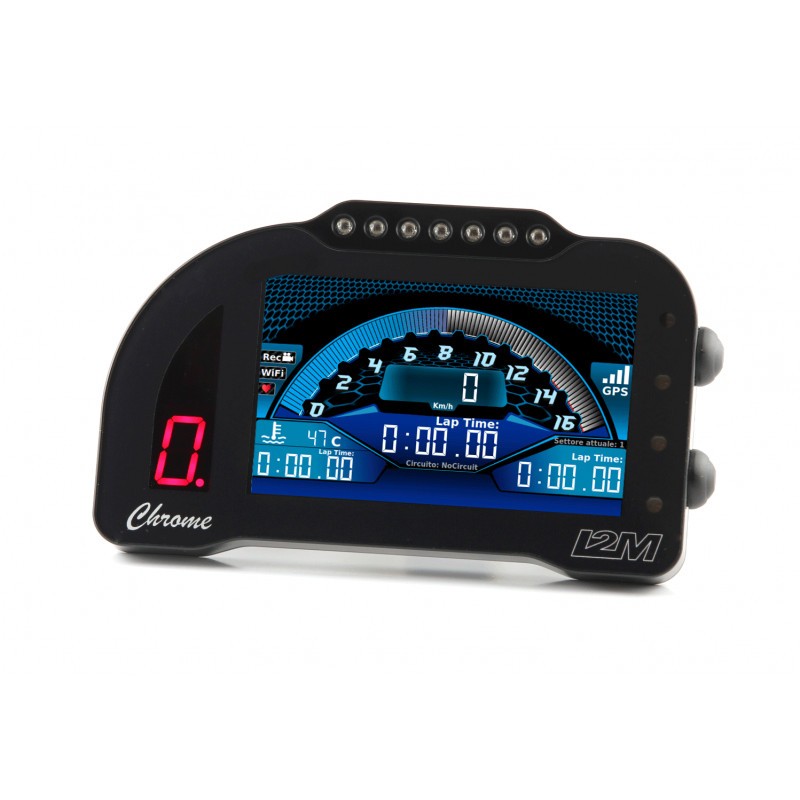

5 "color graphic display 800x480
Very high visibility even in direct sunlight
1GHz processor with 1GB of RAM memory
Aluminum CNC case
Fully configurable pilot and mechanic pages
Trajectory detection and GPS speed at 10Hz with 66 channels in parallel
Stopwatch function with 20 preset circuits, memory of 500 laps per circuit
Automatic recognition of the circuit, with four sectors
Calculation of best lap, ideal, difference with the best lap or with the last lap, historical and current day maximum values
Programming via USB stick, WiFi or with USB cable (otional)
11 fully configurable high brightness RGB alarms
IP67 protection
Polar H7 or H10 heart rate belt connection
Attention: sensor support not compatible with original Ducati V2 wheels
8 10-bit analog inputs
2 speed inputs and 1 RPM input
Separate fully configurable water, petrol and oil inputs, also Can Bus
128 channels of Can Bus acquisition at 500Hz each
Data download via USB stick, or WiFi
Possibility to connect a two button remote control without additional interfaces
Auxiliary can bus for expansion modules
Storage on 16GB internal memory
Possibility of webCam C270 connection for synchronization of the acquired data
3 different distance meters, 2 operating hours and total laps
Integrated lambda probe controller and BOSH LSU 4.9 sensor included
TPMS receiver with 4 pre-programmable channels per wheel and two sensors included
8 10-bit analog inputs
2 speed inputs and 1 RPM input
Separate fully configurable water, petrol and oil inputs, also Can Bus
128 channels of Can Bus acquisition at 500Hz each
Data download via USB stick, or WiFi
Possibility to connect a two button remote control without additional interfaces
Auxiliary can bus for expansion modules
Storage on 16GB internal memory
Possibility of webCam C270 connection for synchronization of the acquired data
3 different distance meters, 2 operating hours and total laps
Integrated lambda probe controller and BOSH LSU 4.9 sensor included
TPMS receiver with 4 pre-programmable channels per wheel and two sensors included
