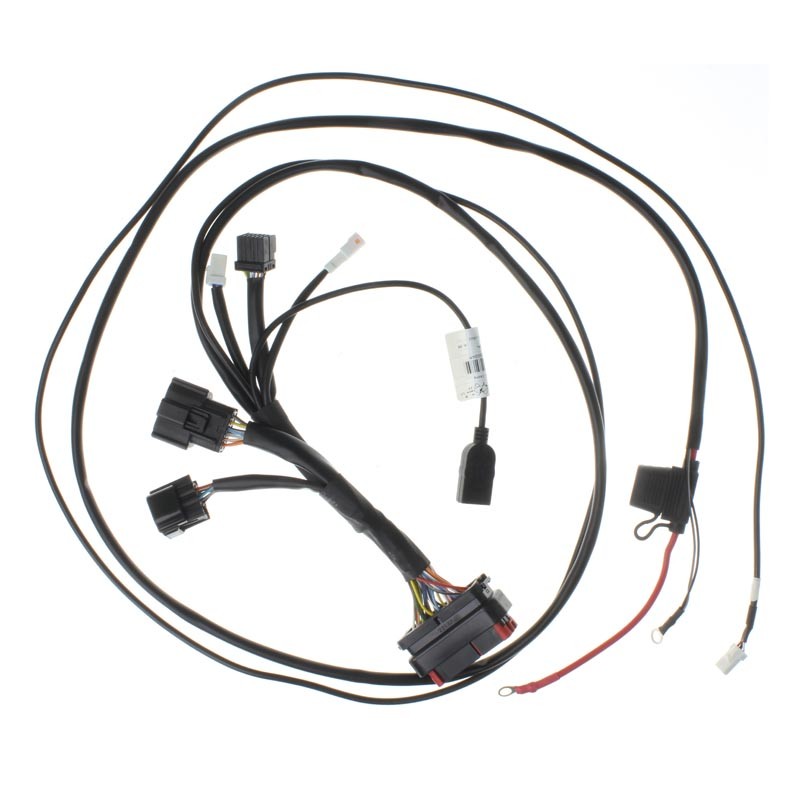

I2M Chrome PRO2 dashboard and chronometer with plug & play adapter ZX10R 2016-2020

I2M Chrome PRO2 dashboard and chronometer with plug & play adapter ZX10R 2016-2020

90° valve diameter: choice of 8.5 mm or 11 mm.

The I2M Chrome 2 pro dashboard represents the evolution of the I2M Chrome system (previous version).
Designed for those who want to get the most out of their motorcycle's electronics, it has the same features as the Chrome Plus but with a new bus system with acquisition on more than 150 different channels.
Integrated Wi-Fi and Bluetooth connection and numerous settings are possible.

The Chrome PRO 2 has a built-in 433 MHz receiver that allows it to receive signals from our TPMS sensors, storing up to 4 sensors for each wheel.
This means you can always keep an eye on the pressure of both tyres and the temperature of the rim to check that they are warming up properly with the tyre warmers.
Configurable alarms allow you to set the RGB LEDs to signal any abnormal pressure or temperature.
The values are acquired for later processing. The Chrome PRO 2 comes with two TPMS sensors with corresponding adapters for 90-degree valves, which can be requested in 8.5 mm or 11.5 mm diameter formats.
TMPS sensors included.
Available for rims with 8.3 mm or 11.3 mm holes (valves not included).

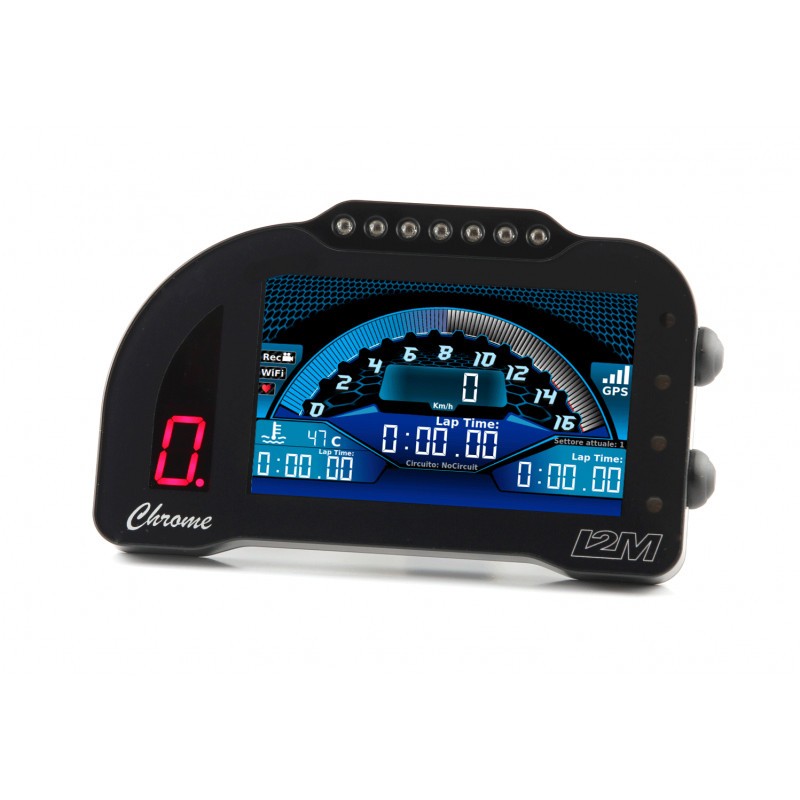

5'' 800 x 480 colour graphic display
High visibility even in direct sunlight
1 GHz processor with 1 GB RAM
Aluminium CNC housing
Fully configurable driver and mechanic pages
GPS trajectory and speed detection at 10Hz with 66 parallel channels
Stopwatch function with 20 preset circuits, memory for 500 laps per circuit

Automatic circuit recognition, with four split times

Calculation of best lap, ideal lap, difference from best lap or last lap, maximum values, historical data consultation
Programming via USB key, WiFi or USB cable (optional)
11 fully configurable RGB alarms
IP67 protection
Heart rate belt connection
8 10-bit analogue inputs
2 speed inputs and 1 RPM input
Fully configurable separate water, fuel and oil inputs, also Can Bus
128 Can Bus acquisition channels at 500 Hz each
Overall sampling rate greater than 65 k samples/s
Data download via USB stick or WiFi
Possibility of connecting a two-button remote control without additional interfaces (optional)
Auxiliary Can Bus for expansion modules
16 GB internal memory storage
Option to connect a C270 webcam for synchronising acquired data
3 different distance counters, 2 operating hours and total number of revolutions
Integrated lambda probe controller and BOSH LSU 4.9 sensor included
TPMS receiver with 4 pre-programmed channels
