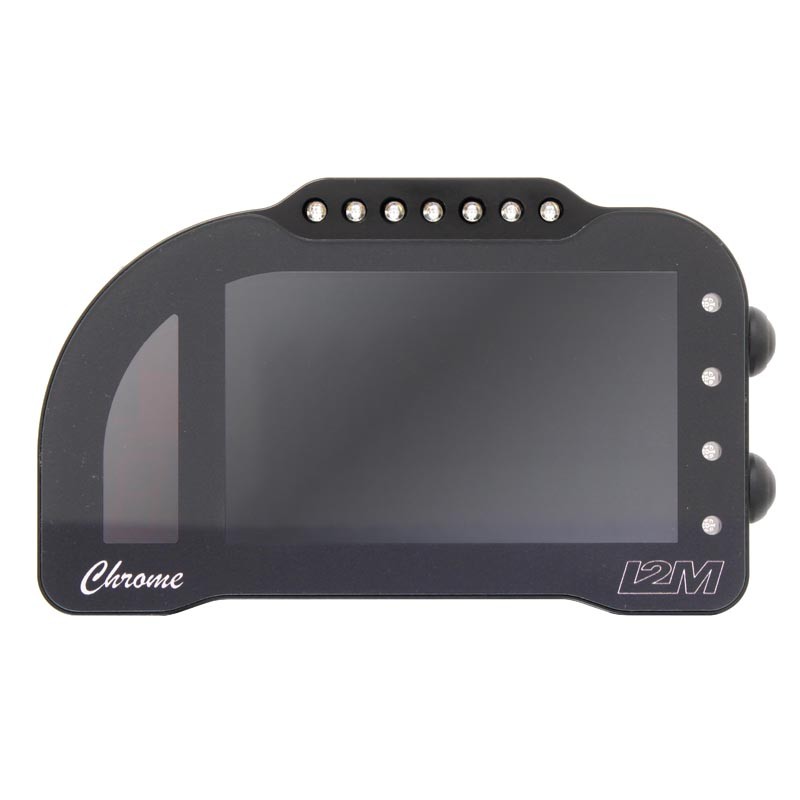

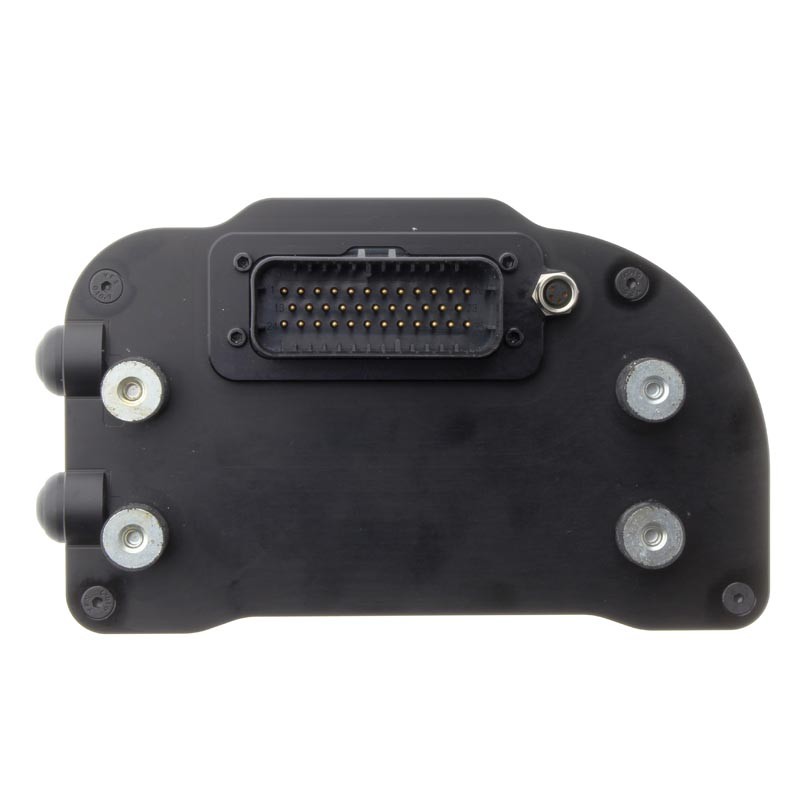

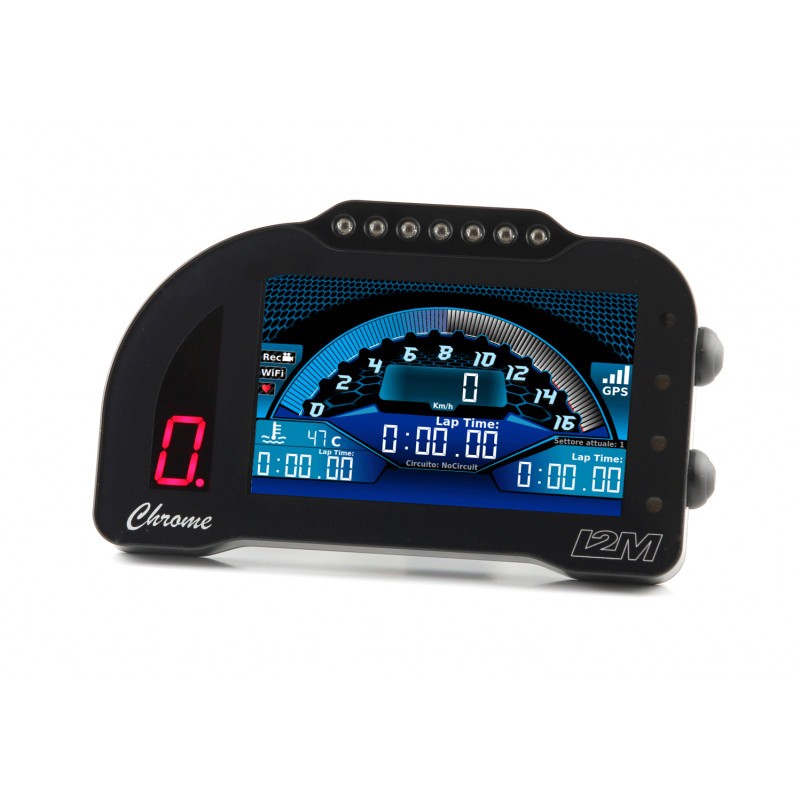

I2M Chrome Pro 2 Dashboard with wiring harness CBR1000RR 2020-2023

I2M Chrome Pro 2 Dashboard with wiring harness CBR1000RR 2020-2023

Chrome PRO 2: without compromise
The Chrome Pro 2 represents the maximum evolution of the Chrome system. Designed for those who want the most from their electronics, joins the features of the Chrome Plus with a new can bus system with acquisition of over 150 channels, integrated WiFi and Bluetooth connections, complete configurability and much more. Developed from the experience gained from the collaboration with Yamaha in the WSBK, it is now available for everyone.

The Chrome Pro 2 comes in a package containing:
- Chrome Pro 2
- Antenna with 90 degree SMA joint for TPMS receiver
- GPS receiver
- Main wiring
- 2 TPMS receivers with adapters (optionally for 8.5mm or 11.5mm valves)
- Lambda sensor BOSH LSU 4.9
- Cleaning cloth
- To install it you only need to choose the plug & play adapter for your motorcycle.

Characteristics
- 5 "color graphic display 800x480
- Very high visibility even in direct sunlight
- 1GHz processor with 1GB of RAM memory
- Alminum CNC case
- Fully configurable pilot and mechanic pages
- Trajectory detection and GPS speed at 10Hz with 66 channels in parallel
- Stopwatch function with 20 preset circuits, memory of 500 laps per circuit
- Automatic recognition of the circuit, with four sectors
- Calculation of best lap, ideal, difference with the best lap or with the last lap, historical and current day maximum values
- Programming via USB stick, WiFi or with USB cable (otional)
- 11 fully configurable high brightness RGB alarms
- IP67 protection
- Polar H7 or H10 heart rate belt connection
- Attention: sensor support not compatible with original Ducati V2 wheels
- 8 10-bit analog inputs
- 2 speed inputs and 1 RPM input
- Separate fully configurable water, petrol and oil inputs, also Can Bus
- 128 channels of Can Bus acquisition at 500Hz each
- Data download via USB stick, or WiFi
- Possibility to connect a two button remote control without additional interfaces
- Auxiliary can bus for expansion modules
- Storage on 16GB internal memory
- Possibility of webCam C270 connection for synchronization of the acquired data
- 3 different distance meters, 2 operating hours and total laps
- Integrated lambda probe controller and BOSH LSU 4.9 sensor included
- TPMS receiver with 4 pre-programmable channels per wheel and two sensors included
- 8 10-bit analog inputs
- 2 speed inputs and 1 RPM input
- Separate fully configurable water, petrol and oil inputs, also Can Bus
- 128 channels of Can Bus acquisition at 500Hz each
- Data download via USB stick, or WiFi
- Possibility to connect a two button remote control without additional interfaces
- Auxiliary can bus for expansion modules
- Storage on 16GB internal memory
- Possibility of webCam C270 connection for synchronization of the acquired data
- 3 different distance meters, 2 operating hours and total laps
- Integrated lambda probe controller and BOSH LSU 4.9 sensor included
- TPMS receiver with 4 pre-programmable channels per wheel and two sensors included
