I2M Chrome PRO2 dashboard and chronometer with plug & play adapter ZX6R 636 2024-2025

I2M Chrome PRO2 dashboard and chronometer with plug & play adapter ZX6R 636 2024-2025

90° valve diameter: choice of 8.5 mm or 11 mm.

The I2M Chrome 2 pro dashboard represents the evolution of the I2M Chrome system (previous version).
Designed for those who want to get the most out of their motorcycle's electronics, it has the same features as the Chrome Plus but with a new bus system with acquisition on more than 150 different channels.
Integrated Wi-Fi and Bluetooth connection and numerous settings are possible.

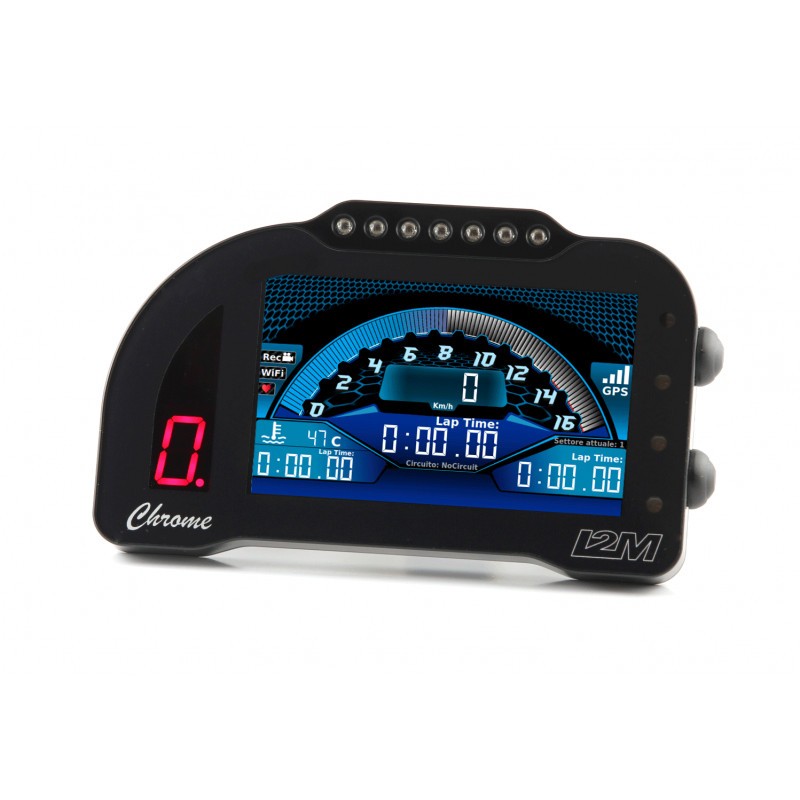

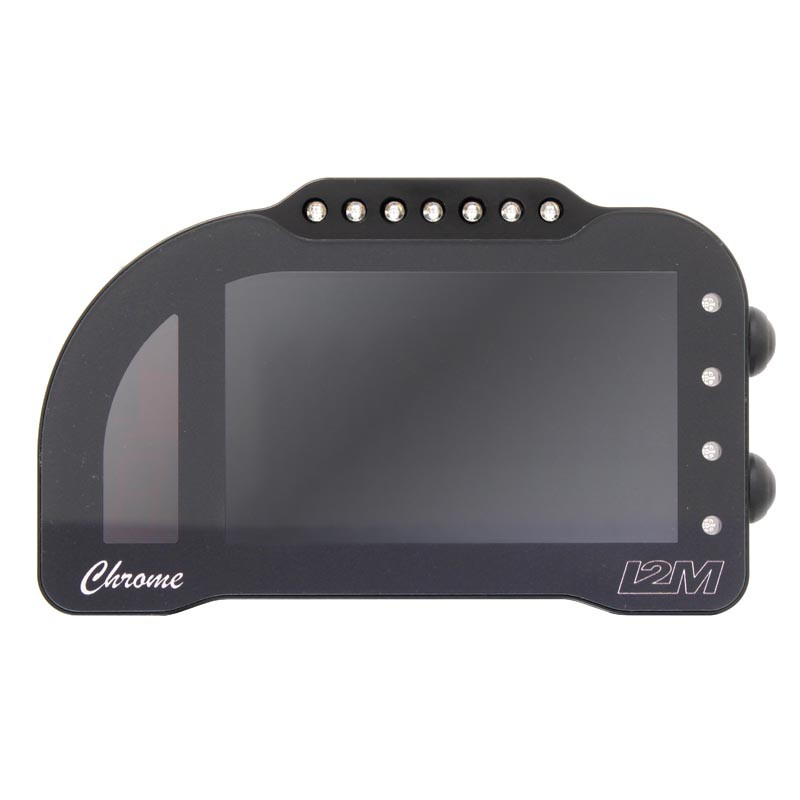

Chrome PRO2 dashboard and chronometer with plug & play I2M ZX6R 636 2024-2025 adapter.
90° valve diameter: choice of 8.5 mm or 11 mm.

The I2M Chrome 2 pro dashboard represents the evolution of the I2M Chrome system (previous version).
Designed for those who want to get the most out of their motorcycle's electronics, it has the same features as the Chrome Plus but with a new bus system with acquisition on more than 150 different channels.
Integrated Wi-Fi and Bluetooth connection and numerous settings are possible.

The Chrome PRO 2 has a built-in 433 MHz receiver that allows it to receive signals from our TPMS sensors, storing up to 4 sensors for each wheel.
This means you can keep an eye on the pressure of both tyres and the temperature of the rim at all times, to check that they are warming up properly with the tyre warmers.
Configurable alarms allow you to set the RGB LEDs to signal any abnormal pressure or temperature.
The values are acquired for later processing. The Chrome PRO 2 comes with two TPMS sensors with corresponding 90-degree valve adapters, which can be requested in 8.5 mm or 11.5 mm diameter formats.
TMPS sensors included.
Available for rims with 8.3 mm or 11.3 mm holes (valves not included).

• 5'' 800 x 480 colour graphic display
• High visibility even in direct sunlight
• 1 GHz processor with 1 GB RAM
• CNC aluminium casing
• Fully configurable driver and mechanic pages

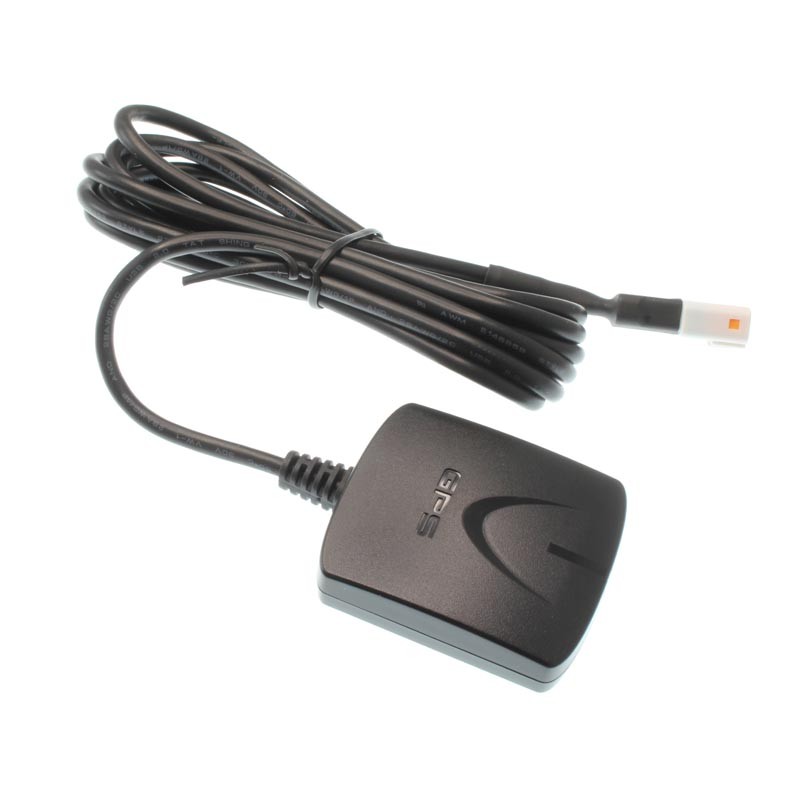

• GPS trajectory and speed detection at 10Hz with 66 parallel channels
• Stopwatch function with 20 preset circuits, memory for 500 laps per circuit

Automatic circuit recognition, with four split times

• Calculation of best lap, ideal lap, difference from best lap or last lap, maximum values, historical data consultation
• Programming via USB key, WiFi or USB cable (optional)
• 11 fully configurable RGB alarms
• IP67 protection
• Heart rate belt connection
• 8 analogue inputs, 10 bits
• 2 speed inputs and 1 RPM input
• Fully configurable separate water, petrol and oil inputs, also Can Bus
• 128 Can Bus acquisition channels at 500 Hz each
• Overall sampling rate greater than 65 k samples/s
• Data download via USB stick or WiFi
• Option to connect a two-button remote control without additional interfaces (optional)
• Auxiliary Can Bus for expansion modules
• 16 GB internal memory storage
• Option to connect a C270 webcam for synchronising acquired data
• 3 different distance counters, 2 operating hours and total number of revolutions
• Integrated lambda probe controller and BOSH LSU 4.9 sensor included
• TPMS receiver with 4 pre-programmable channels per wheel and two sensors included
