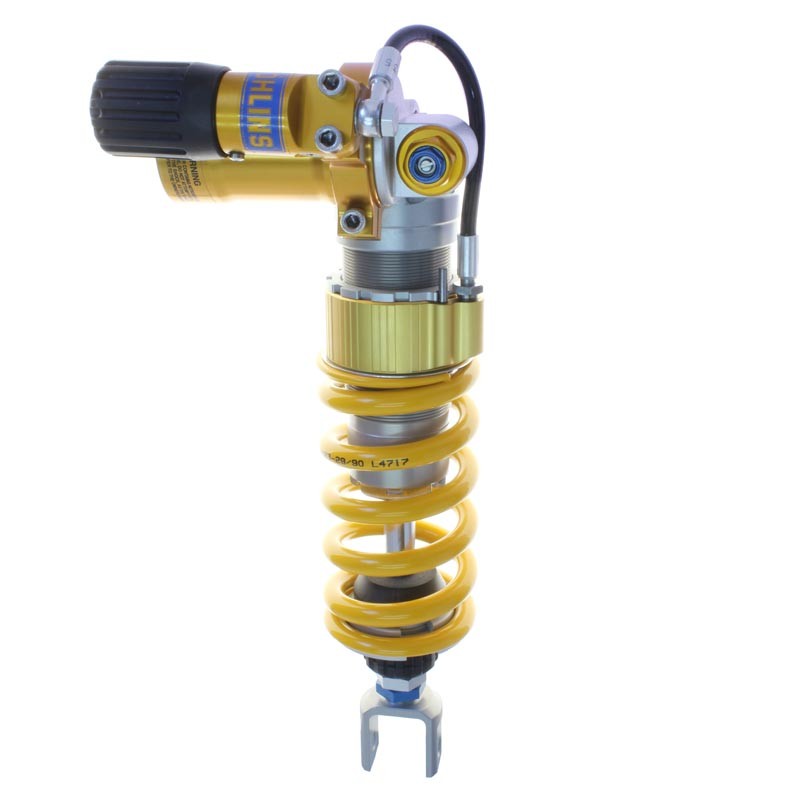

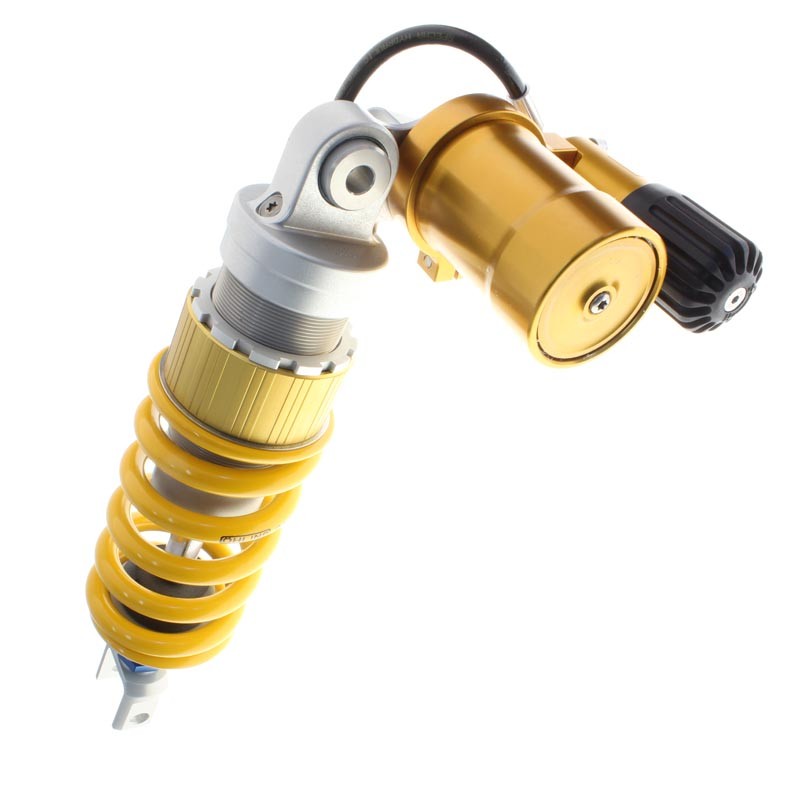

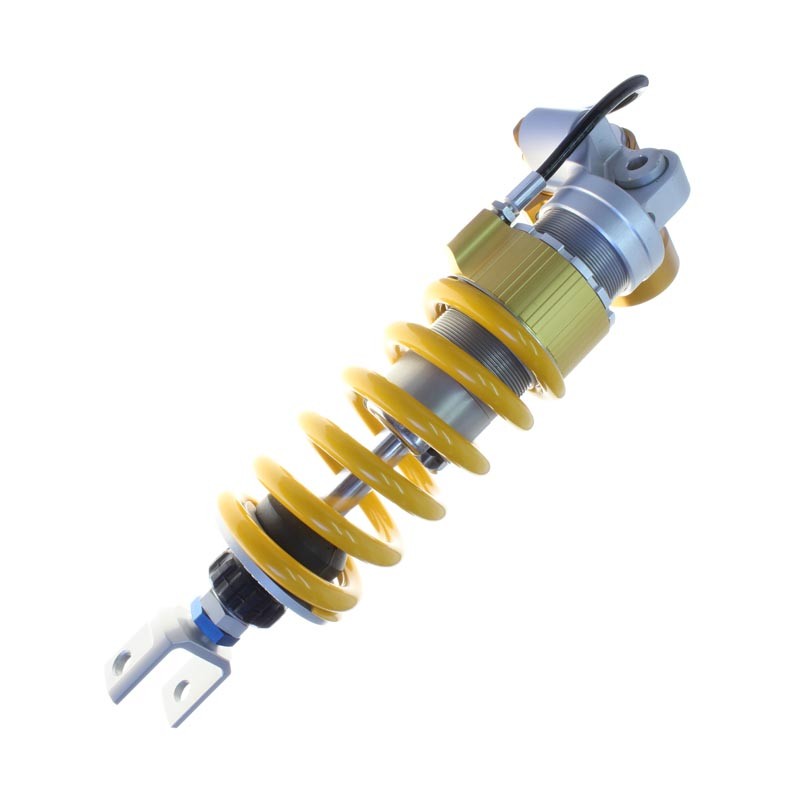

Öhlins STX 46 Supersport Shock Absorber GSX-R1000 2005-2006

Öhlins STX 46 Supersport Shock Absorber GSX-R1000 2005-2006

Data

Type Code: S46DR1
S: Single tube
46: Piston diameter: 46 mm
P: Monotube highe pressure gas type of shock absorber with external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 325,5 +6/-0 mm
Stroke: 70 mm
Rate N/mm: 90
Mounted spring: 01093-29
