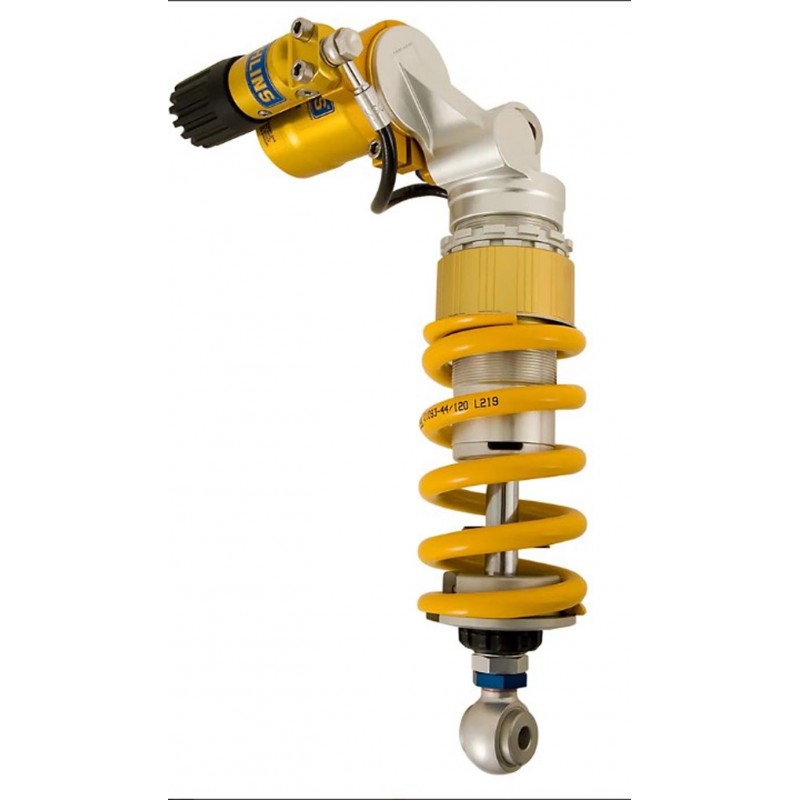

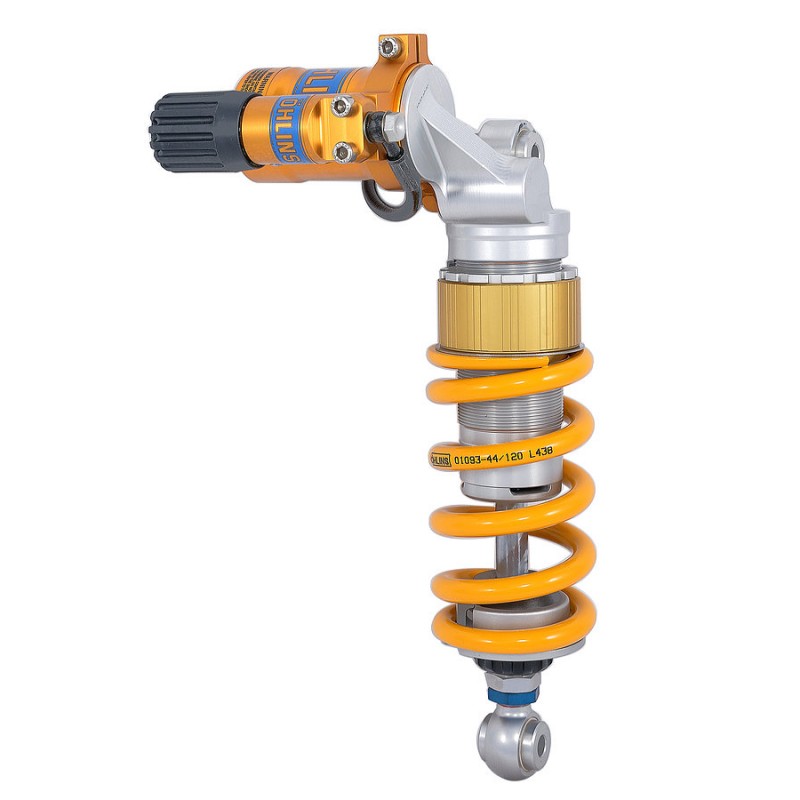

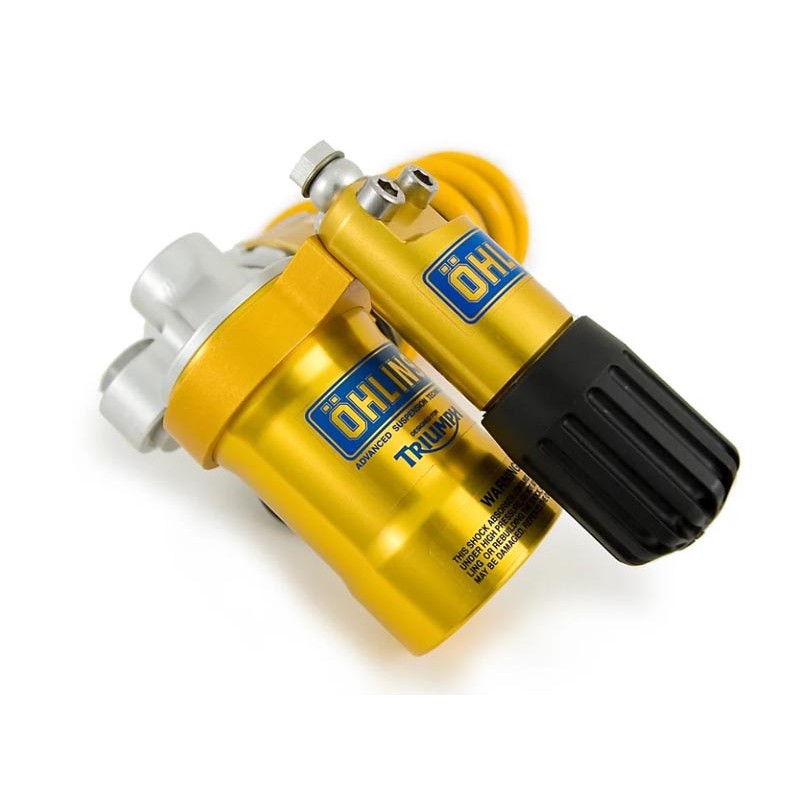

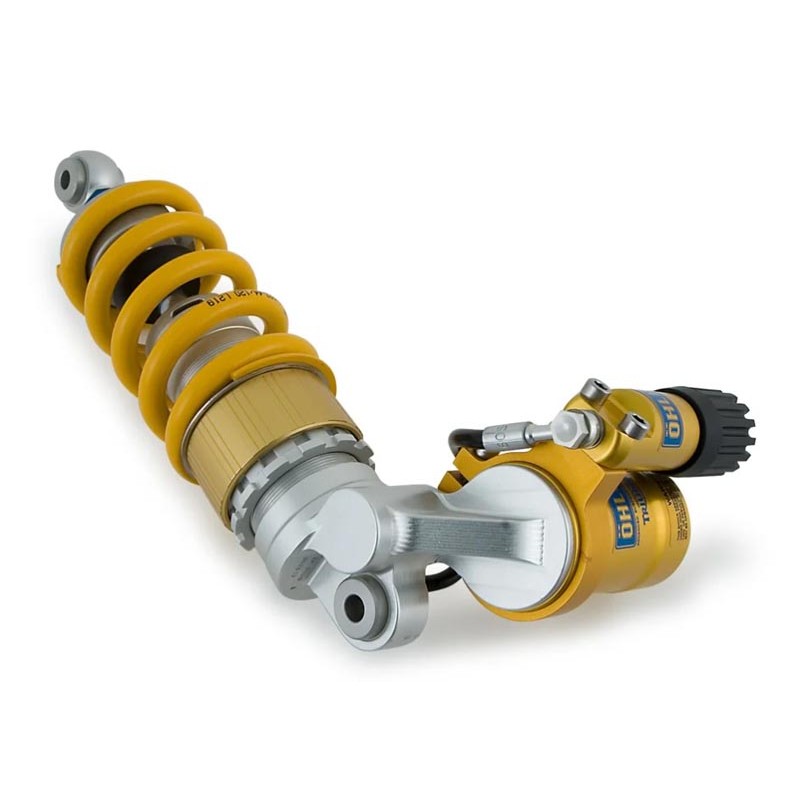

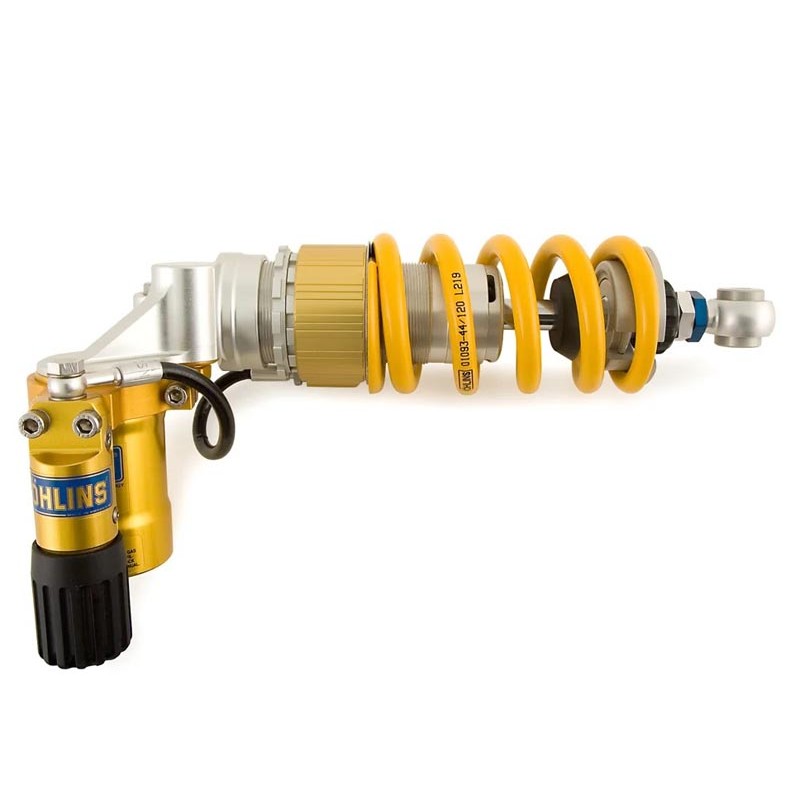

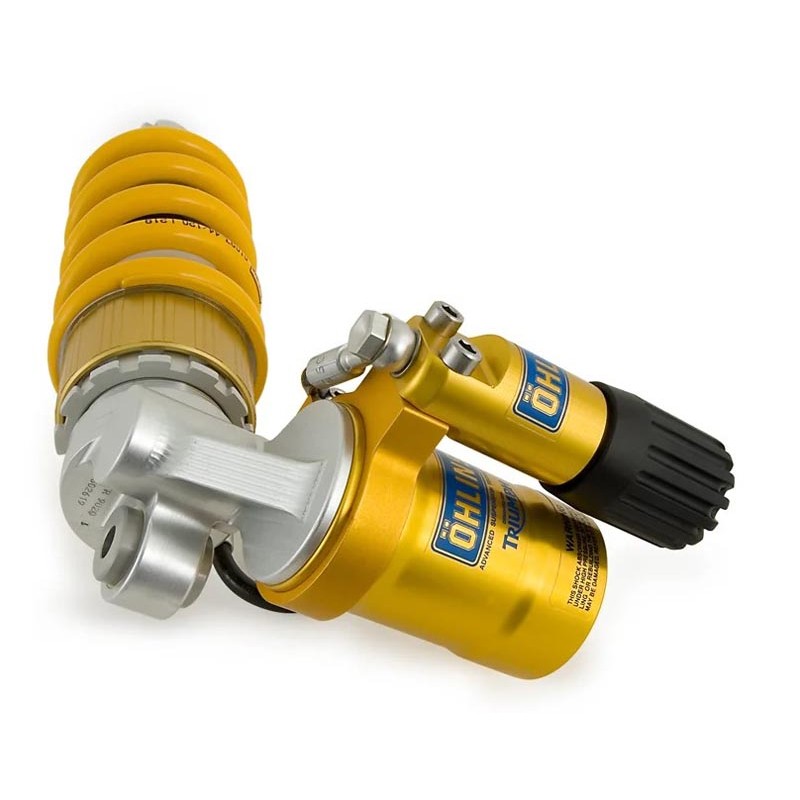

Öhlins STX 46 Supersport Shock Absorber YZF-R1 2004-2006

Öhlins STX 46 Supersport Stoßdämpfer YZF-R1 2004-2006

Data

Type Code: S46PR1C2LS
S: Single tube
46: Piston diameter: 46 mm
P: Monotube high pressure gas type of shock absorber with external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 300 +6/-0 mm
Stroke: 64,5 mm
Rate N/mm: 95
Mounted spring: 01093-31
