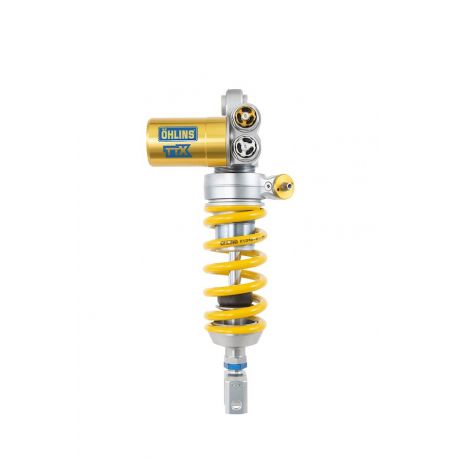

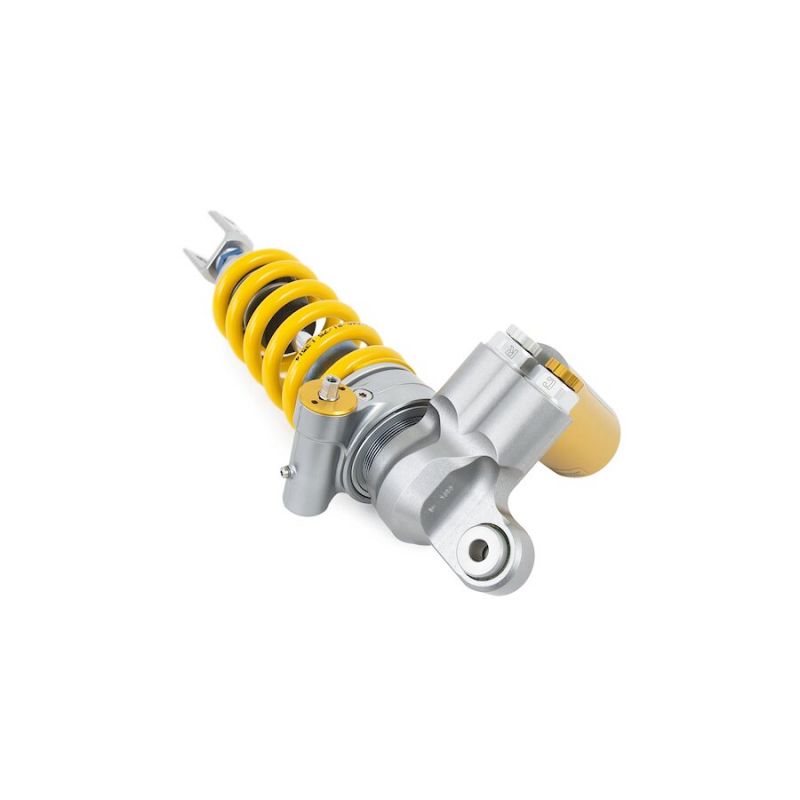

Öhlins TTX GP Shock Absorber Ninja ZX-10R 2016-2023 | ZX-10RR 2018-2023

Öhlins TTX GP Shock Absorber Ninja ZX-10R 2016-2023 | ZX-10RR 2018-2023

Data:
Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.

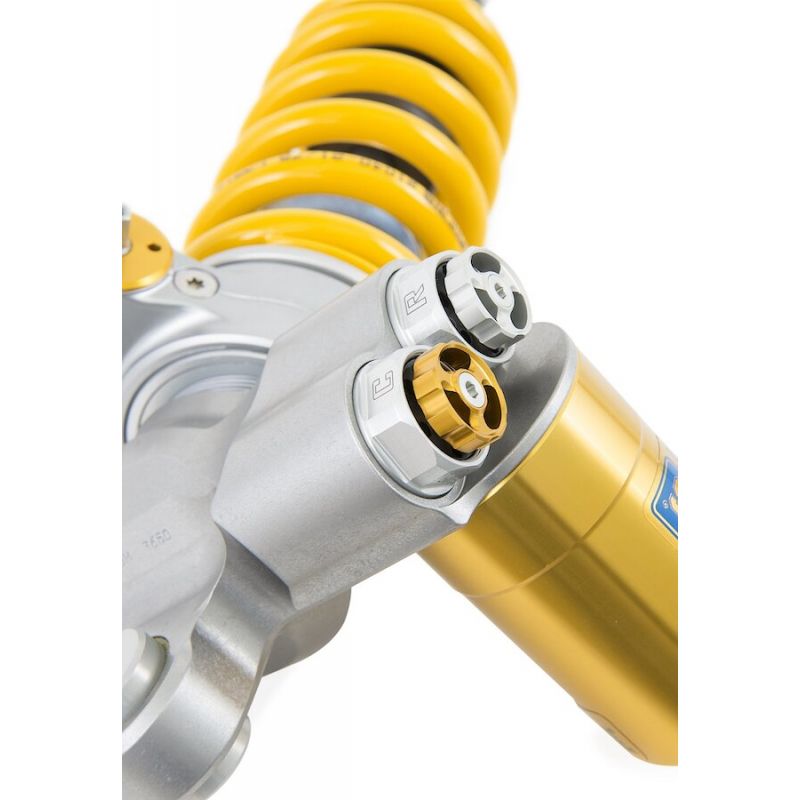

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length:    311 +2/-4 mm
Rate N/mm: 95
Stroke:    57 mm
Mounted spring:    21041-31
Spring series:    21041-xx
Packaging unit:    pieces
Position:    rear
