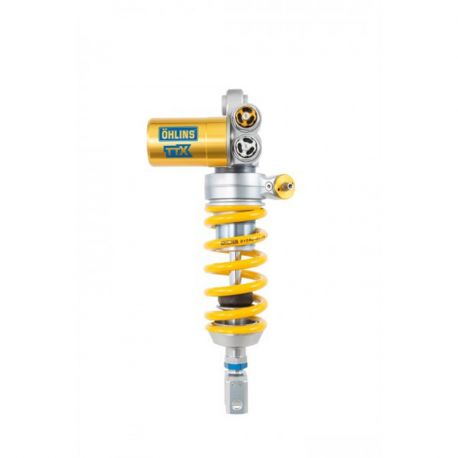

Öhlins Rear shock absorber TTX GP RSV4 2017-2020 | RSV4 1100 factory 2019-

Öhlins Rear shock absorber TTX GP RSV4 2017-2020 | RSV4 1100 factory 2019-

Technical data:
Length:    315 +2/-4 mm
Stroke:    63 mm
Position:    rear
Mounted spring:    21040-26
Packaging unit:    pieces

Informations:

Also compatible with RSV4 1100 2021-2022 and RSV4 RF 2017-2018 using original switches Aprilia Ref. 2B003744.

Type Code: T36PR1C1LB

T: Twin tube
36: Piston diameter (in mm)
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.
