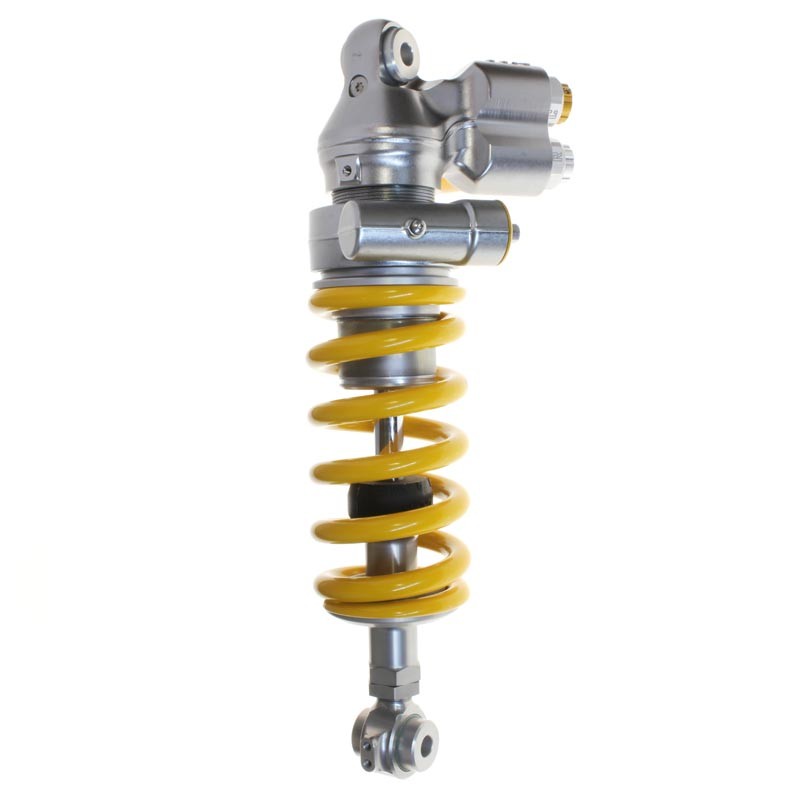

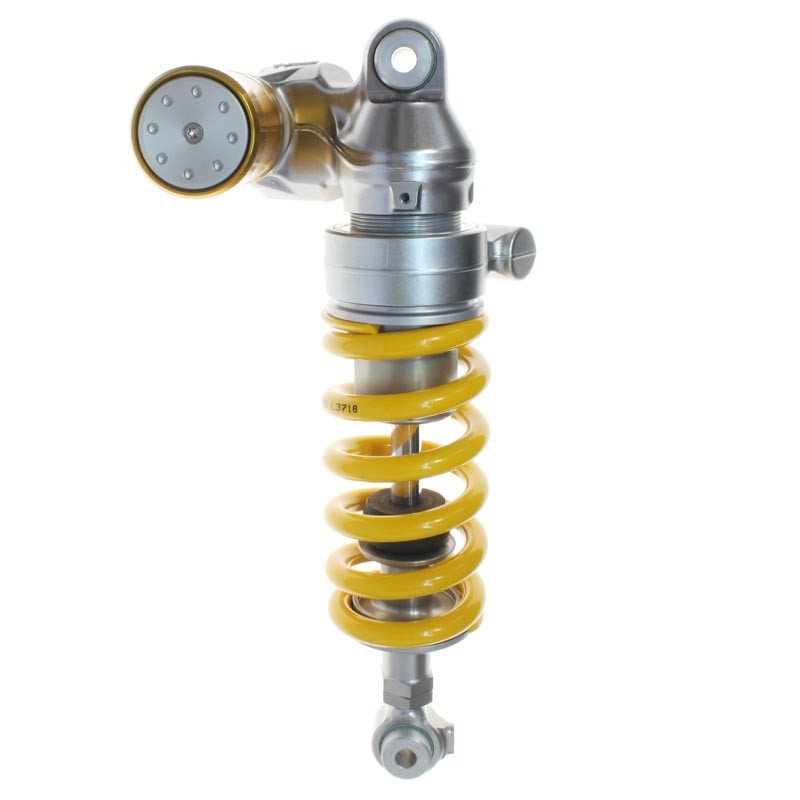

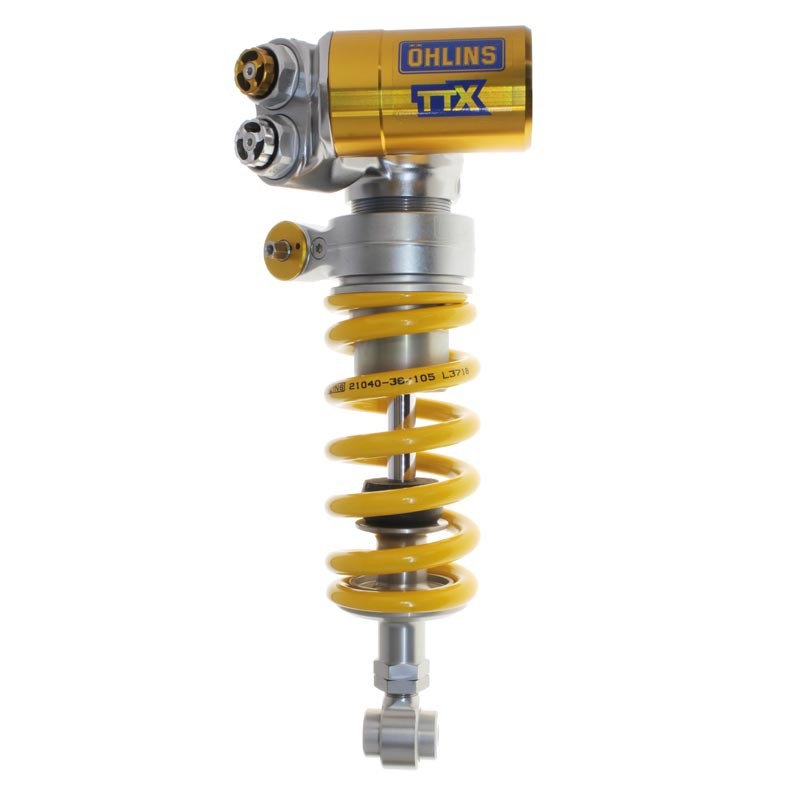

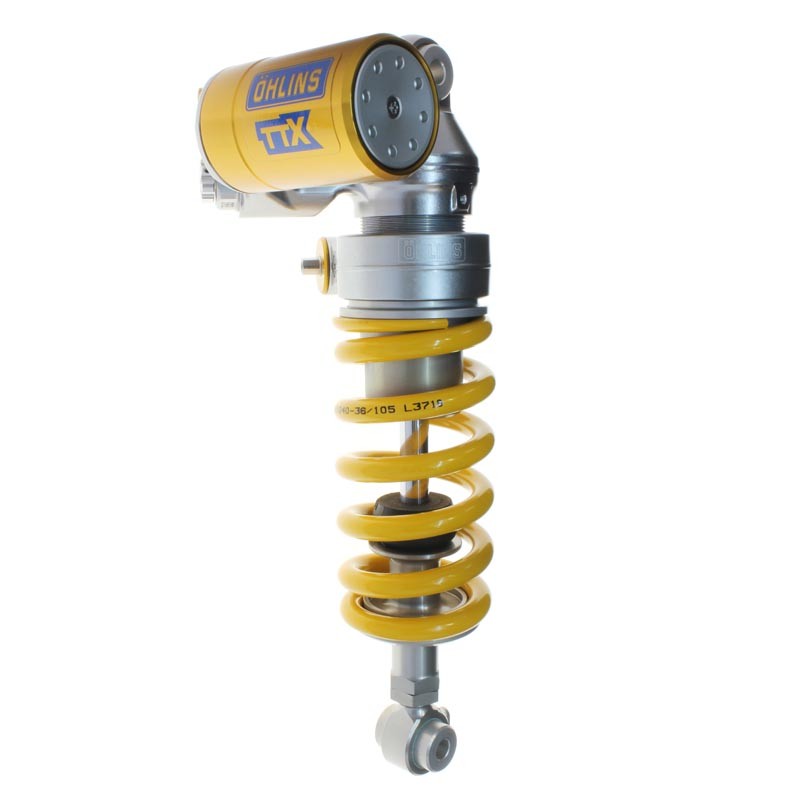

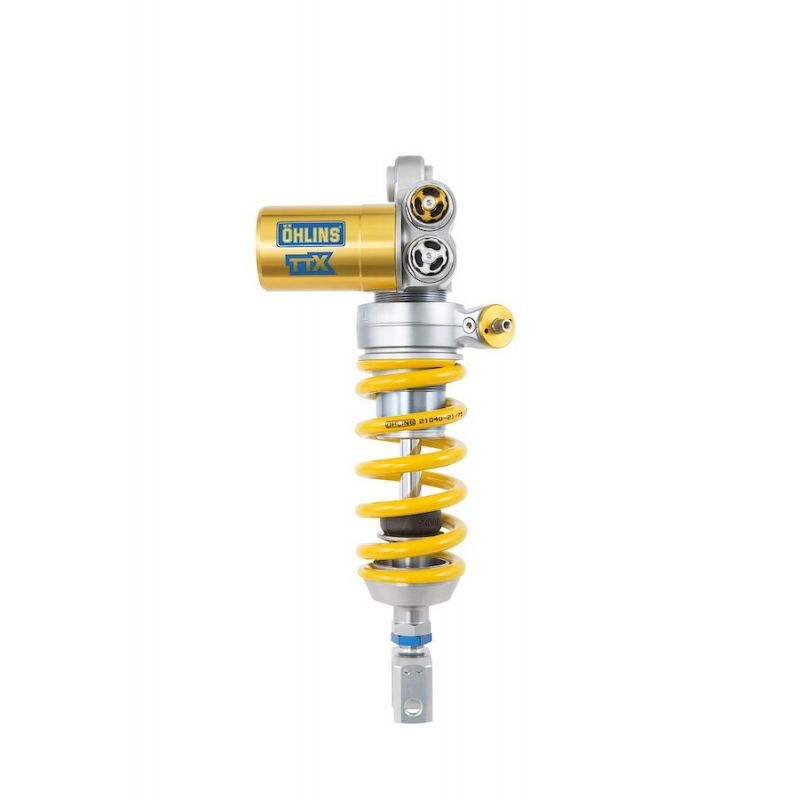

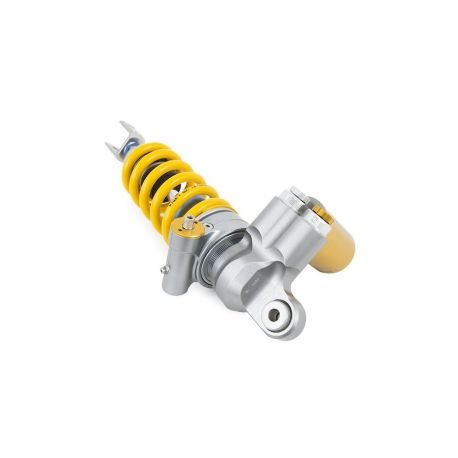

Öhlins TTX GP Shock Absorber GSXR1000 2009-2016 K9-L6

Öhlins TTX GP Shock Absorber GSXR1000 2009-2016 K9-L6

Data:
Type Code: T36PR1C1LB
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.

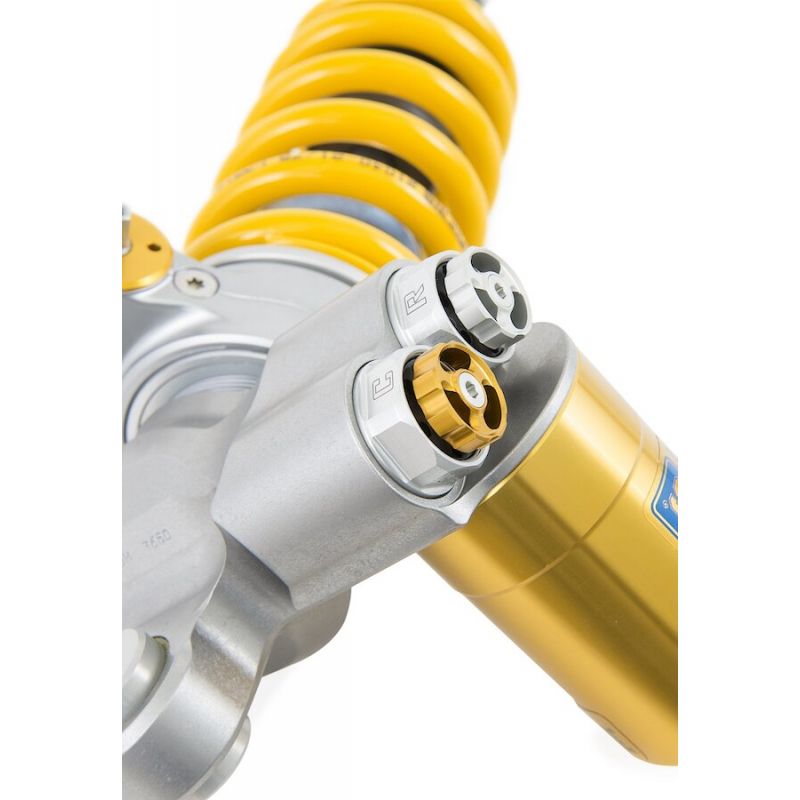

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length:    320 +4/-2 mm
Rate N/mm: 95
Stroke:    63 mm
Mounted spring:    21040-31
Packaging unit:    pieces
Position:    rear
