Öhlins NIX 30 Cartridge Kit Ninja ZX-6R 636 2013-2023

Öhlins NIX 30 Cartridge Kit Ninja ZX-6R 636 2013-2023

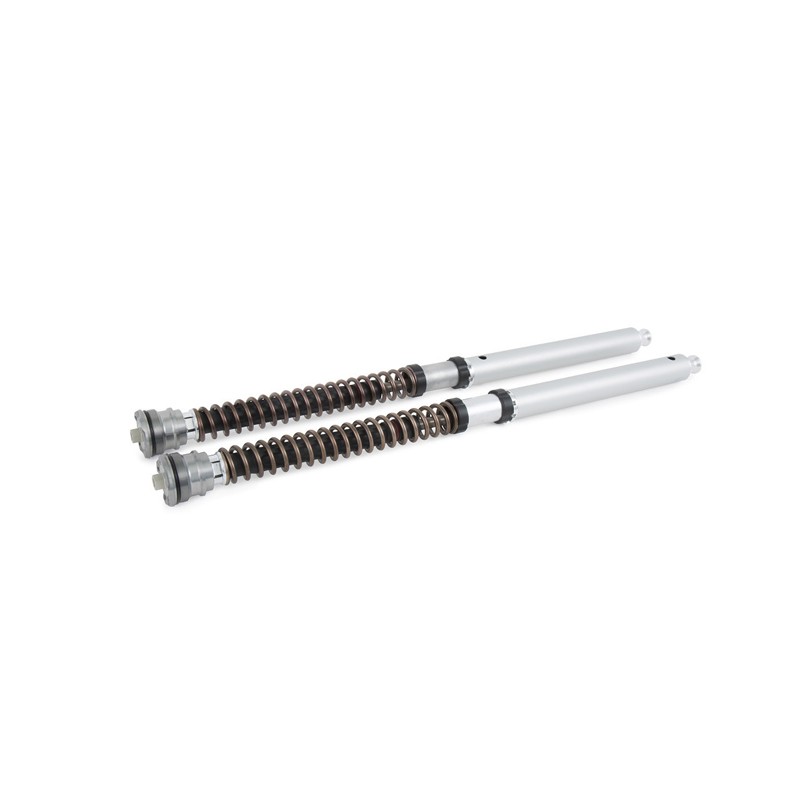

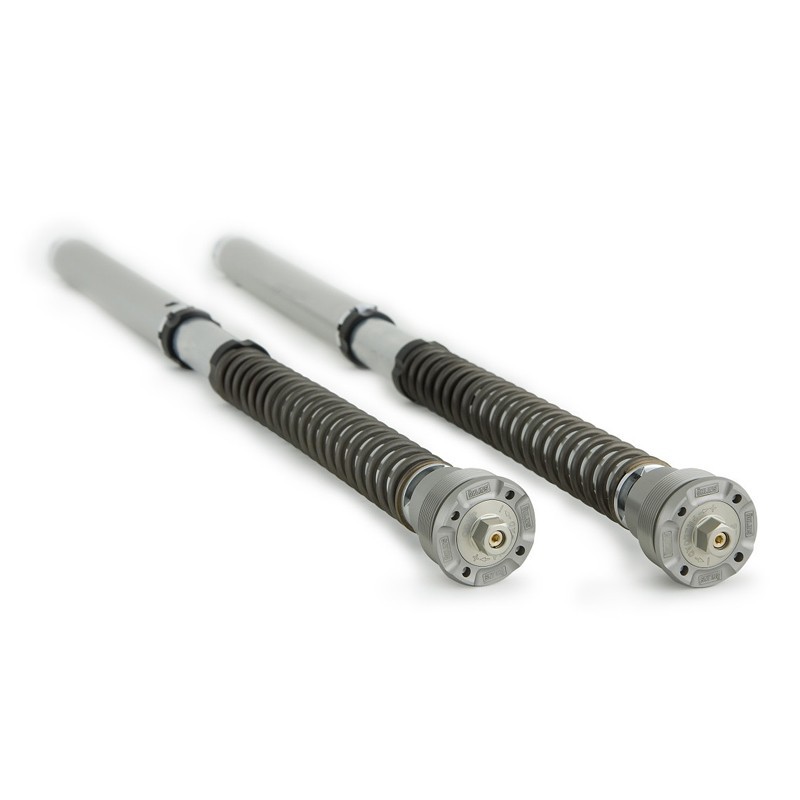

The Öhlins NIX 30 front fork cartridge kit is based on experience gained from international Supersport and Superstock championships. It doesn’t matter if you are heading for a national road racing title or if you are taking your bike to the local race track. The cartridge kit will give you loads of performance, stable damping characteristics and fantastic comfort.

The Öhlins cartridge kit has a unique design with compression damping and the adjustment on the left leg and rebound damping and the adjustment on the right leg – i.e. all adjustments are made at the top together with the spring preload! The cartridge kit system fits bolt on in most standard hyper sport front forks.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

- Sleeve pin, part no. 00797-08
- Tool pull up top-out spring M12, part no. 01765-03
- Tool cylindertube cap, part no. 01797-07
- Fork tube tool 41mm, part no. 00786-08

Additional Consumables
Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.

- Red grease, 100 g, part no. 00146-01
- Grease Statoil CaH 92, 100 g, part no. 00159-02
- Loctite 2400, 50 ml, part no. 01791-25
- Loctite 2700, 50 ml, part no. 01791-27

Notes

Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop.
