Data:

Type Code: S46HR1C1S

S: Monotube damper

46: Piston diameter: 46 mm

H: Gas-filled damper with external reservoir and high-pressure hose connection

R1: Adjustable rebound damping on the monotube damper. Adjustment dial above the end eye.

C1: Adjustable compression damping. Adjustment dial or Allen key on the reservoir.

S: External, hydraulic spring preload adjuster with hose connection.

Technical Specifications:

Length: 293.5 mm

Stroke: 60 mm

Rate N/mm: 95

Position: Rear

Spring: 01093-31

Packaging Unit: Kit

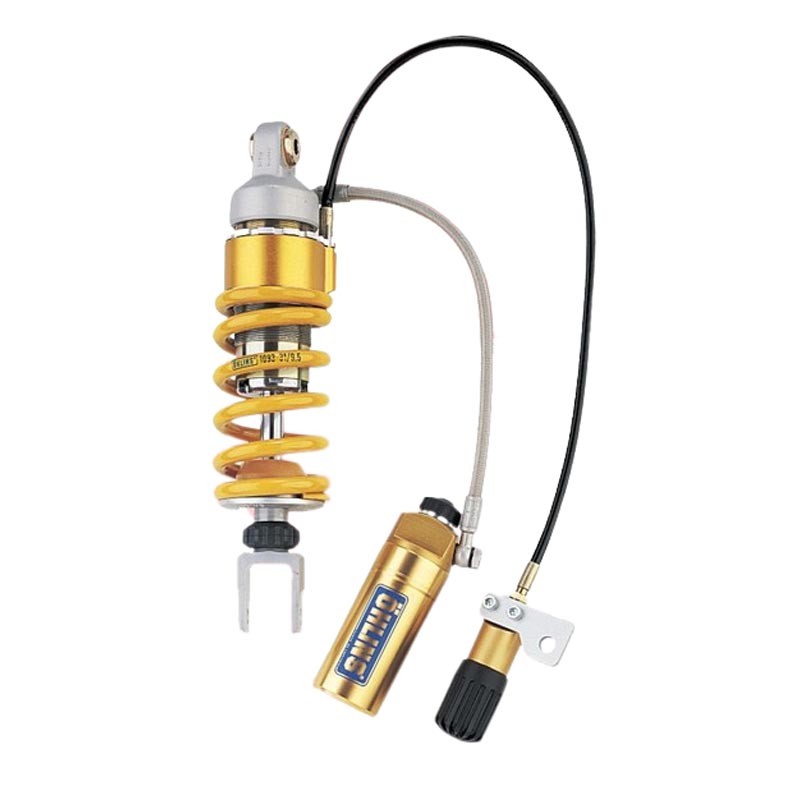

The proven STX 46 Street from Öhlins is the perfect upgrade for sporty street motorcycles. This gas-filled shock absorber with a separating piston and an internal gas reservoir features a 46 mm diameter main piston. Depending on the version, the STX 46 is equipped with mechanical or hydraulic spring preload adjustment and adjustable rebound damping.
