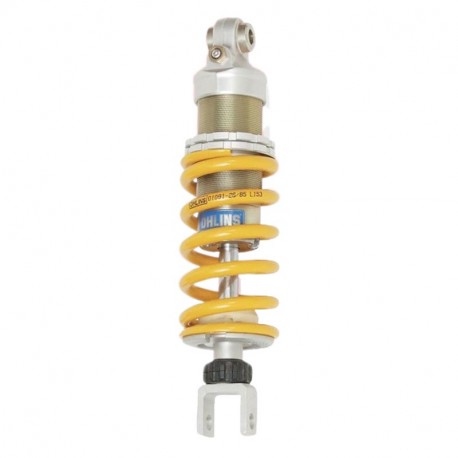

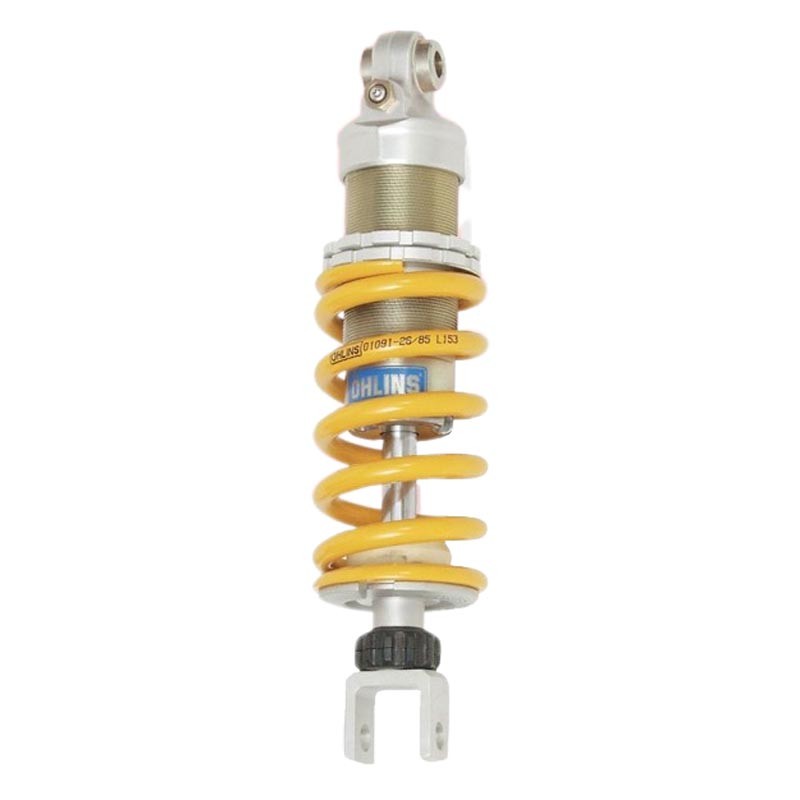

Öhlins STX 46 Street Shock Absorber Monster 620/695/750/800/900/1000

Öhlins STX 46 Street Shock Absorber Monster 620/695/750/800/900/1000

Data:

Type Code: S46DR1

S: Monotube Damper

46: Piston Diameter: 46 mm

D: Gas-charged monotube damper with reservoir integrated into the housing.

R1: Adjustable rebound damping on the monotube damper. Adjustment dial above the end eye.

Technical Specifications

Length: 305 mm

Stroke: 66 mm

Rate N/mm: 100

Spring: 01091-34

The proven STX 46 Street from Öhlins is the perfect upgrade for sporty street motorcycles. This gas-charged shock absorber with a separating piston and an internal gas reservoir features a 46 mm main piston. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment as well as adjustable rebound damping.
