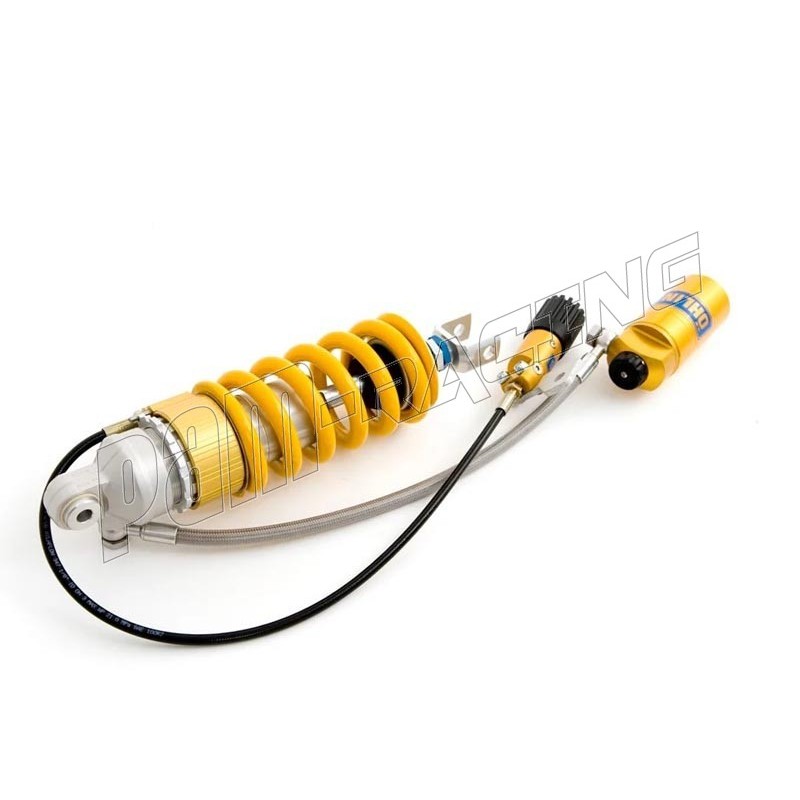

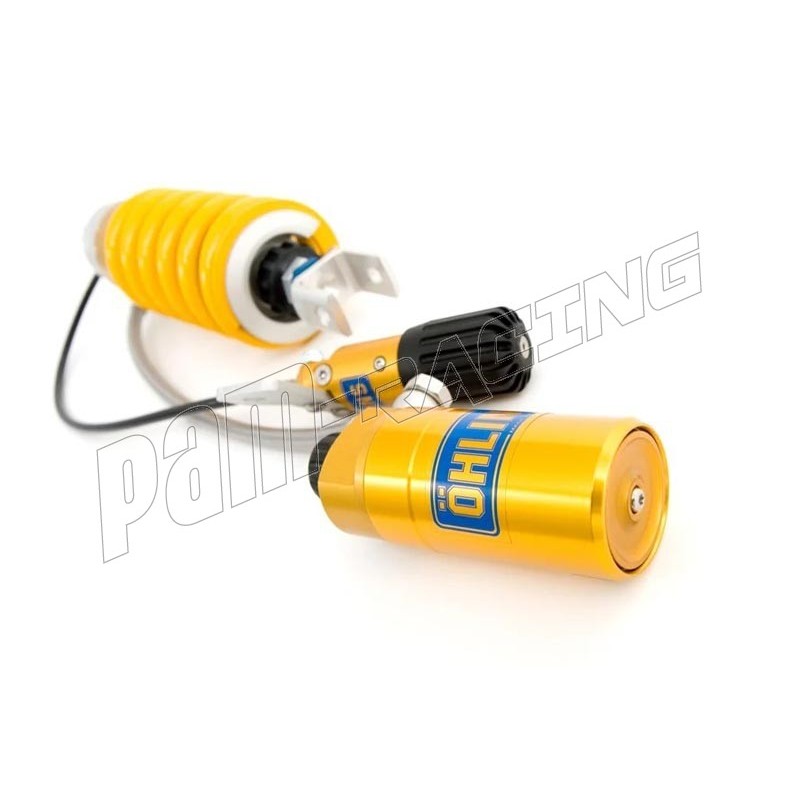

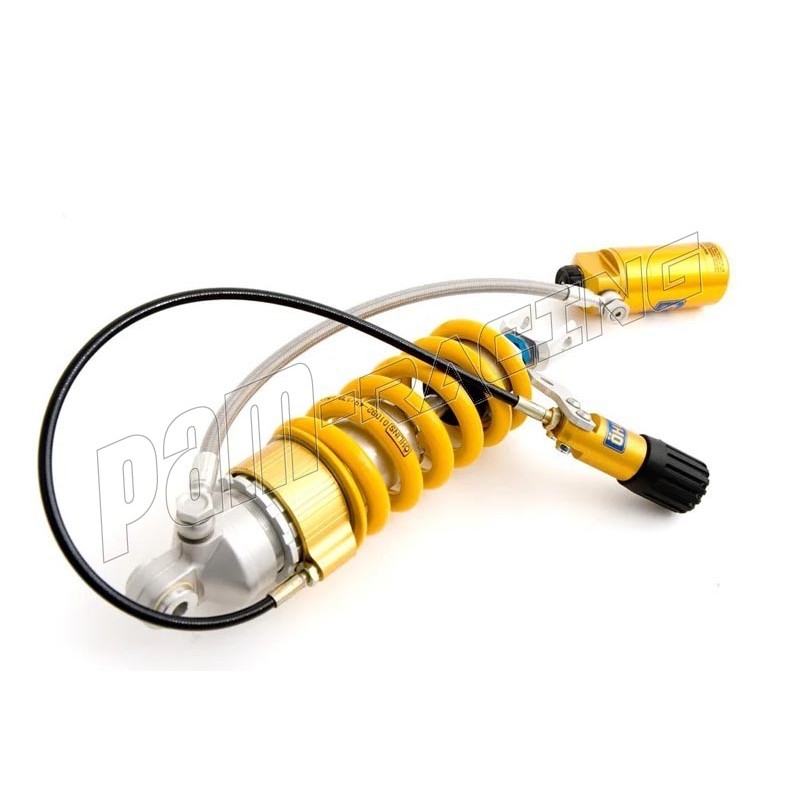

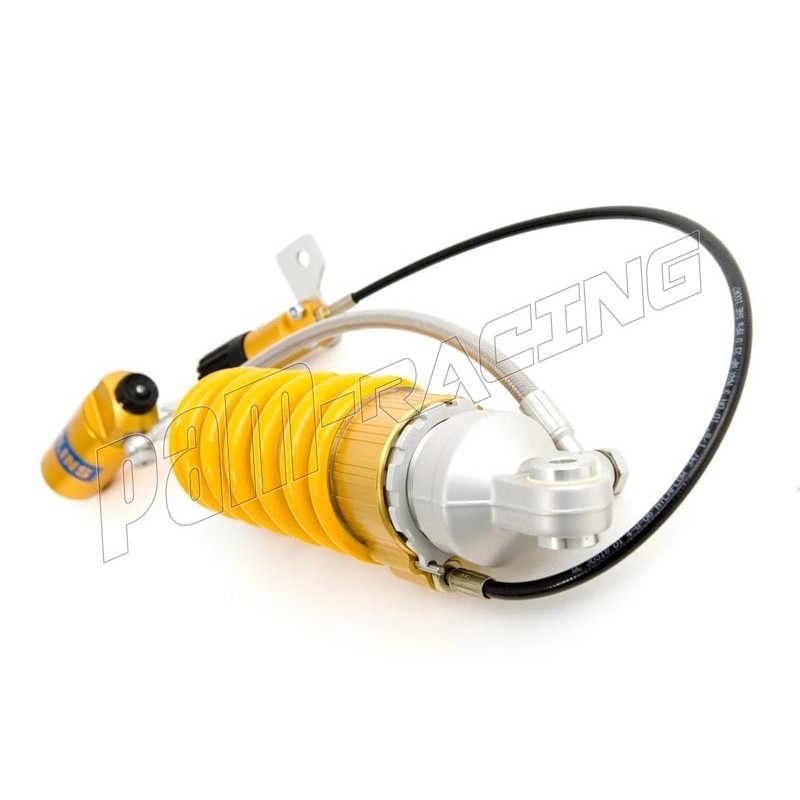

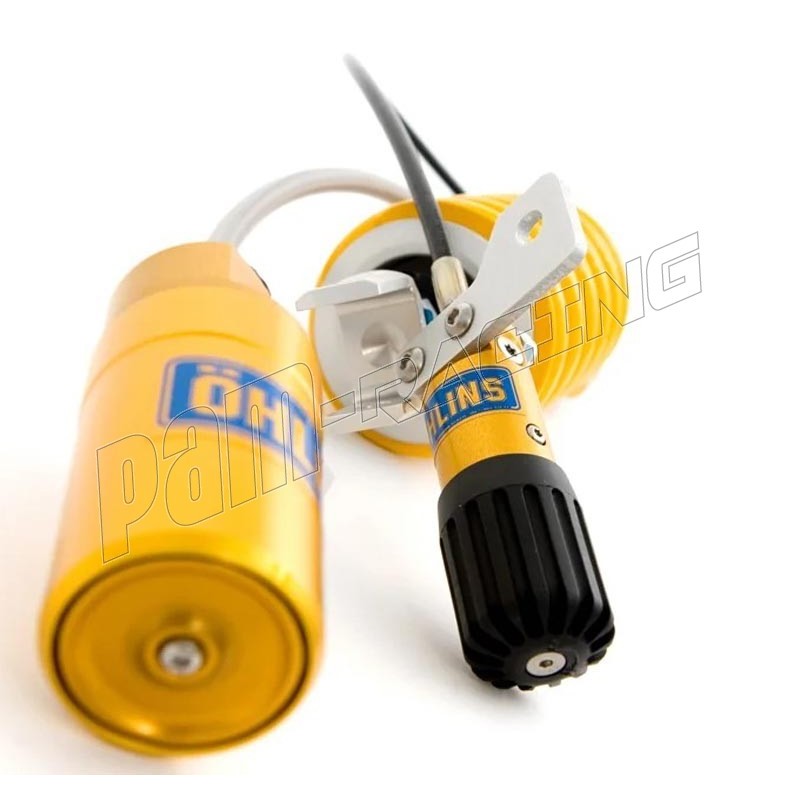

Öhlins STX 46 Street Shock Absorber MT 09 TRACER (& GT) 2018-2020

Öhlins STX 46 Street Shock Absorber MT 09 TRACER (& GT) 2018-2020

Data

Type Code: S46DR1C1S
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 329 mm
Stroke: 65 mm
Rate N/mm: 115
Mounted spring: 01092-41
Spring series: 01092
Packaging unit: pieces
