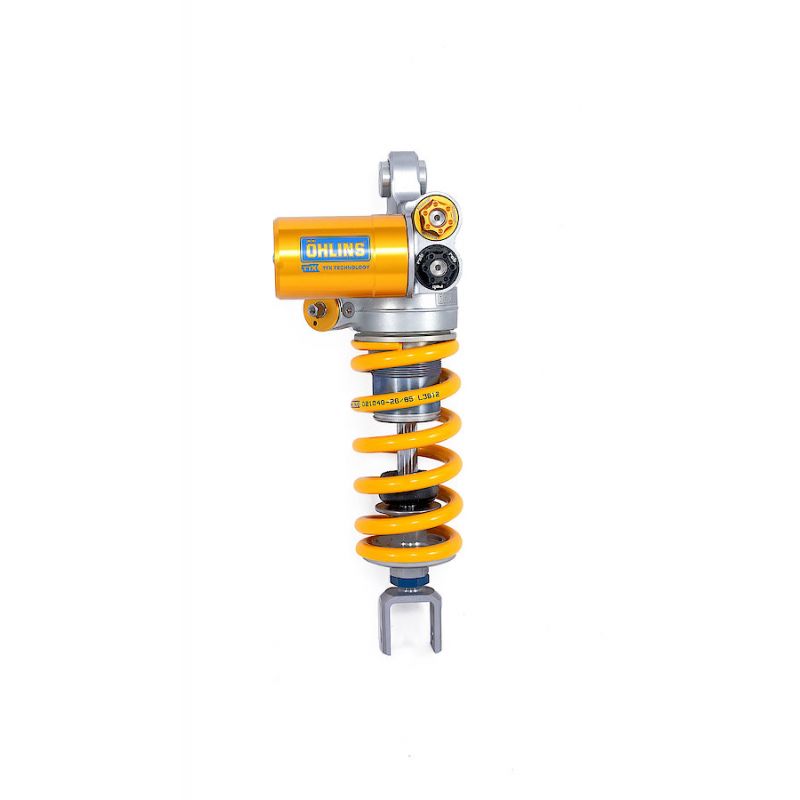

Öhlins TTX RT Shock Absorber 848 | 848 EVO | 1098 | 1198 R | 1198 | 1198 S 2008-2013

Öhlins TTX RT Shock Absorber 848 | 848 EVO | 1098 | 1198 R | 1198 | 1198 S 2008-2013

Data

Type Code: T36PR1C1B

T: Twin-tube damper

36: Piston diameter: 36 mm

P: Gas pressure damper with fixed, external reservoir (“Piggy Back”)

R1: Adjustable rebound damping. Black adjuster on TTX 36 shock absorber / silver adjuster on TTX GP shock absorber.

C1: Adjustable compression damping. Gold adjuster on TTX 36 / TTX GP shock absorber

B: Integrated hydraulic spring preload adjuster

Technical data

Length: 294.5 mm

Stroke: 60 mm

Rate N/mm: 80

Position: Rear

Spring: 21040-24

Cavitation is devastating for a shock absorber because it means the loss of damping and therefore something you definitely don't want to experience in your shock absorber. The small bubbles that form in the oil during cavitation can never support the desired damping characteristics of your shock absorber.

Traditionally designed shocks can easily fall victim to cavitation under extreme conditions due to the low pressure behind the piston.

The TTX system was designed by Öhlins development engineers to eliminate the risk of cavitation in the shock absorber. The plan worked. Thanks to the sophisticated pressure balance of the TTX technology, the risk of cavitation was eliminated from the shock absorber.

The “TT” stands for “Twin Tube”, i.e. the two-tube design, while the “X” in the designation indicates the direction of flow or the arrangement of the valves in the shock absorber.
