Öhlins FKA Cartridge Kit Adventure XT700 Ténéré 2019-2025 | Ténéré Rally Edition 2023-2024

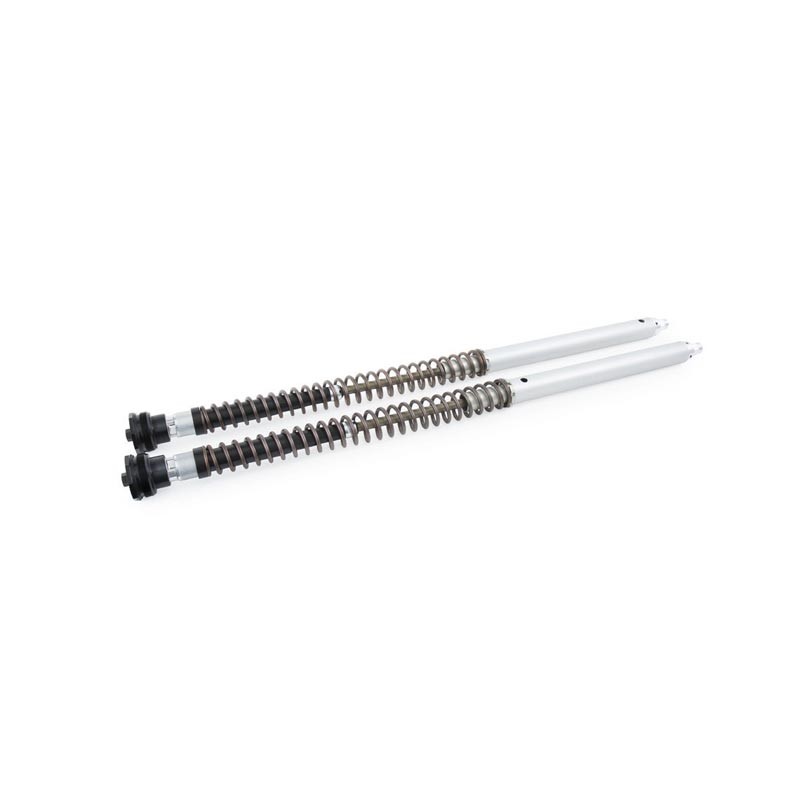

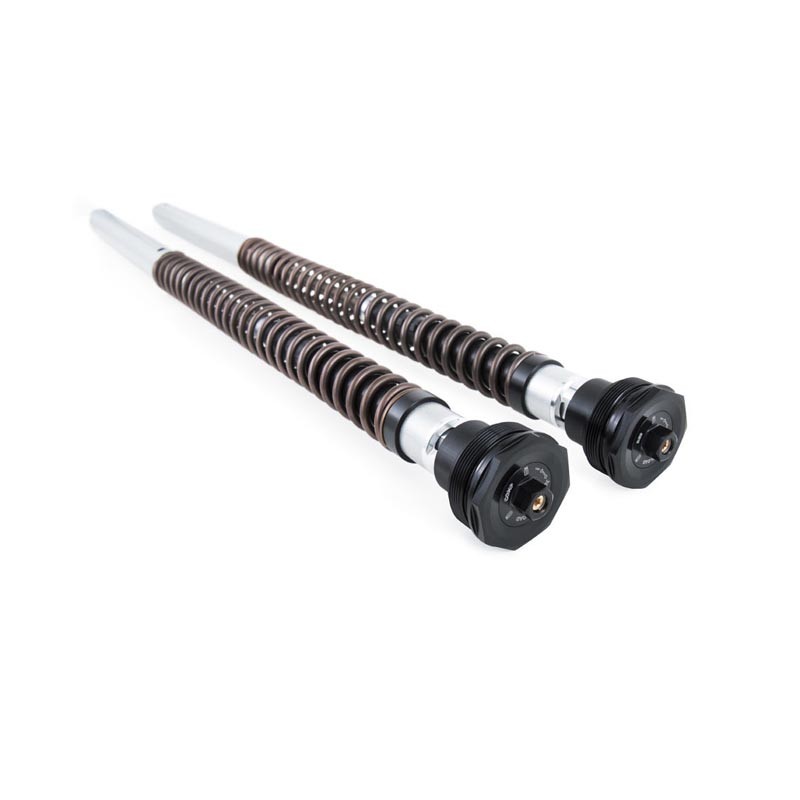

Öhlins Cartridge Kit Adventure XT700 Ténéré 2019-2025 | Ténéré Rally Edition 2023-2024

Data
Length:    923 mm
Stroke:    210 mm
Position:    front
Spring series:    08424-series
Recommended oil:    01309-01
Oil level mm:    70
Packaging unit:    pair

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included.

- Tool, pull up top-out spring M12, part no. 01765-03
- Tool, cylindertube cap, part no. 01797-07

Note
Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop.
