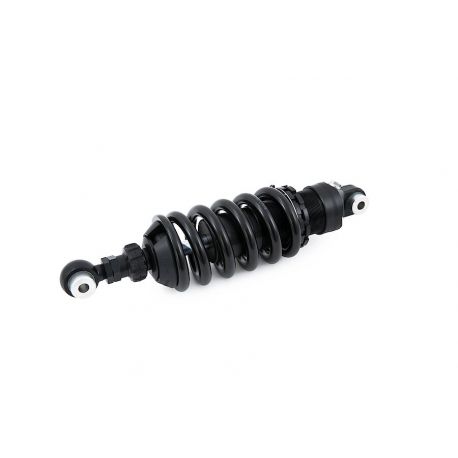

Öhlins STX 46 Blackline Shock Absorber XDiavel 2015-2020

Öhlins STX 46 Blackline Shock Absorber XDiavel 2015-2020

Data:

Type Code: S46HR1C1

S: Single tube

46: Piston diameter: 46 mm

H: Monotube high pressure gas type of shock absorber woth hose mounted external reservoir

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir

Technical data:

Lenght: 265 mm

Stroke: 61 mm

Rate N/mm: 80

Position: rear

Mounted spring: 21115-24

Packaging unit: pieces

Note:

XDiavel 2017-2020: Without parts approval (Germany)

XDiavel 2015-2016: ABE (Germany)

The Öhlins STX 46 DR1 shock absorber has been developed to offer first-class suspension performance. It fits perfectly to a wide range of custom bikes and ensures high comfort and outstanding performance.

Thanks to the elegant blackline design, you don't have to choose between comfort and control. This shock combines the proven quality of Öhlins with a stylish and timeless look.

Using this shock will significantly improve your riding experience and make riding more fun.
