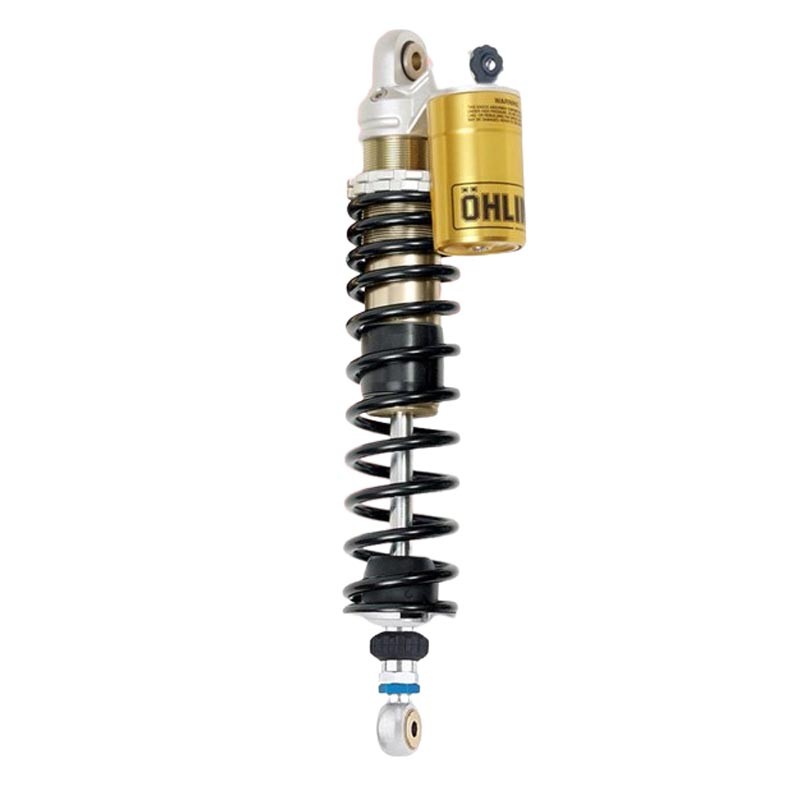

Öhlins STX 36 Twin Shock Absorber CB1300F/S 2003-2011 | ZRX1100 1997-1999

Öhlins STX 36 Twin Shock Absorber CB1300F/S 2003-2011 | ZRX1100 1997-1999

Data:

Type Code: S36PR1C1L

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external reservoir

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir

L: Adjustable length

Technical data:

Length: 365 +8/-2 mm

Stroke: 92 mm

Rate N/mm: prog. 20,3-28,6

Position: rear

Mounted spring: 00480-23

Notes: black springs
