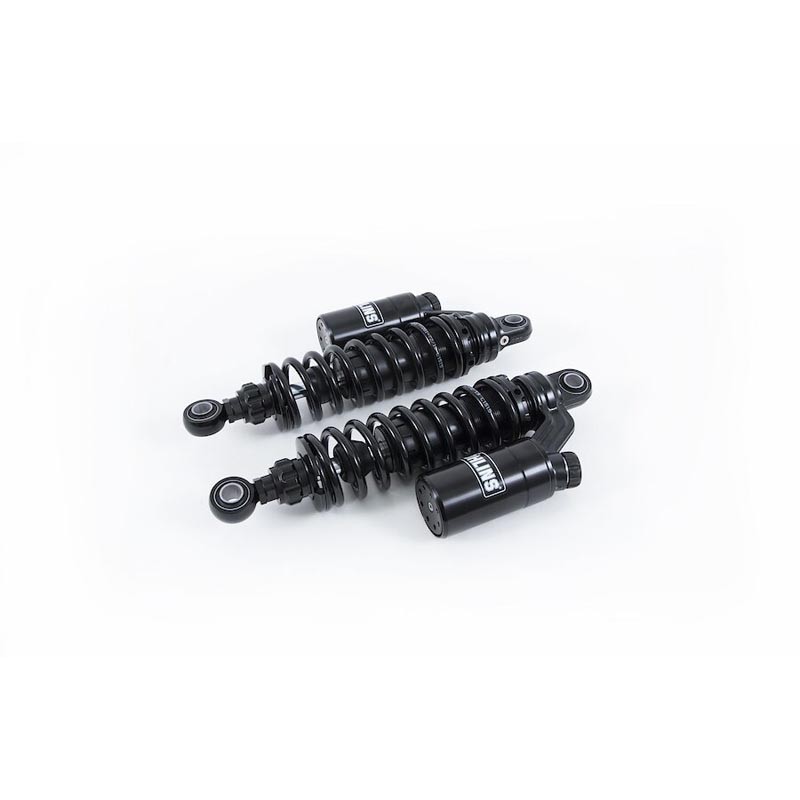

Öhlins STX 36 Twin Shock Absorber CB1300F/S 2003-2011 | ZRX1100 1997-2001 | ZRX1200/R/S 2001-2005 | ZRX1200R 2006-2007

Öhlins STX 36 Twin Shock Absorber CB1300F/S 2003-2011 | ZRX1100 1997-2001 | ZRX1200/R/S 2001-2005 | ZRX1200R 2006-2007

Data:
Type Code: S36PR1C1L
S: Single tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length: 365 +8/-2 mm
Stroke: 93 mm
Rate N/mm: prog. 20,3-28,6
Position: rear
Mounted spring: 00480-23
Packaging unit: pair
