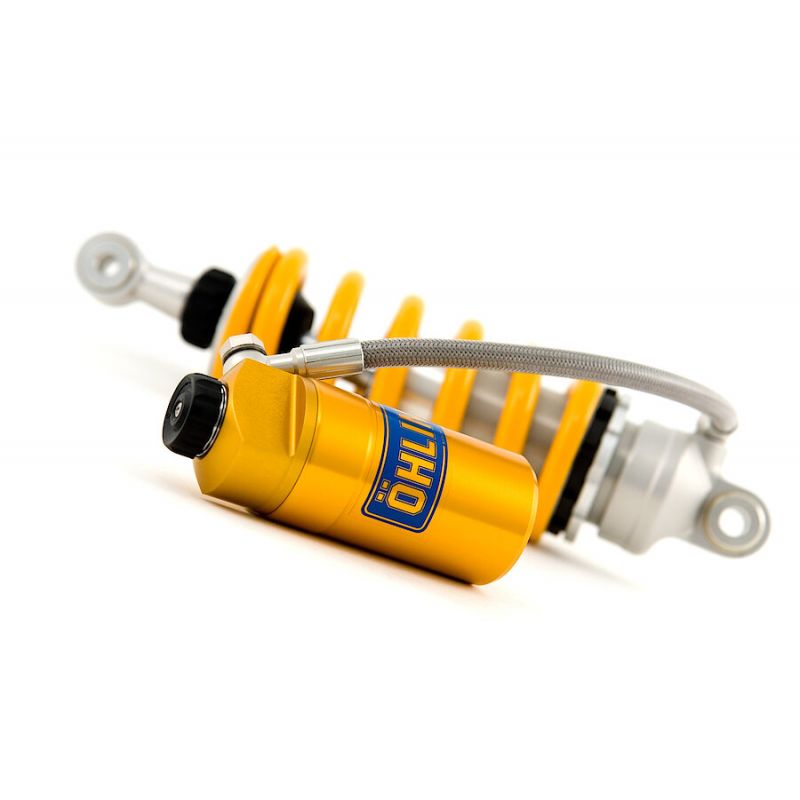

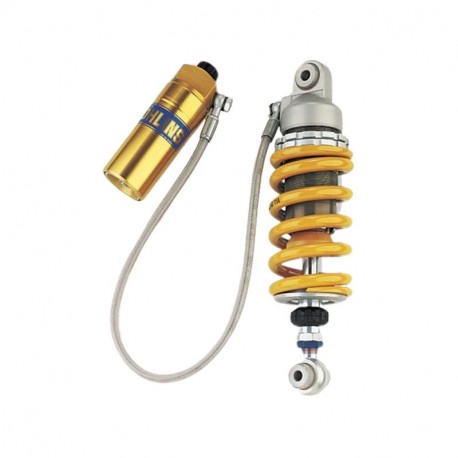

Öhlins STX 46 Supersport Shock Absorber CBR500R 2013-2018

Öhlins STX 46 Supersport Shock Absorber CBR500R 2013-2018

Data:
Type Code: S46HR1C1L
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length: 307 +8/-3 mm
Stroke: 55 mm
Rate N/mm: 110
Position: rear
Mounted spring: 61093-39
Mounting length min/max: 304/315
Packaging unit: pieces
