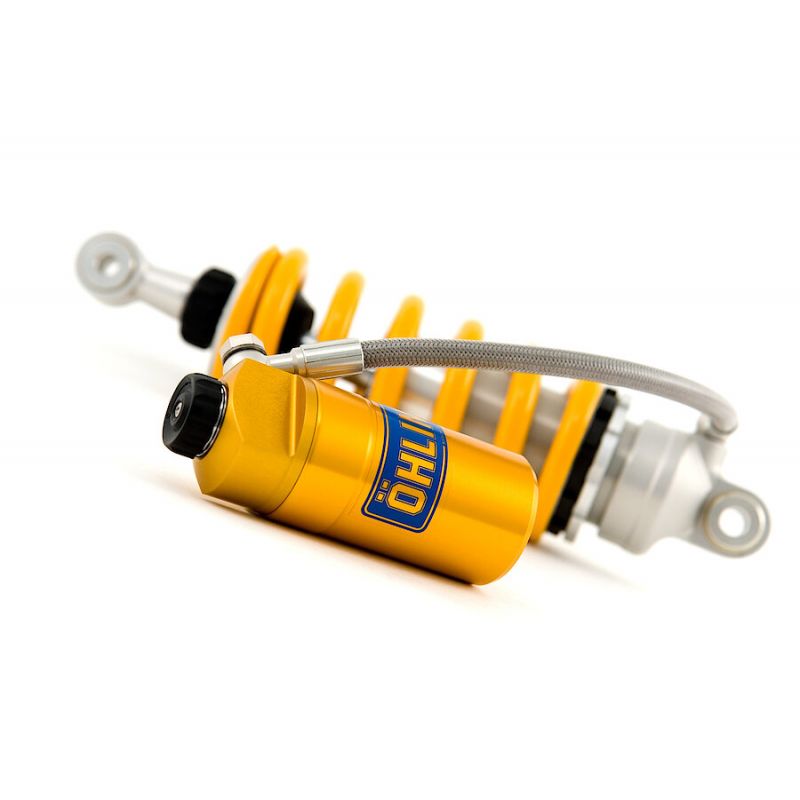

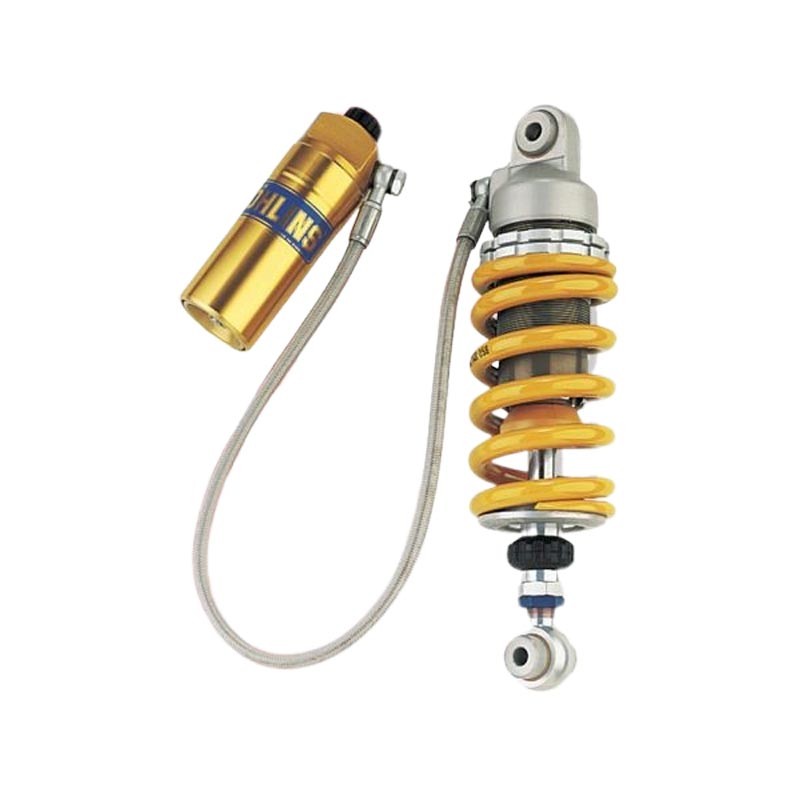

Öhlins STX 46 Supersport Shock Absorber CBR500 2019-2024

Data:
Type Code: S46HR1C1L
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L: Adjustable length

Technical data:
Length: 307 mm
Stroke: 55 mm
Rate N/mm: 110
Position: rear
Mounted spring: 61093-39
Packaging unit: pieces
Mounting length min/max: 304/315

Manufacturer:
Öhlins Europe
Gottlieb-Daimler-Straße 25
53520 Meuspath –

Germany

de_info@ohlins.com
https://www.ohlins.com/

Wählen Sie Ihr Fahrzeug aus der Liste aus, um die Liste der kompatiblen Produkte anzuzeigen.

- HONDA 500 CM3 CBR500R 2019-2021
