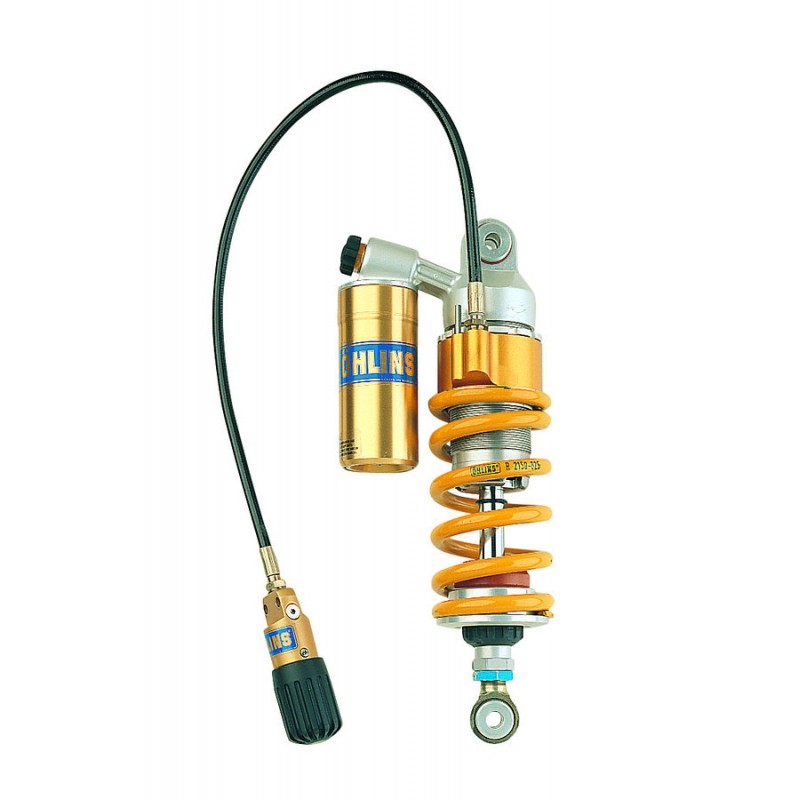

Öhlins STX 46 Supersport Shock Absorber ZX-4R/RR 2024-2025

Öhlins STX 46 Supersport Shock Absorber ZX-4R/RR 2024-2025

Data:

Type Code: S46PR1C1LS

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of gas shock absorber with external reservoir

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks

C1: Adjuster compression damping. Gold adjuster on TTX36 / TTX GP shocks

L: Adjustable length

S: Hose mounted hydraulic spring preload adjuster

Technical data:

Length: 307,5 +4/-2 mm

Stroke: 49,5 mm

Rate N/mm: 90

Position: rear

Mounted spring: 01093-29

Spring series: 01093-xx

Packaging unit: pieces
