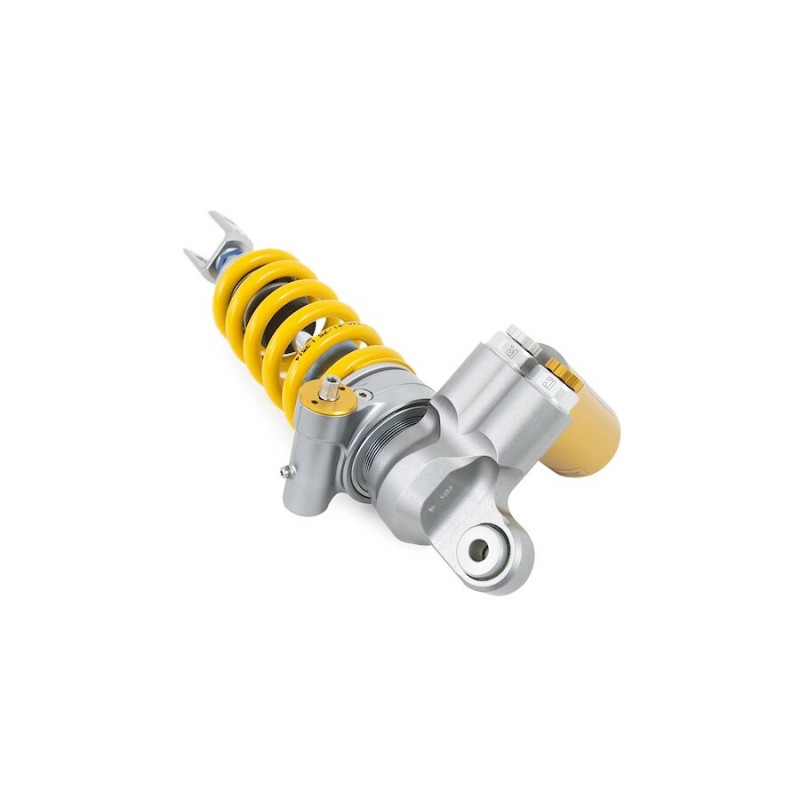

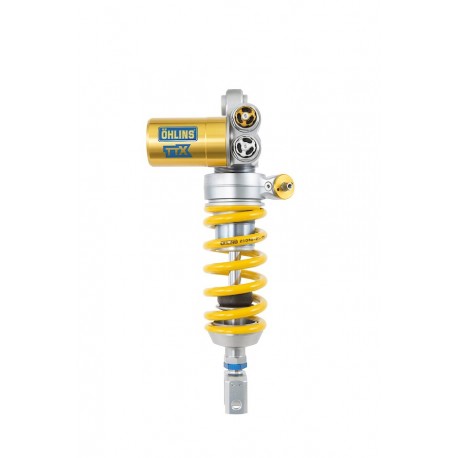

Öhlins TTX GP Shock Absorber ZX-4R/R 2024-2025

Öhlins TTX GP Shock Absorber ZX-4R/R 2024-2025

Data:

Type Code: T36PR1C1LB

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external reservoir

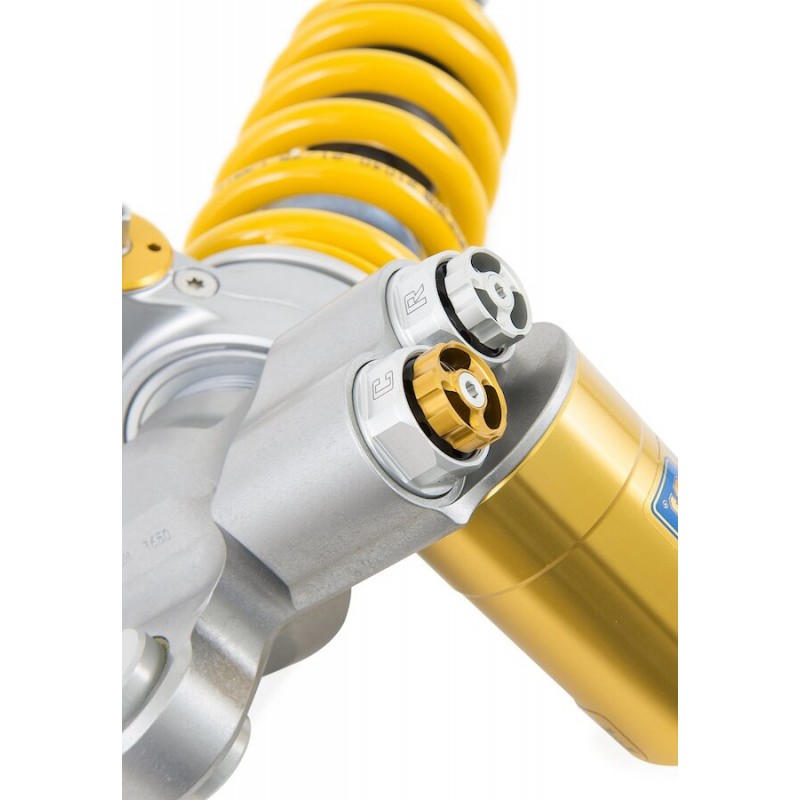

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks

L: Adjustable length

B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster

Technical data:

Length:    309mm +2/-4 mm
Stroke:    50 mm
Rate N/mm:    90 N/mm
Position:    rear
Mounted spring:    21041-29
Spring series:    21041-xx
Packaging unit:    pieces
