I2M Chrome Lite dashboard and chronometer with plug & play adapter 1098 | 1198 2007-2011

I2M Chrome Lite dashboard and chronometer with plug & play adapter 1098 | 1198 2007-2011

- This dashboard includes all the functions of your original dashboard.

It also offers an on-board GPS chronometer.

Box contents:

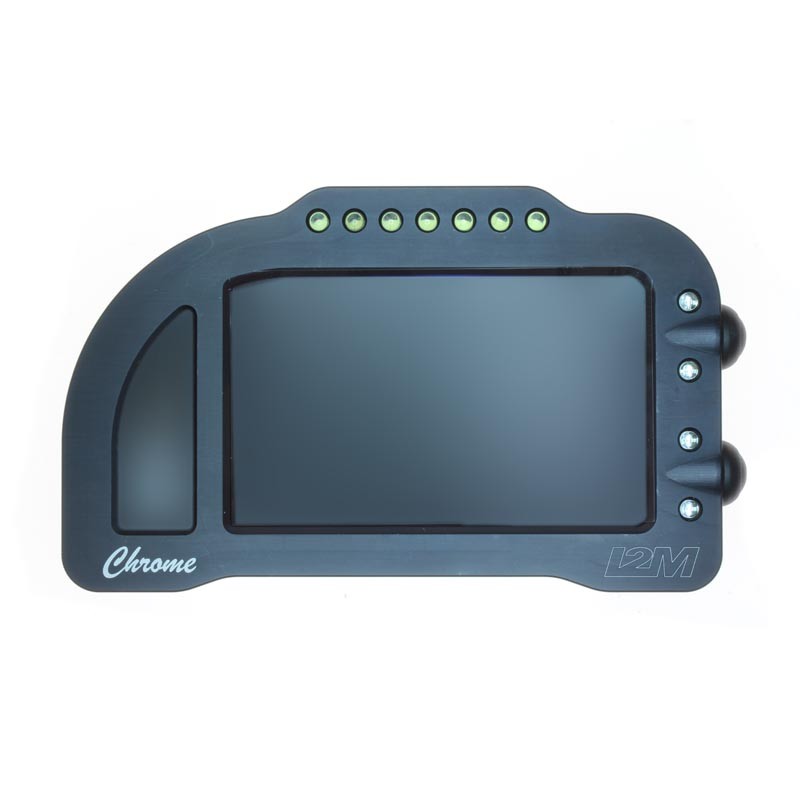

• Chrome dashboard

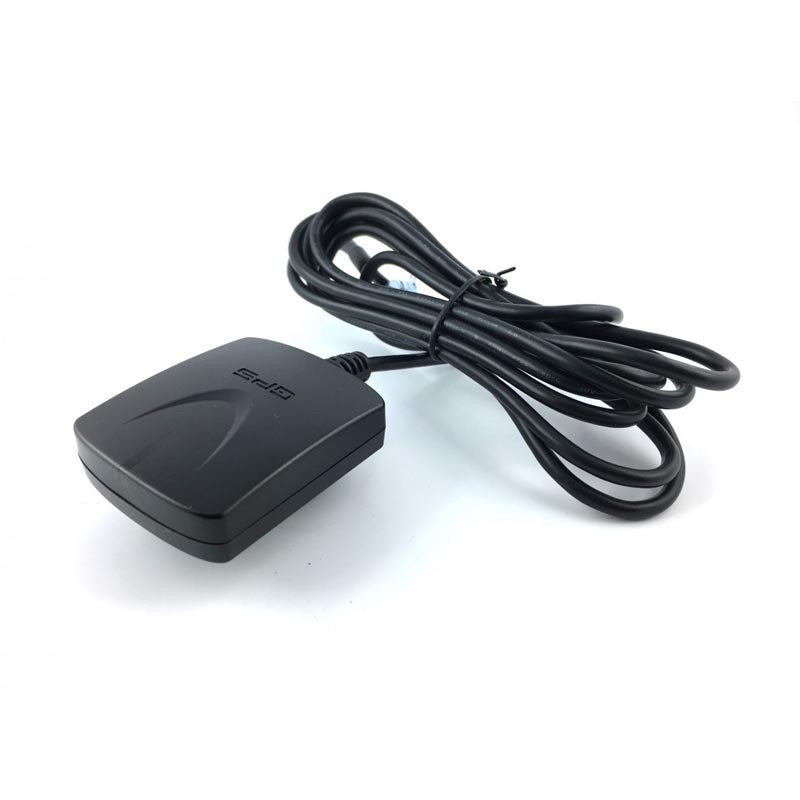

• 10 Hz GPS receiver

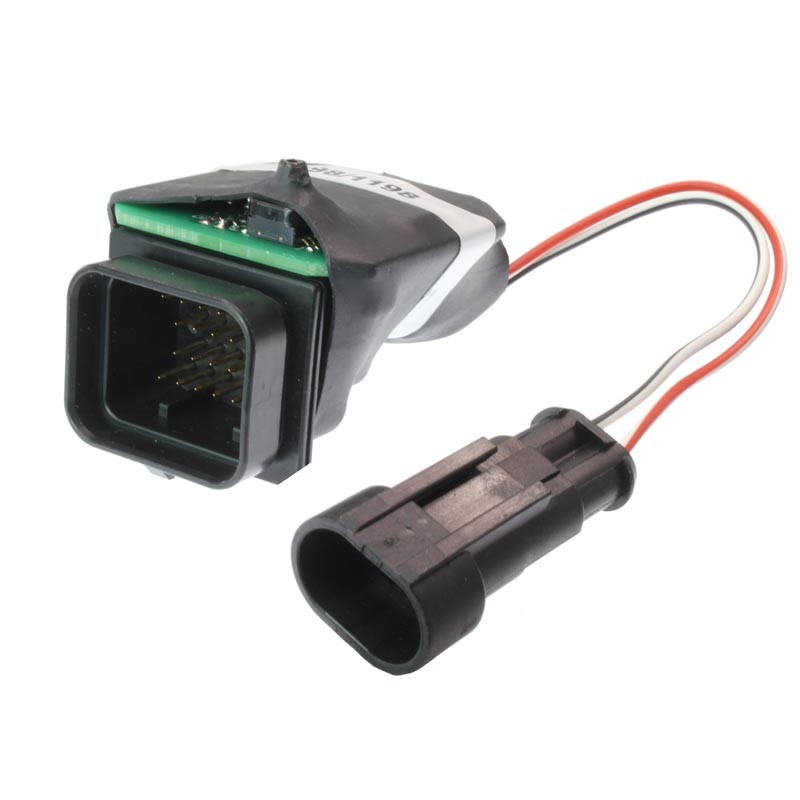

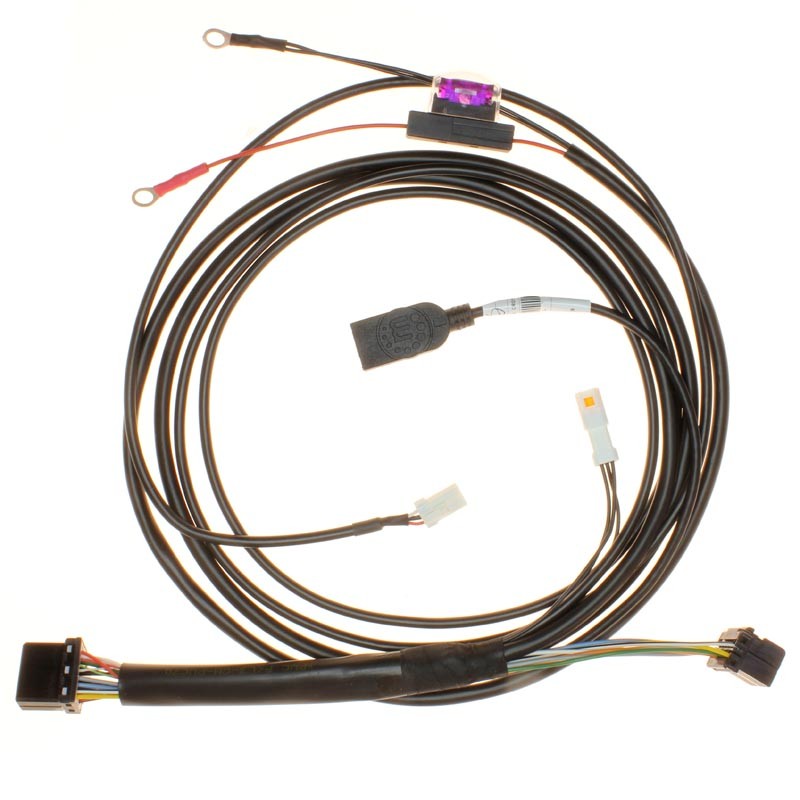

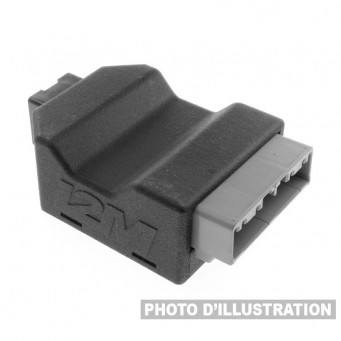

• Standard cable harness with GPS input and USB output (additional plug & play on board, if
included)

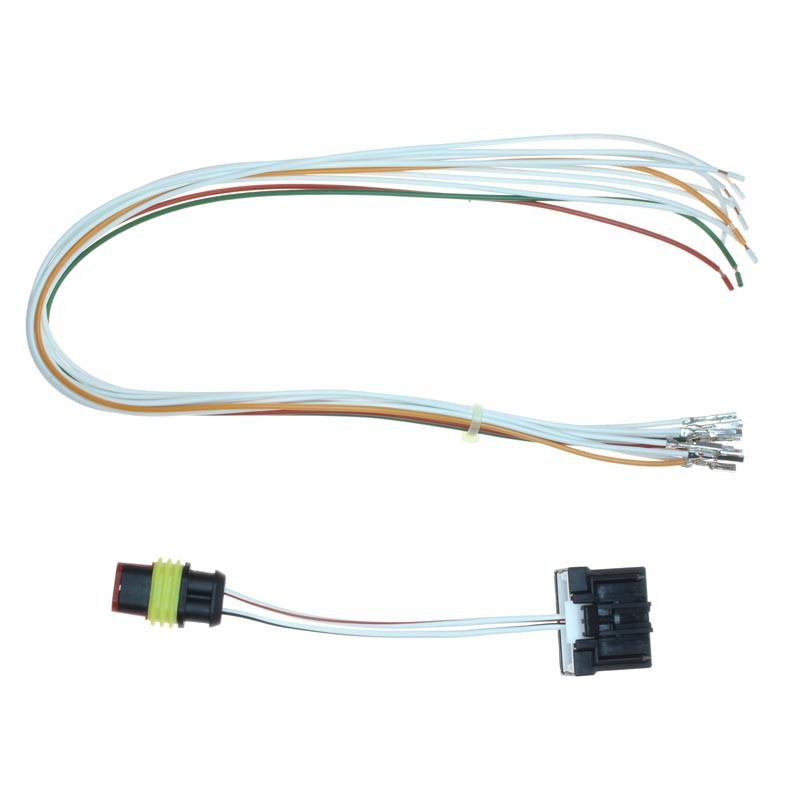

• Cables with connectors for 5V and 12V
• Rubber shell strap with moisture protection
• User manual in Italian/English.

Features:

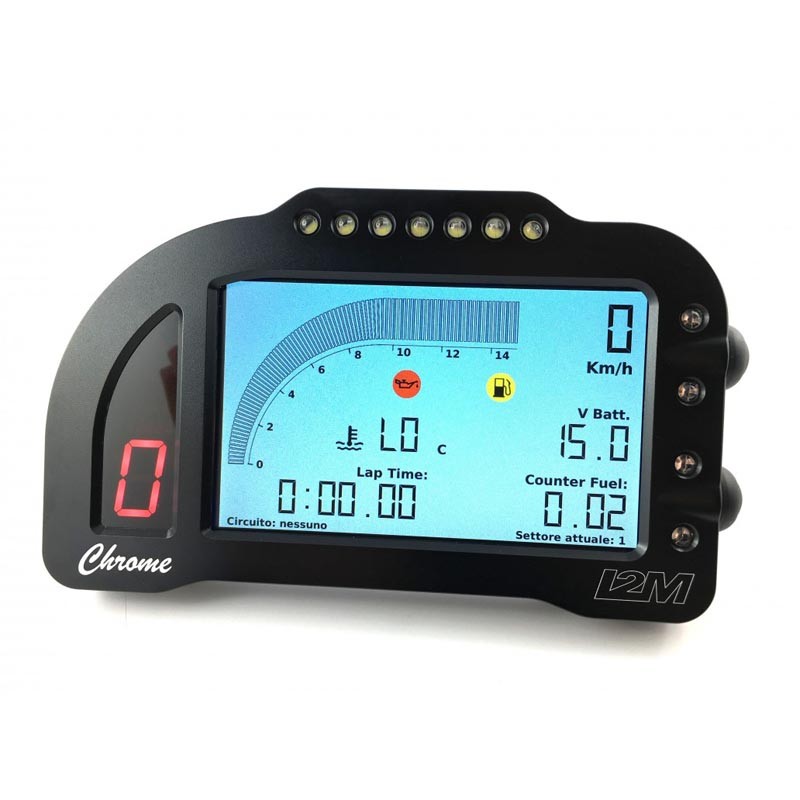

• 800x480 colour screen
• High visibility, even in direct sunlight
• 400 MHz processor with 1 GB of internal memory

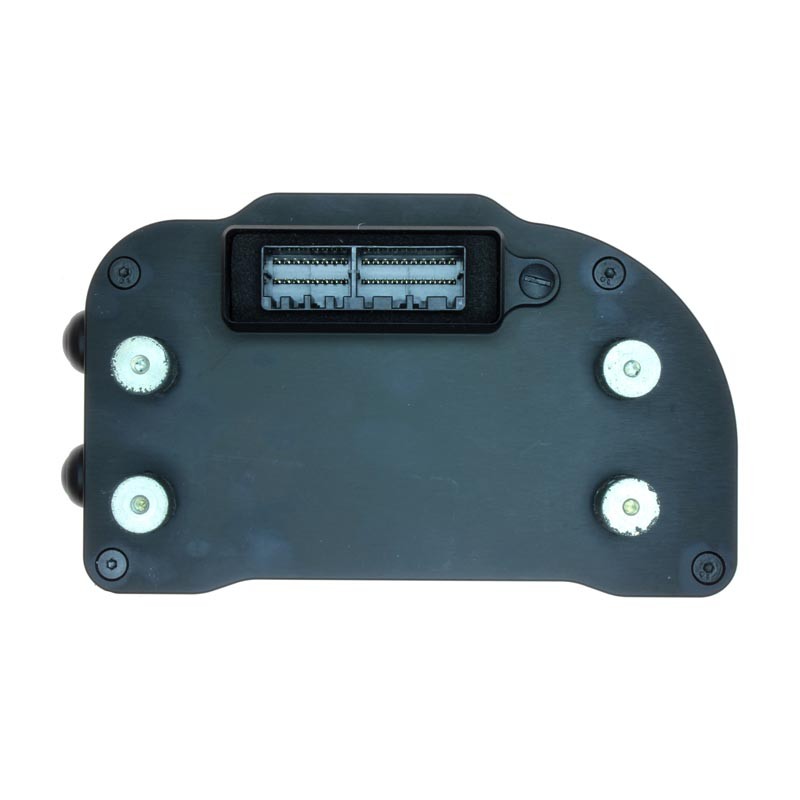

• Aluminium casing
• Fully configurable in two operating modes (ROUTE/RACING)
• Route and speed detection via 10Hz GPS receiver with 66 parallel channels
• Stopwatch function with 20 pre-stored circuits (up to 500 laps can be stored for each circuit)
• Automatic circuit detection, with three divisions
• Daily best lap and ideal lap calculations, all-time best and
• Easy to use and intuitive interface
• 12 fully configurable high-brightness LED alarms
• 8 10-bit analogue inputs
• 2 independent speed inputs
• 1 RPM input
• Separate inputs for water, fuel and oil, each with a dedicated alarm
• Speed calculation with auto-learning function
• Data download via USB flash drive
• Option to connect to a two-button remote control
• CAN BUS compatible
• 1 GB internal memory
• 3 different distance counters, two engine-time counters and one total-turns counter
• Compact design and small dimensions (172mm x 106mm x 22mm)
• Waterproof

You can record 20 circuits on your dashboard. You can retrieve all the data on your PC (time, speed, number of laps, engine speed, throttle opening, gear engaged, trajectories, etc.).
The dashboard has one configuration for road use and another for track use.

Thanks to the combination of an 800 x 480 colour display and a 400 MHz processor, Chrome is able to provide total flexibility for the designer and therefore the end user.
This new technology allows you to design a main screen suitable for road or racing use, leaving the right amount of space for each indicator.

For immediate readability, Chrome has 12 fully configurable ultra-high brightness LEDs, so it is possible to choose the preferred alarm configuration, either linked to RPM (such as the classic top bar) or, for example, to a dangerously low tyre temperature.

Chrome combines dashboard, stopwatch, acquisition and data functions. Using the menu, you can choose from 20 pre-recorded circuits (which can be modified with simple import/export functions via a USB flash drive). Up to 500 laps can be stored for each circuit, and each lap can be divided into three different parts (splits).

For each circuit, the system calculates and displays information such as the map, the best lap, the number of laps completed and the ideal knees, keeping two different historical databases for the current and previous sessions, so that the user can quickly check the trend for the day.

Chrome allows position and speed data to be acquired using a 10 Hz GPS, but also reads RPM, 8 external analogue channels front and rear, and speed. Data acquisition allows the user to record up to 1 GB of data, and the sampling rate of up to 100 Hz per channel can satisfy any requirement.
A convenient menu allows you to select the desired sessions, sorted by circuit and date, and delete or transfer them to a USB flash drive for analysis by Danas PC software, significantly reducing download time.
