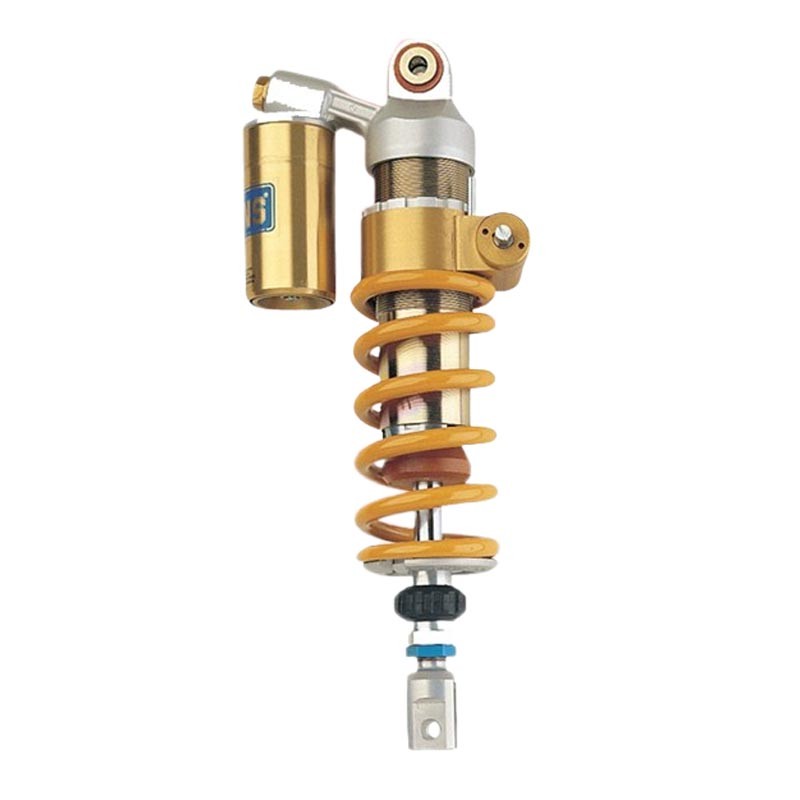

Öhlins rear shock absorber R1200 NINE-T 2021-2023

Öhlins rear shock absorber R1200 NINE-T 2021-2023

Data:

Type Code: S46PR1C1LB

S: Monotube shock absorber

46: Piston diameter: 46 mm

P: Gas pressure damper with fixed, external reservoir ("Piggy Back")

R1: Adjustable rebound damping on the monotube damper. Adjustment wheel above the end eyelet

C1: Adjustable compression damping. Adjustment wheel or Allen key on the reservoir

L: Adjustable length.

B: Integrated hydraulic spring preload adjuster.

Technical data:

Length: 368 + 7/-5 mm

Stroke: 46.5 mm

Rate N/mm: 160 N/mm

Position: Rear

Spring: 01093-64

Packaging unit: Single

The proven STX 46 Street from Öhlins is the perfect upgrade for sporty street bikes. This gas pressure shock absorber with separating piston and an internal gas reservoir has a main piston with a diameter of 46 mm. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment and adjustable rebound damping.
