Öhlins STX 46 Blackline shock absorber R1200 NINE-T 2021-2023

Öhlins STX 46 Blackline shock absorber R1200 NINE-T 2021-2023

Data:

Type Code: S46PR1C1LB

S: Monotube shock absorber

46: Piston diameter: 46 mm

P: Gas pressure damper with fixed, external reservoir

R1: Adjustable rebound damping on the monotube damper. Adjustment wheel above the end eyelet.

C1: Adjustable compression damping. Adjustment wheel or Allen key on the reservoir

L: Adjustable length

B: Integrated hydraulic spring preload adjuster.

Technical data:

Length: 368 +7/-5

Stroke: 46.5 mm

Rate N/mm: 160

Position: Rear

Spring: 21102-64

Packaging unit: Single

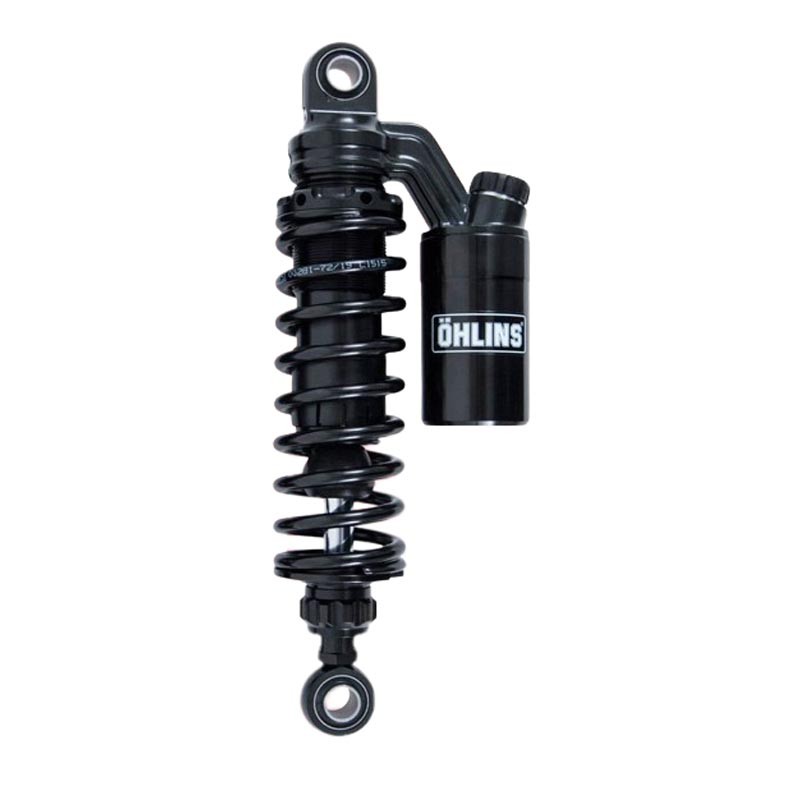

The shock absorber has a large 46 mm main piston and an external reservoir. The advantage of an external reservoir is that it holds a larger volume of oil and keeps the shock cooler in extreme conditions. This configuration also offers additional adjustment options.

Thanks to the adjustable compression and rebound damping, you can optimally adapt the shock absorber to your riding habits. The spring preload can be adjusted via the integrated preload regulator to compensate for weight changes. The shock absorber is also equipped with length adjustment, which allows changes to the ride height without affecting the suspension travel.
