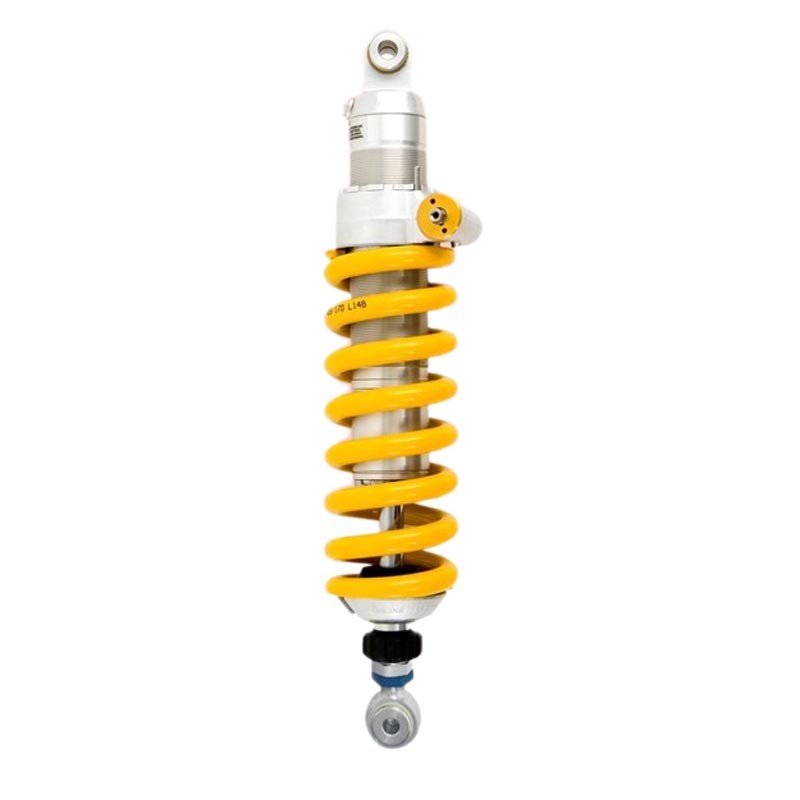

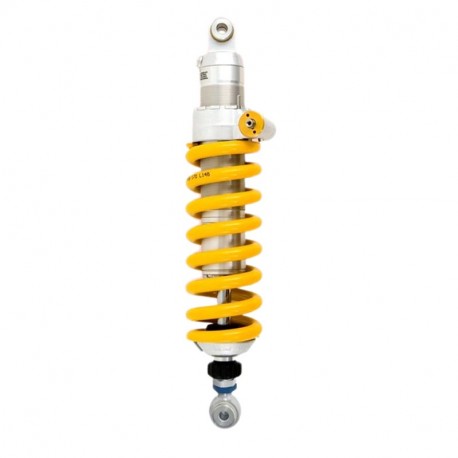

Öhlins STX 46 Street shock absorber R1200R NINE-T 2021-2022 | R1200 NINE-T Pure 2021-2023

Öhlins STX 46 Street shock absorber R1200R NINE-T 2021-2022 | R1200 NINE-T Pure 2021-2023

Data:

Type Code: S46DR1LB

S: monotube shock absorber

46: Piston diameter: 46 mm

D: Gas pressure monotube damper with reservoir integrated in the housing.

R1: Adjustable rebound damping on monotube damper. Adjustment wheel above the end eyelet.

L: Adjustable length.

Technical data:

Length: 368 +10/-0 mm

Stroke: 46 mm

Position: Rear

Spring: 01093-64

The STX46 Street shock absorber for BMW R nineT (2021-2023) and R nineT Pure (2021-2023) has a large 46 mm main piston and is available with an internal gas reservoir in the main shock absorber body or an external reservoir mounted by hose or piggyback.

Thanks to the adjustable damping, you can customize the shock absorber to your needs and even mount a hydraulic spring preload to change the position of your bike. Depending on the application, the shock absorber has a mechanical or hydraulic preload adjustment as well as adjustable rebound and compression damping.
